5/2011
4-48
Phaser 4600/4620 Printer Service Manual
REP 7.34
Revision - Xerox Internal Use Only
Repairs
REP 7.34 Right Side Frame
Parts List on PL 7.15 Item 6
Removal
WARNING
Use safe handling procedures when removing the module. Refer to GP 15. The module
is heavy.
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the option feeder from the printer, GP 15.
2. Remove the Tray.
3. Remove the Front Cover, REP 7.24.
4. Remove the Right Cover, REP 7.25.
5. Remove the Rear Cover, REP 7.27.
6. Disconnect CN6 and CN14 from the Feeder Board.

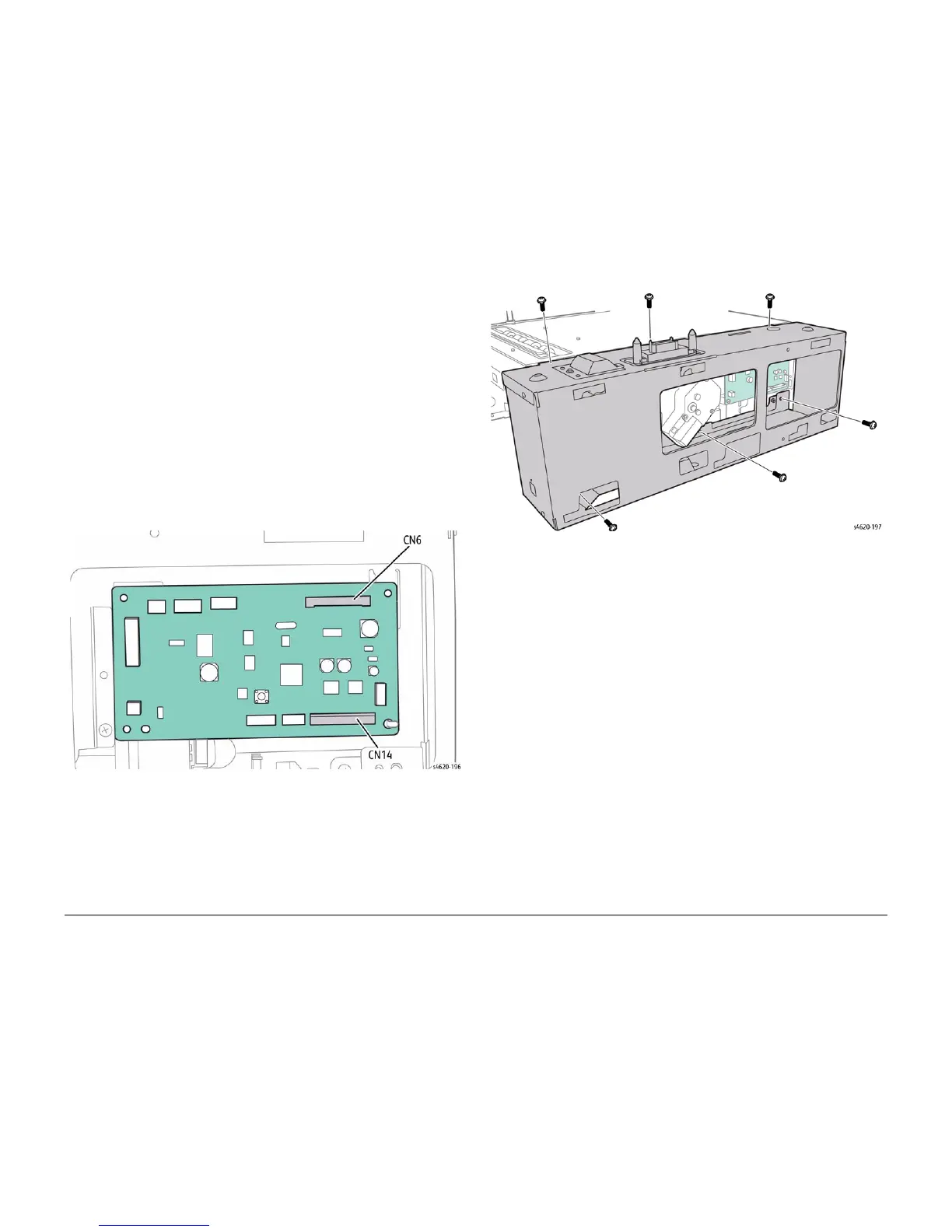

Figure 1 Disconnect the Upper and Lower Option Harness
7. Remove 7 screws (metal) that secure the left side frame to the chassis, Figure 2.
Figure 2 Remove the right side frame
To Next Page
