Xerox Phaser 4620 - Parts Lists; PL 11.20 Mailbox Drive Belts

5/2011
5-33
Phaser 4600/4620 Printer Service Manual
PL 11.20
Parts Lists
Revision - Xerox Internal Use Only

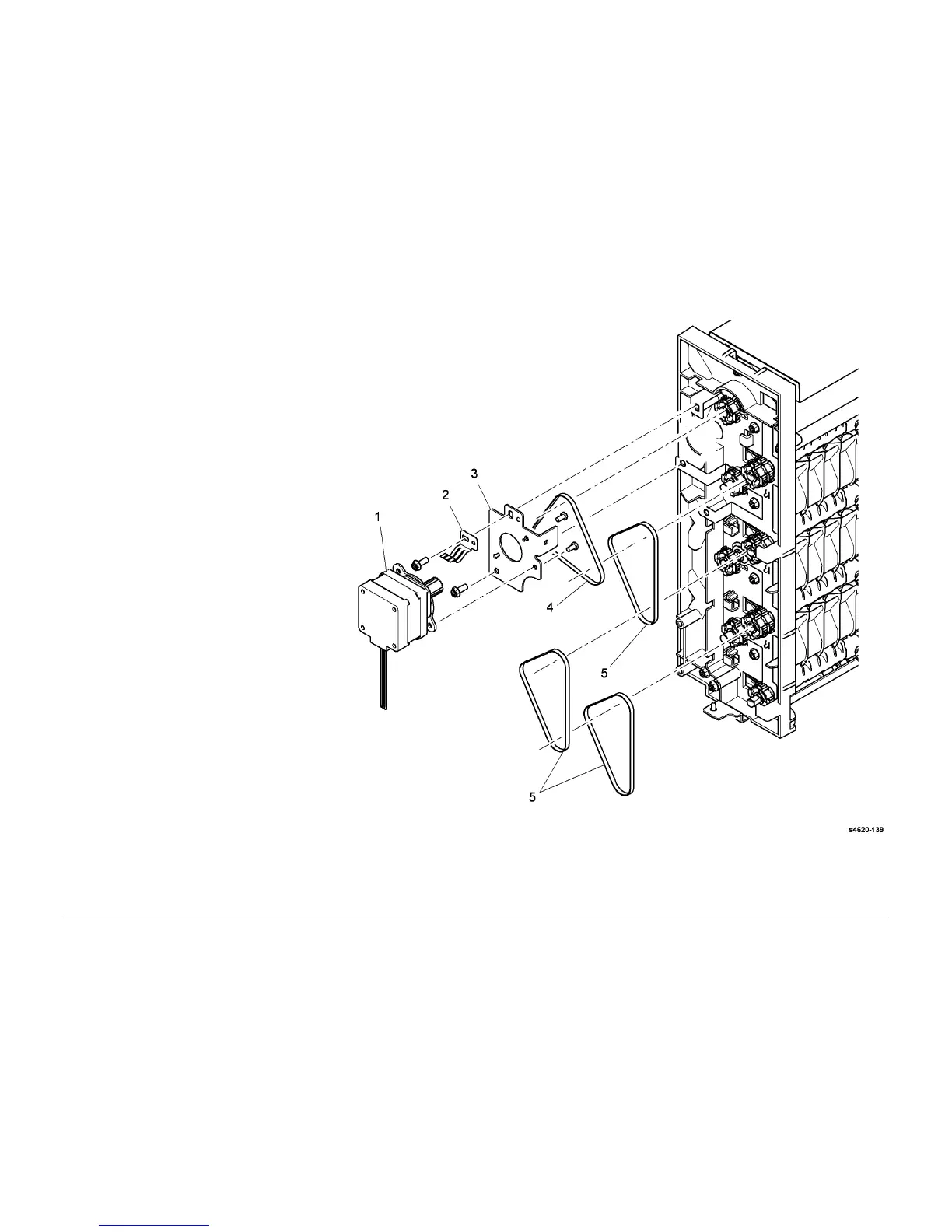

PL 11.20 Mailbox Drive Belts
Item Part Description
1 127N07670 Transport motor (MOT12-120)
(REP 11.14)
2 – Grounding strip (Not Spared)
3 – Motor bracket (Not Spared)
4 023N01282 Primary drive belt (REP 11.6)
5 023N01281 Drive belt (REP 11.6)
