Xerox Phaser 4620 User Manual

5/2011
5-12
Phaser 4600/4620 Printer Service Manual
PL 7.25
Revision - Xerox Internal Use Only
Parts Lists

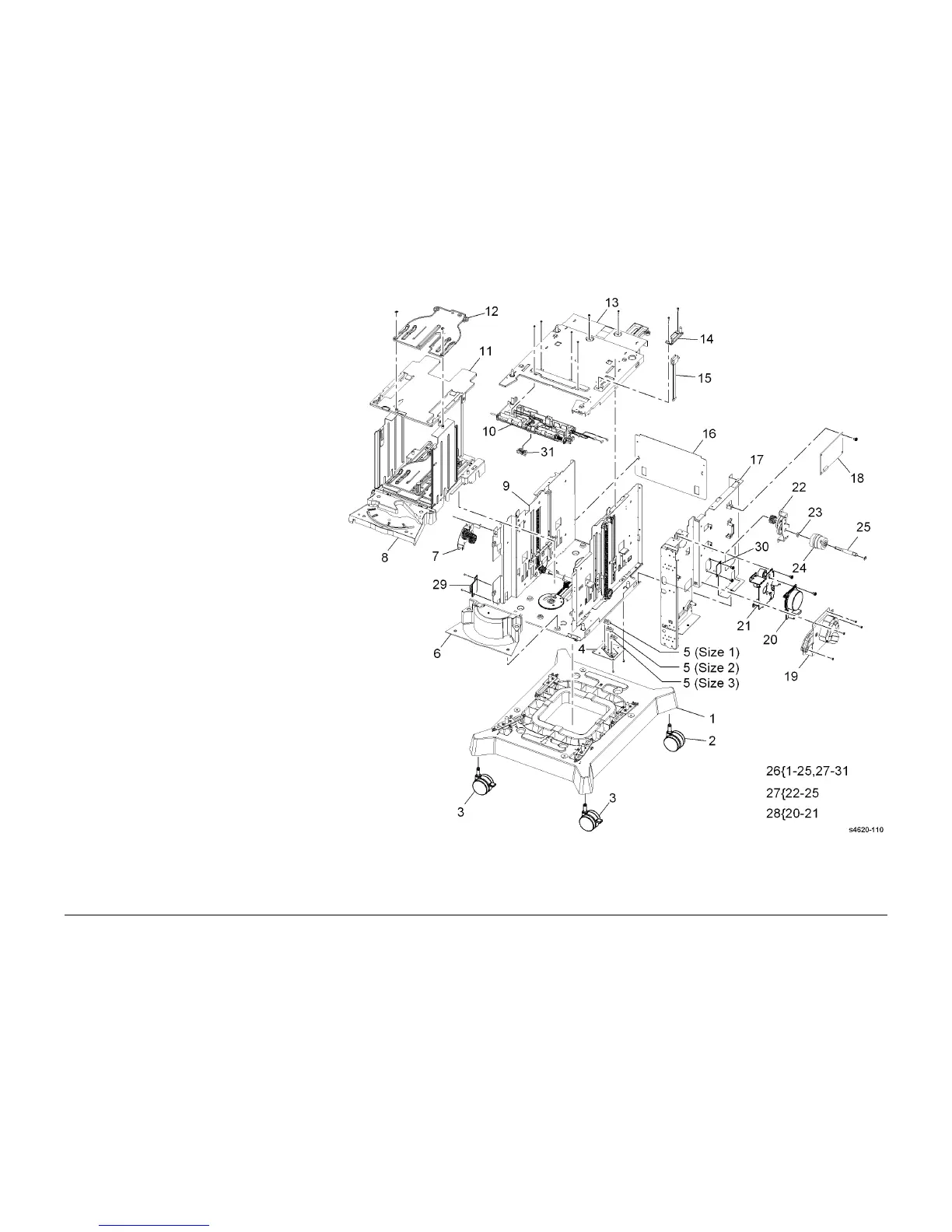

PL 7.25 HCF Assembly
Item Part Description
1 – Base unit (P/O PL 7.25 Item 26)
2 017N00295 Caster (REP 7.41)
3 017N00294 Locking caster
4 – Sensor bracket (P/O PL 7.25 Item
26)
5 110K14300 Size 1 sensor / Size 2 sensor / Size
3 sensor (see NOTE)
6 – Safety cover (P/O PL 7.25 Item 26)
7 007N01669 Reduction gear assembly (REP
7.42)
8 – Lift plate housing (P/O PL 7.25 Item
26)
9 – Left side plate (P/O PL 7.25 Item
26)
10 022N02481 Paper feeder
11 – Lift plate (lower) (P/O PL 7.25 Item
26)
12 – Lift plate (upper) (P/O PL 7.25 Item
26)
13 – Top plate (P/O PL 7.25 Item 26)
(REP 7.49)
14 – Harness mount (P/O PL 7.25 Item
26)
15 – Harness (P/O PL 7.25 Item 26)
16 – Rear plate (P/O PL 7.25 Item 26)
17 – Right side plate (P/O PL 7.25 Item
26)
18 140N63469 HCF control board (REP 7.44)
19 127N07669 Lift motor (REP 7.45) (see NOTE)
20 127N07588 Feed motor (REP 7.48) (see
NOTE)
21 – Feed motor gear bracket (P/O PL
7.25 Item 28)
22 – Clutch bracket assembly (P/O PL
7.25 Item 27)
23 – Bearing (P/O PL 7.25 Item 27)
24 121N01206 Feed clutch (REP 7.46) (see
NOTE)
25 – Clutch shaft (P/O PL 7.25 Item 27)
26 059K77920 HCF assembly
27 121N01205 Clutch assembly
28 007N01667 Feed drive assembly (REP 7.47)
29 110N01452 Front door interlock switch (REP
7.43) (see NOTE)
30 140N63395 Jumper board
31 – Feed sensor (P/O ) (see NOTE)
NOTE: The component control codes are dependent on the
machine configuration.

Xerox Phaser 4620 Specifications

General

Operating temperature (T-T)	50 - 90 °F
Operating relative humidity (H-H)	20 - 80 %
Color	No
I/O ports	10/100/1000 BaseT Ethernet, USB 2.0
Depth (min)	541 mm
Height (min)	420 mm
Minimum width	476 mm
Minimum weight	34.6 kg
Package length	698.49 mm
Print technology	Laser printing
Mac compatibility	Yes
Security features	Audit log, HTTPS, Image overwrite security, IP filtering, IPSec, Network authentication, SNMPv3, 802.1x
Storage drive type	Optional
Print memory (standard)	256 MB
Power consumption (active)	900 W
Minimum storage drive space	160 GB
Power consumption (standby)	93 W
Power consumption (PowerSave)	10 W
Storage media	HDD
Maximum internal memory	768 MB
Sound power level (standby)	39 dB
PCL fonts	93
Certification	Class 1 Laser Product, CE Marked, EMC Directive 89/336/EEC, EN 55022 Class B, EN 55024, FCC Part 15, Class B, Low Voltage Directive 73/23/EEC, RoHS Directive 2002/95/EC
Country of origin	China
Maximum duty cycle	275000 pages per month
Number of PostScript fonts	136
Number of print cartridges	1
Total input capacity	550 sheets
Total output capacity	500 sheets
Maximum input capacity	2000 sheets
Multi-Purpose tray input capacity	100 sheets
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7.8 s
Print speed (black, normal quality, A4/US Letter)	65 ppm
Display	LCD
Package weight	40200 g
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Card stock, Labels, Pre-Printed, Recycled paper, Transparencies
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Export Control Classification Number (ECCN)	EAR99

Weight and Dimensions

Width	627.37 mm
Height	685.79 mm
Dimensions (WxDxH)	476 x 420 x 541 mm
