Xerox Phaser 4620 - PL 11.15 Mailbox Control Board

5/2011
5-32
Phaser 4600/4620 Printer Service Manual
PL 11.15
Revision - Xerox Internal Use Only
Parts Lists

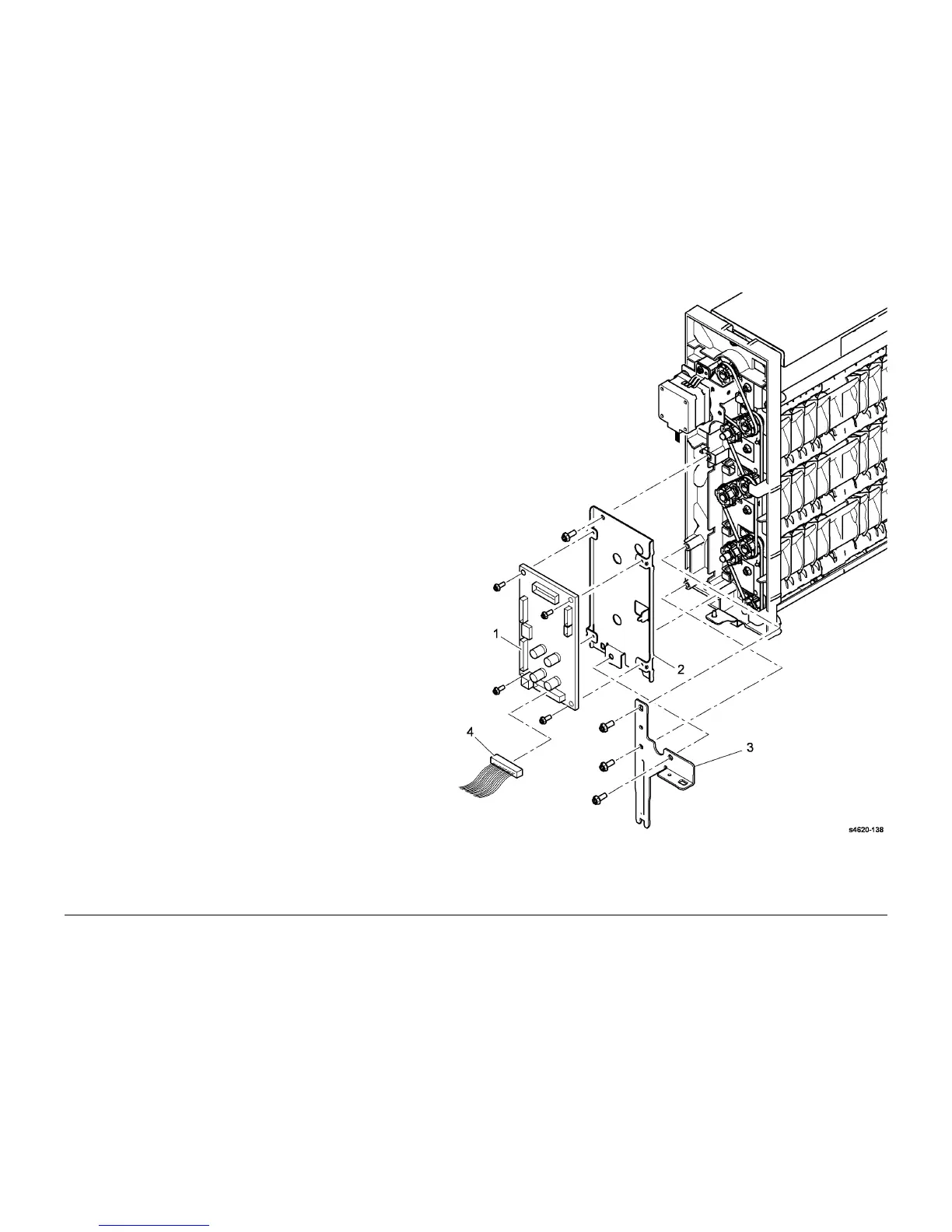

PL 11.15 Mailbox Control Board
Item Part Description
1 140N63470 Control board (REP 11.5)
2 – Control board bracket (Not Spared)
3 – Mounting bracket (Not Spared)
4 – Mailbox option harness (Not
Spared) (REP 11.11)
