5/2011
4-43
Phaser 4600/4620 Printer Service Manual
REP 7.28, REP 7.29
Repairs
Revision - Xerox Internal Use Only
REP 7.28 Feeder Board
Parts List on PL 8.30 Item 7
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Tray.
2. Remove the Right Cover, REP 7.25.
3. Disconnect 8 connections and remove 3 screws (metal) that secure the Feeder Board,
Figure 1.

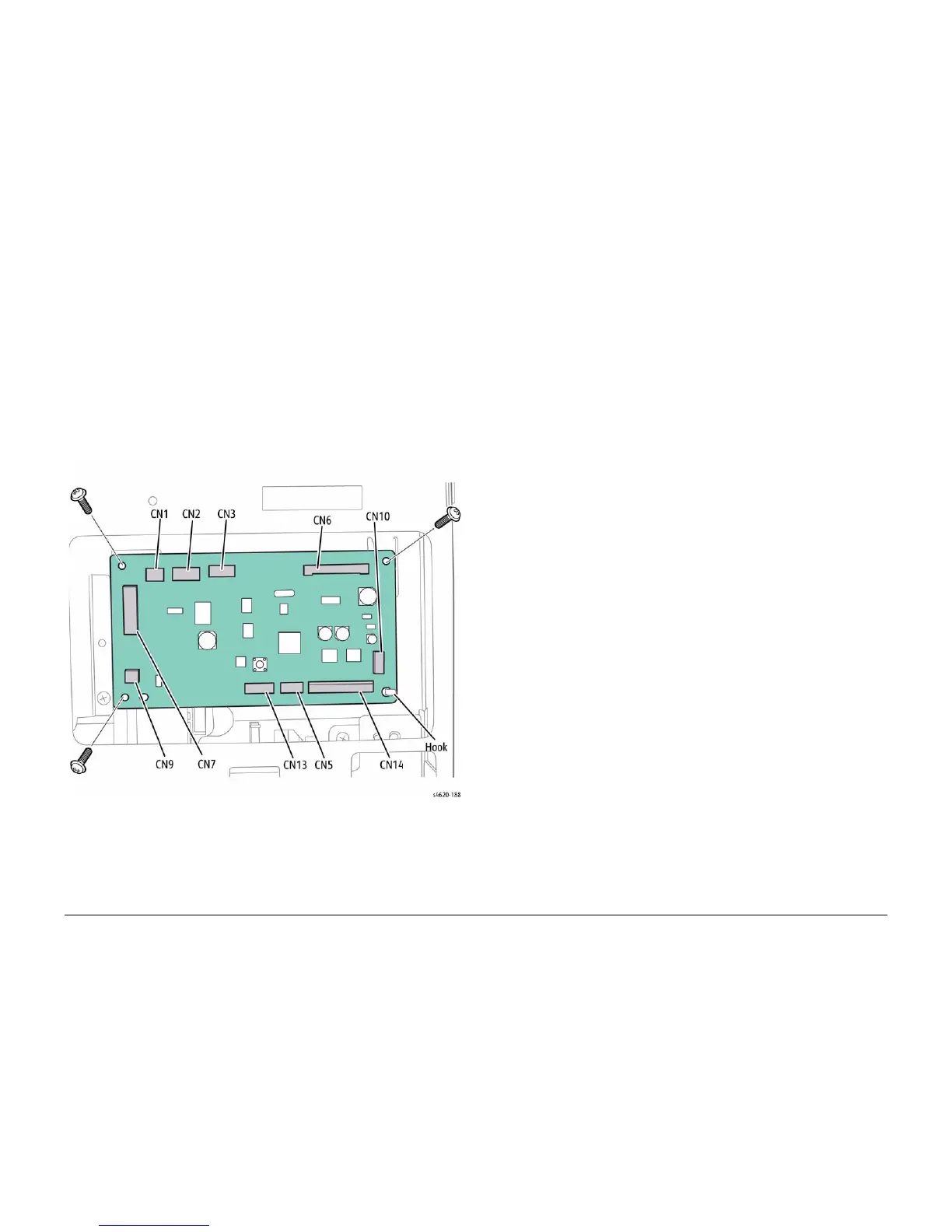

Figure 1 Remove the Feeder Board
REP 7.29 Feeder Lift Motor
Parts List on PL 8.35 Item 1
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Tray.
2. Remove the Right Cover, REP 7.25.
3. Disconnect P/J83 from the Lift Motor.
4. Remove 4 screws (metal) that secure the Lift Motor to the chassis, Figure 1.
To Next Page
