5/2011
4-27
Phaser 4600/4620 Printer Service Manual
REP 7.3
Repairs
Revision - Xerox Internal Use Only

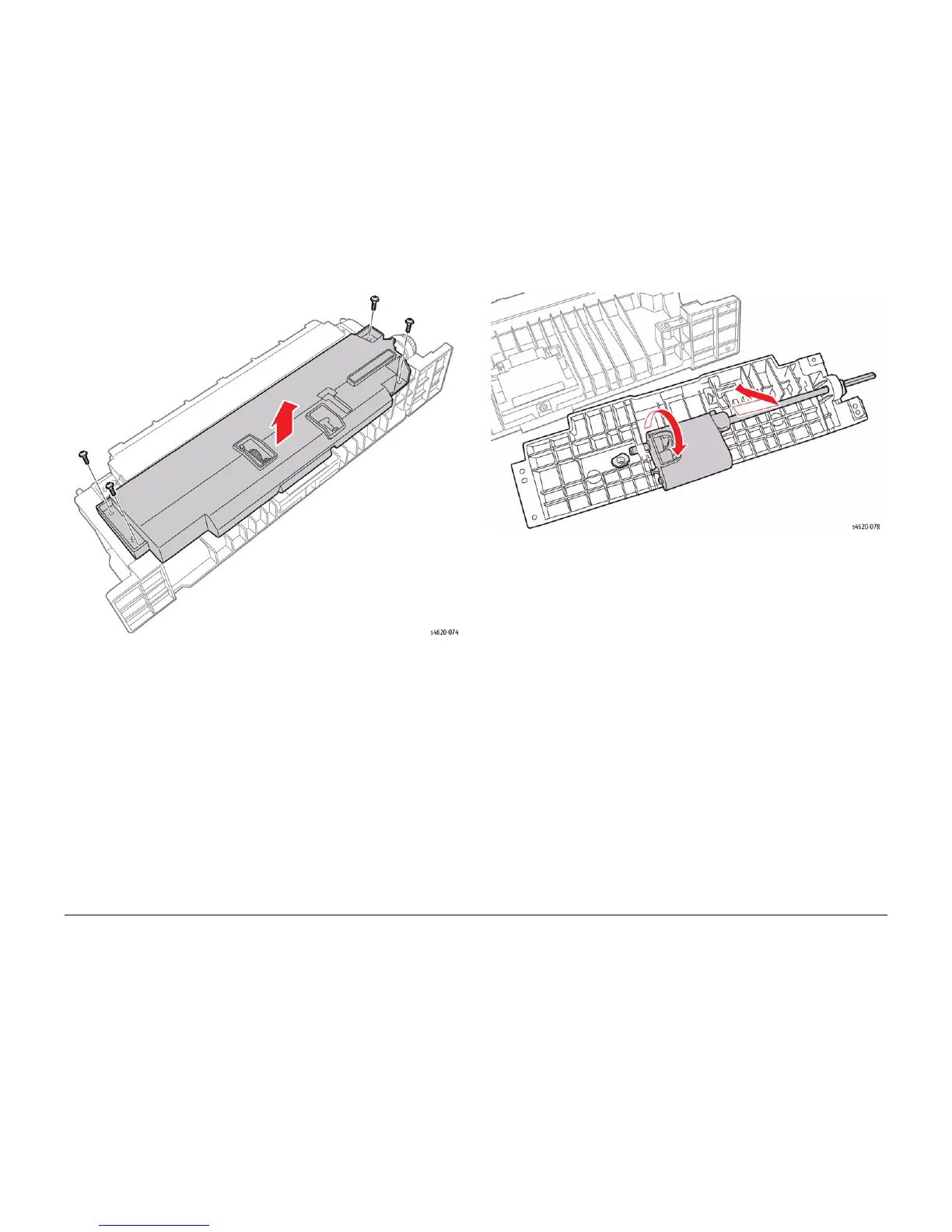

Figure 1 Remove the Feeder Assembly top screws
12. Remove the Pick Assembly from the Feeder Assembly, Figure 2.
Figure 2 Remove the Tray 1 Pick-up Assembly
Replacement
Check No Paper Sensor actuator operation and position before securing the Tray 1 Feeder
Assembly top cover, Figure 3.
