5/2011
4-12
Phaser 4600/4620 Printer Service Manual
REP 2.1
Revision - Xerox Internal Use Only
Repairs

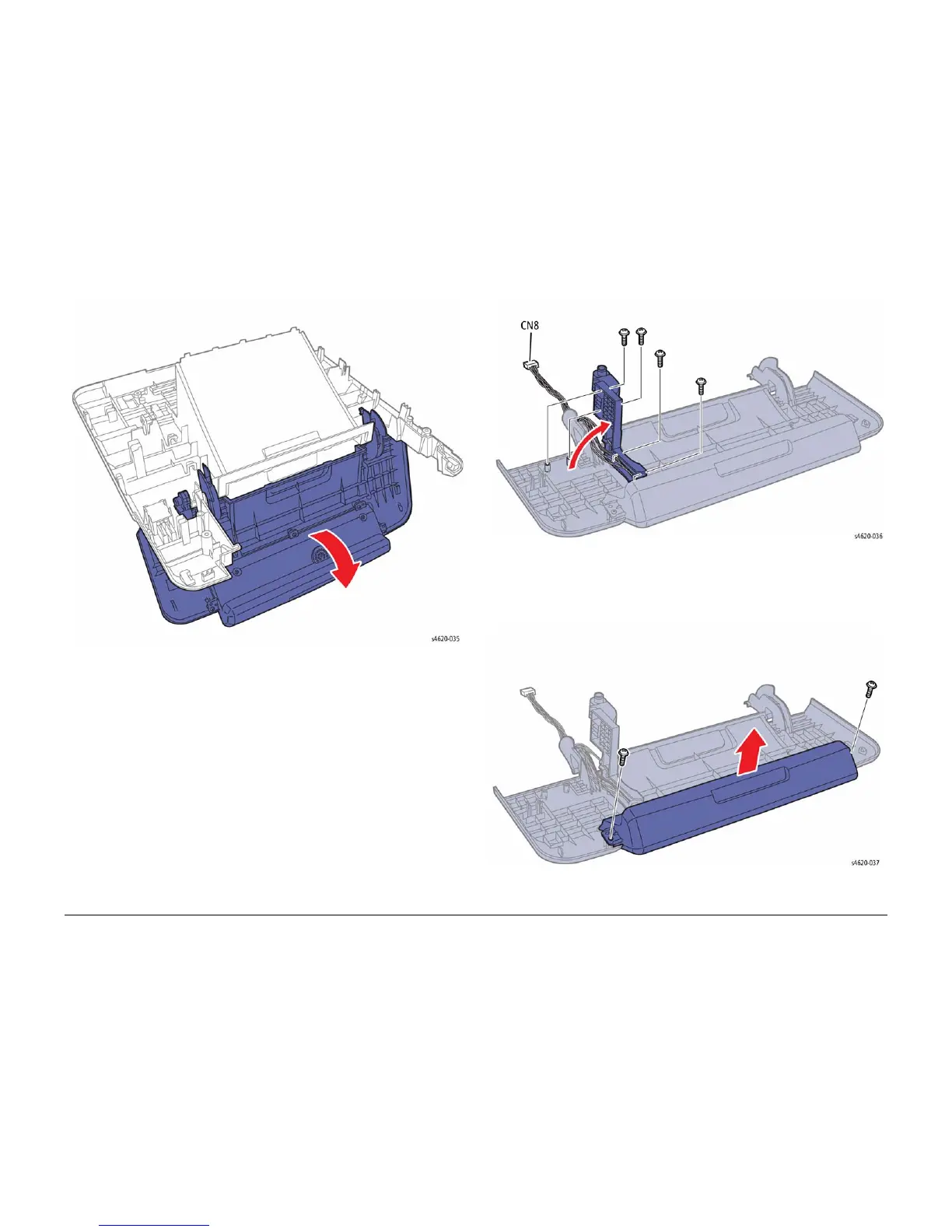

Figure 3 Remove the Top Door
9. Remove 4 screws (plastic) that secure the harness cover to the Top Door, Figure 4.
Figure 4 Remove the Control Panel harness cover
10. Release the Control Panel harness from 2 hooks on the harness cover.
11. Remove 2 screws (plastic) that secure the Control Panel to the Top Door and feed the
harness through the hole in the Top Door, Figure 5.
Figure 5 Remove the Control Panel from the Top Door
To Next Page
