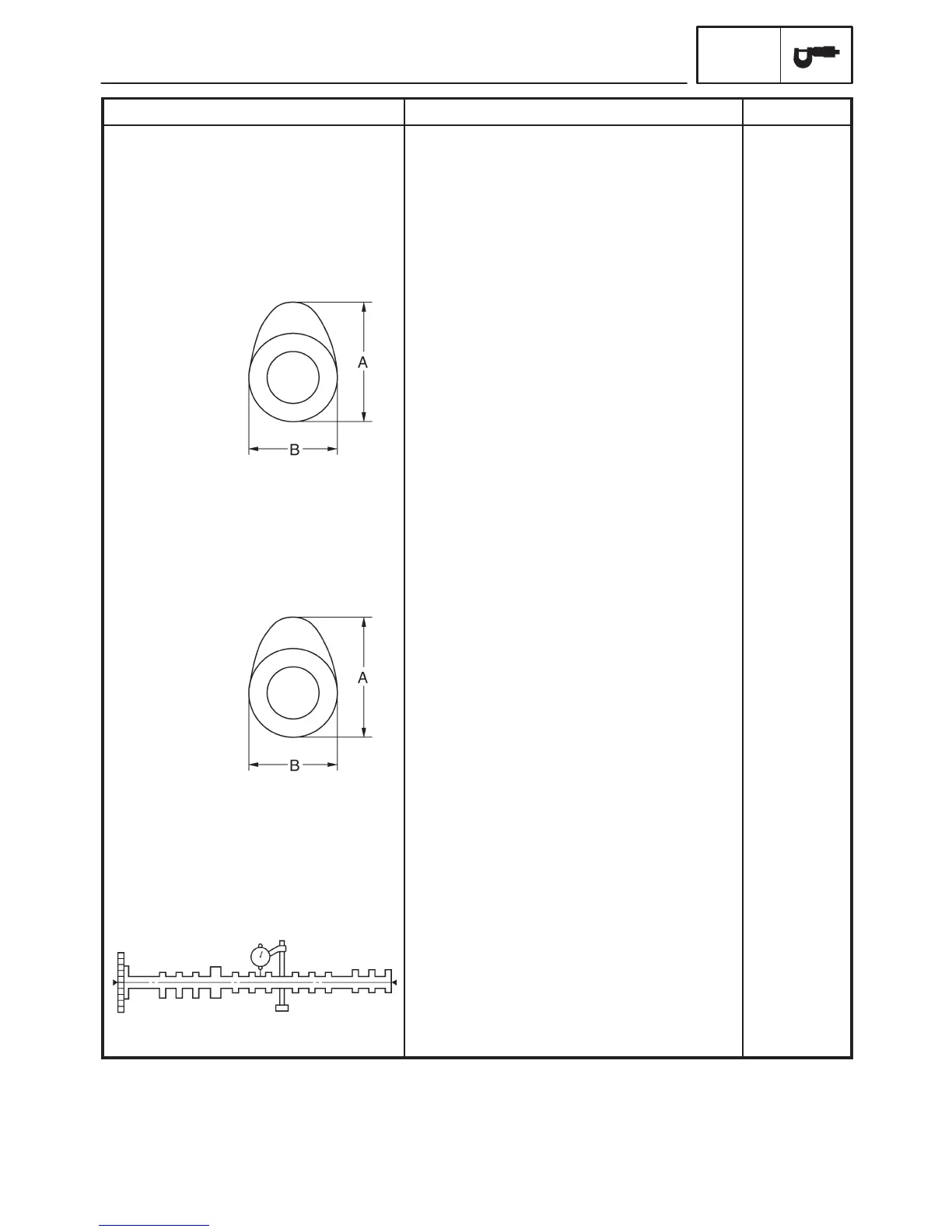

ENGINE SPECIFICATIONS
SPEC
Item Standard Limit
Camshafts
Drive system
Camshaft cap inside diameter
Camshaft journal diameter
Camshaft-journal-to-camshaft-
cap clearance
Intake camshaft lobe dimensions
Measurement A
Measurement B
Exhaust camshaft lobe dimensions
Measurement A
Measurement B
Max. camshaft runout
Chain drive (right)
23.008 X 23.029 mm (0.9058 X 0.9067 in)
22.967 X 22.980 mm (0.9042 X 0.9047 in)
0.028 X 0.062 mm (0.0011 X 0.0024 in)
33.45 X 33.55 mm (1.317 X 1.321 in)
25.12 X 25.22 mm (0.989 X 0.993 in)
32.55 X 32.65 mm (1.282 X 1.285 in)
25.07 X 25.17 mm (0.987 X 0.991 in)
SSS
SSS
SSS
SSS
0.08 mm
(0.0031 in)
33.40 mm
(1.315 in)
25.07 mm
(0.987 in)
32.50 mm
(1.280 in)
25.02 mm
(0.985 in)
0.06 mm
(0.0024 in)
