3-17

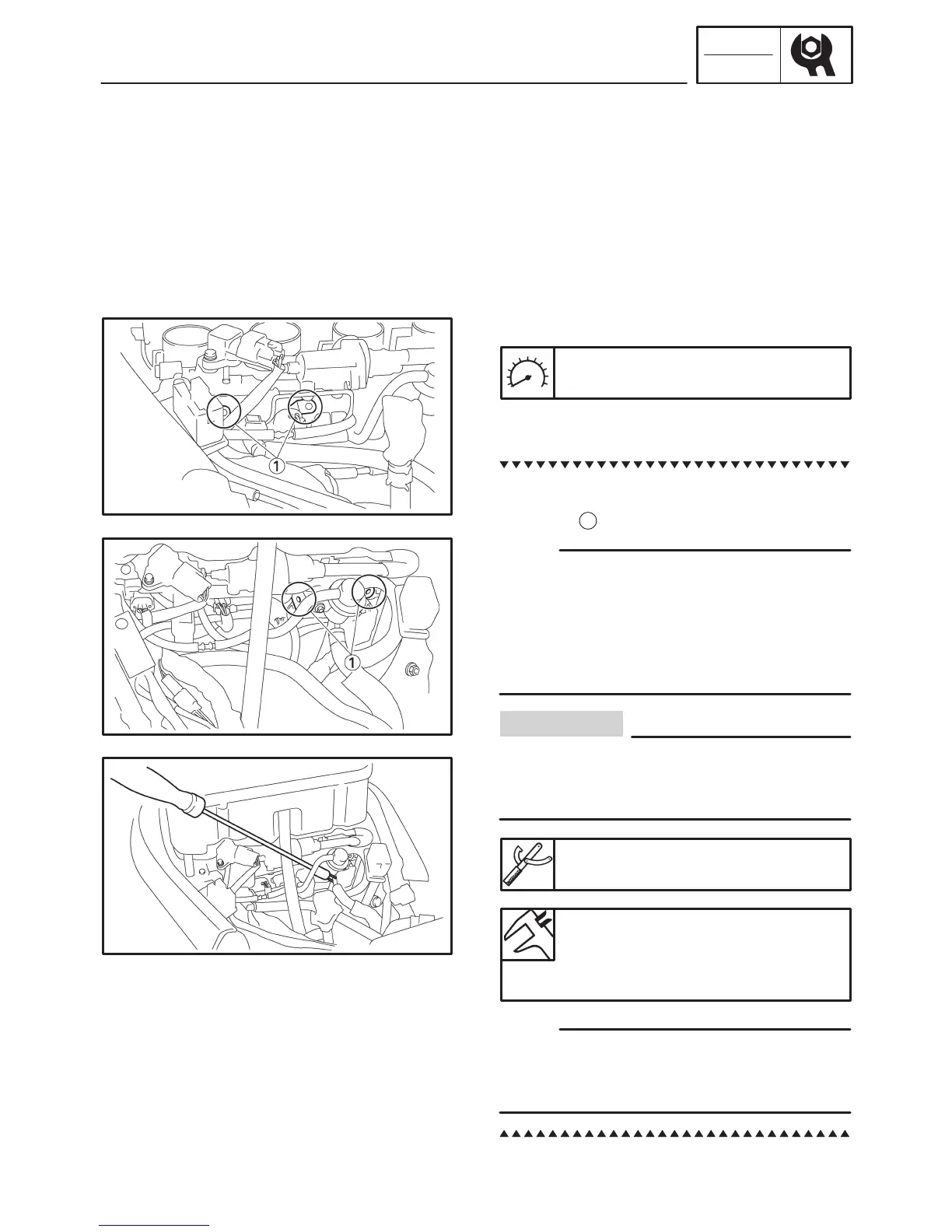

SYNCHRONIZING THE THROTTLE BODIES
CHK
ADJ
NOTE:
CAUTION:
NOTE:
5. Install:
S air filter case
Refer to “AIR FILTER CASE”.
S fuel tank
Refer to “FUEL TANK”.
6. Start the engine and let it warm up for several
minutes.
7. Measure:
S engine idling speed
Out of specification ! Adjust.
Refer to “ADJUSTING THE ENGINE IDLING
SPEED”.
Engine idling speed
1,250 X 1,350 r/min
8. Adjust:
S throttle body synchronization
a. With throttle body #3 as standard, adjust
throttle bodies #1, #2, and #4 using the air
screws
1
.
S After each step, rev the engine two or three
times, each time for less than a second, and
check the synchronization again.
S If the air screw is removed, turn the screw 3/4
turn in and be sure to synchronize the throttle
body.
Do not use the throttle valve adjusting
screws to adjust the throttle body synchro-
nization.
Carburetor angle driver
90890-03158
Vacuum pressure at engine
idling speed
24 kPa
(180 mmHg, 7.0872 inHg)
The difference in vacuum pressure between
two throttle bodies should not exceed 1.33 kPa
(10 mmHg, 0.39 inHg).
To Next Page
