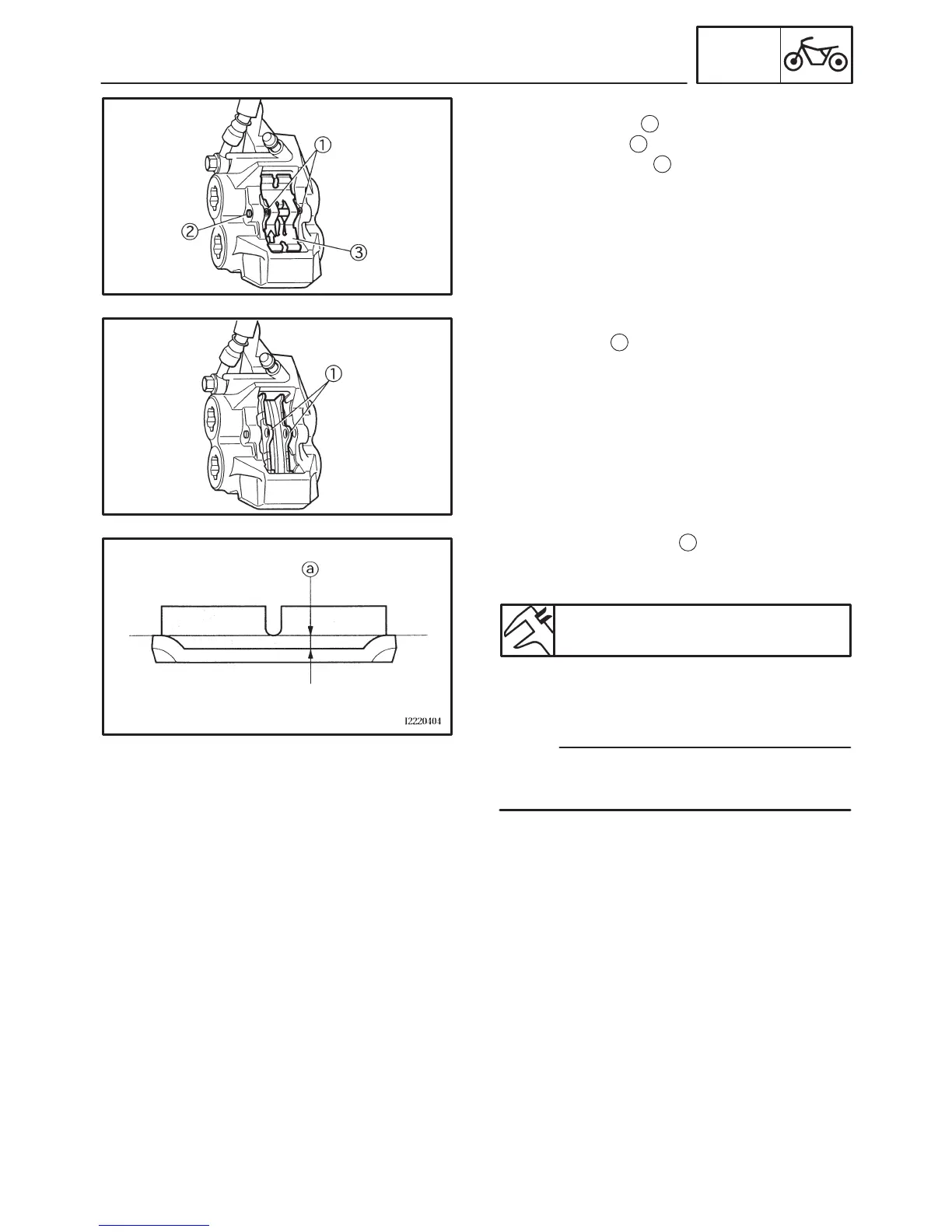

4-19
FRONT AND REAR BRAKES
CHAS
NOTE:
2.
Remove:
S
brake pad clips
1
S
brake pad pin
2
S
brake pad spring
3
3.
Remove:
S
brake pads
1
4.
Measure:
S
brake pad wear limit
a
Out of specification
!
Replace the brake
pads as a set.
Brake pad wear limit
0.5 mm (0.02 in)
5.
Install:
S
brake pads
S
brake pad spring
Always install new brake pads, and a brake pad
spring as a set.
