4-53
FRONT FORK
CHAS
CAUTION:
NOTE:
NOTE:

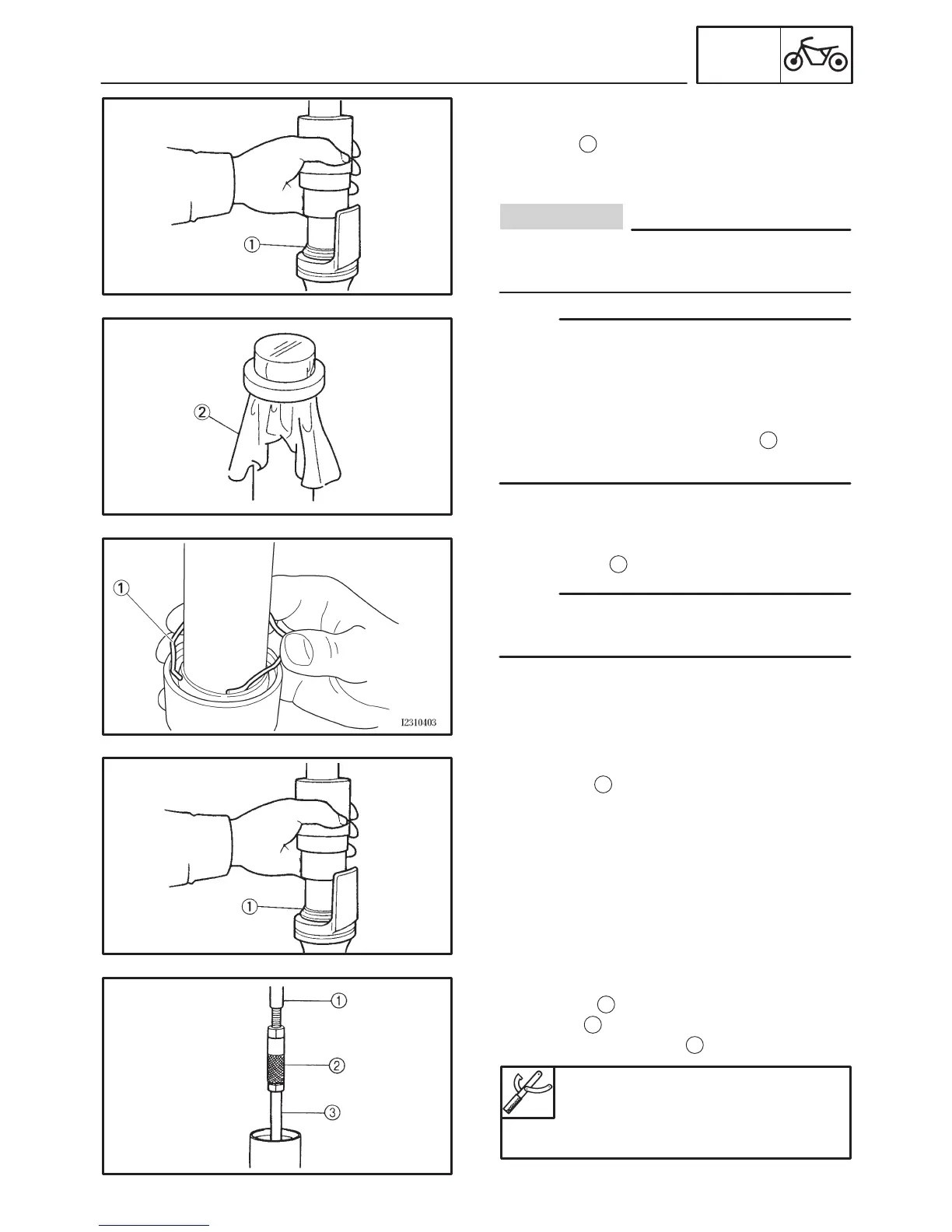

5. Install:
S washer
S oil seal
1
(with the fork seal driver weight and fork seal
driver attachment)
Make sure the numbered side of the oil seal
faces up.
S Before installing the oil seal, lubricate its lips
with lithium-soap-based grease.
S Lubricate the outer surface of the inner tube
with fork oil.
S Before installing the oil seal, cover the top of
the front fork leg with a plastic bag
2
to protect
the oil seal during installation.
6. Install:
S oil seal clip
1
Adjust the oil seal clip so that it fits into the outer
tube’s groove.
7. Install:
S dust seal
1
(with the fork seal driver weight)
8. Install:
S rod puller
1
S adapter
2
(onto the damper rod
3
)
Rod puller
90890-01437, YM-01437
Rod puller attachment
90890-01436
