5-15
CAMSHAFTS
ENG
NOTE:
10 Nm (1.0 mSkg, 7.2 ftSlb)
NOTE:
CAUTION:
NOTE:
3. Install:
S dowel pins
S exhaust camshaft caps
S intake cmashaft caps
S Make sure each camshaft cap is installed in its
original place.

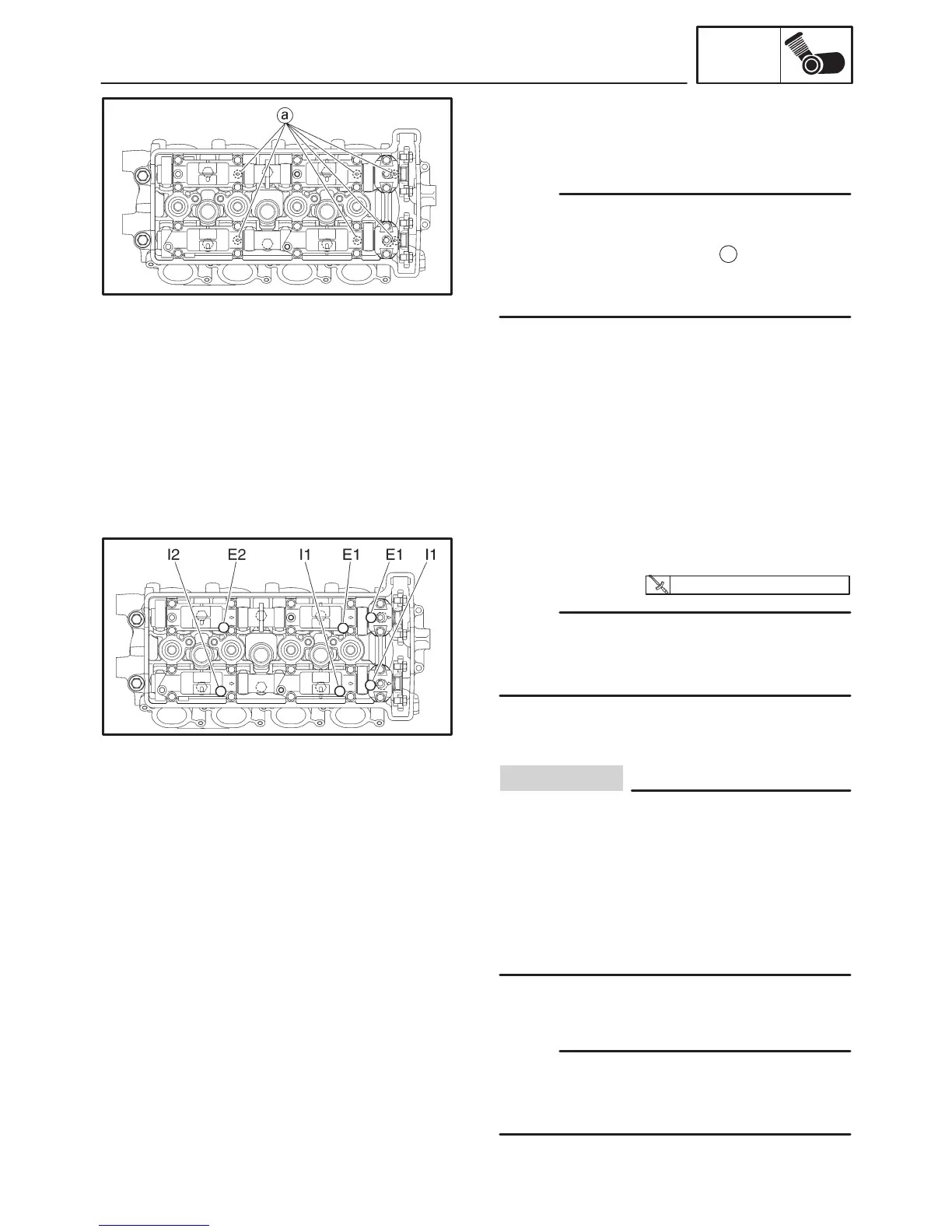

S Make sure the arrow mark
a
on each cam-
shaft cap points towards the right side of the
engine.
4. Install:
S camshaft cap bolts
Tighten the camshaft cap bolts in stages and in
a crisscross pattern, working from the inner
caps out.
I1, 12: Intake side camshaft cap mark
E1, E2: Exhaust side camshaft cap mark
S Lubricate the camshaft cap bolts with the
engine oil.
S The camshaft cap bolts must be tightened
evenly or damage to the cylinder head,
camshaft caps, and camshafts will result.
S Do not turn the crankshaft when installing
the camshaft to avoid damage or improper
valve timing.
5. Install:
S timing chain guide (exhaust side)
When installing the timing chain guide, be sure
to keep the timing chain as tight as possible on
the exhaust side.
To Next Page
