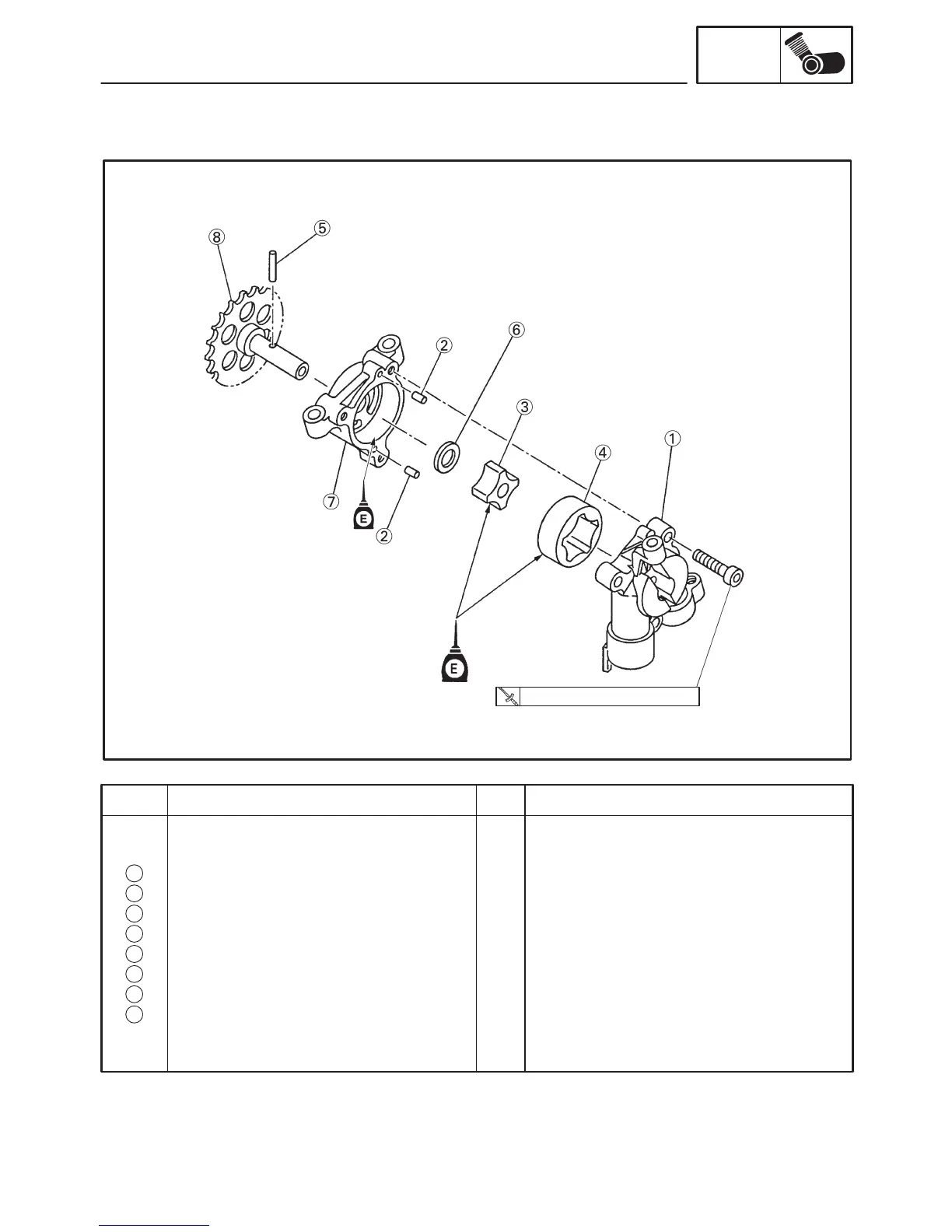

OIL PAN AND OIL PUMP
ENG
Order Job/Part Q’ty Remarks
Disassembling the oil pump
assembly
Oil pump cover
Pin
Oil pump inner rotor
Oil pump outer rotor
Pin
Washer
Oil pump rotor housing
Oil pump driver sprocket
1
2
1
1
1
1
1
1
Disassemble the parts in the order listed.
For assembly, reverse the disassembly
procedure.
1
2
3
4
5
6
7
8
12 Nm (1.2 mSkg, 8.7 ftSlb)
