5-61
Order Job/Part Q’ty Remarks
1
2
3
4
5

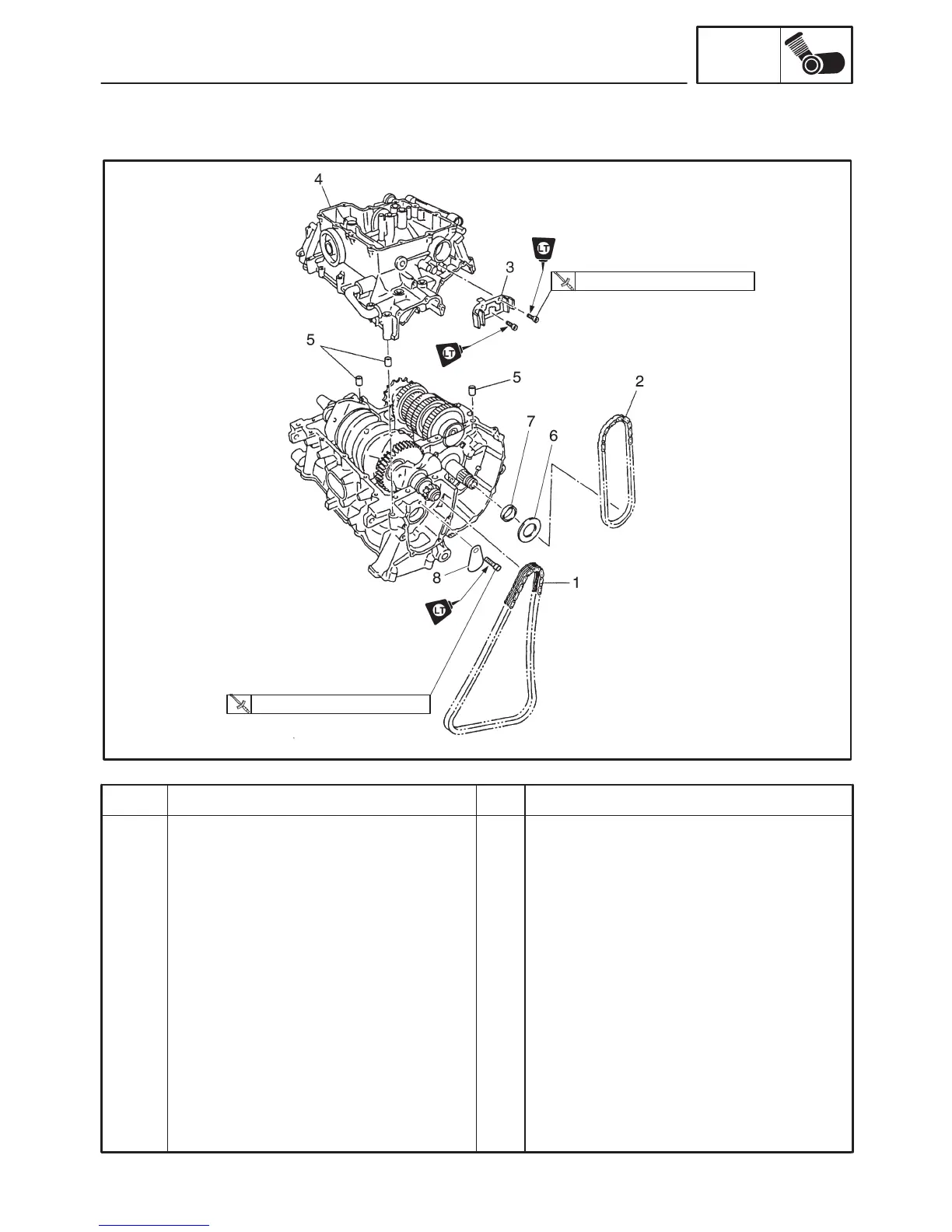

Removing the crankcase
Engine
Cylinder head
Starter clutch and generator
Shift shaft
Crankshaft position sensor and pickup
rotor
Clutch
Water pump assembly
Oil pan and oil pump
Timing chain
Oil pump drive chain
Oil pump drive chain guide
Lower crankcase
Dowel pin
1
1
1
1
3
Remove the parts in the order listed.
Refer to “ENGINE”.
Refer to “CYLINDER HEAD”.
Refer to “STARTER CLUTCH AND
GENERATOR”.
Refer to “SHIFT SHAFT”.
Refer to “CRANKSHAFT POSITION
SENSOR AND PICKUP ROTOR”.
Refer to “CLUTCH”.
Refer to “WATER PUMP” in chapter 6.
Refer to “OIL PAN AND OIL PUMP”.
12 Nm (1.2 mSkg, 8.7 ftSlb)
12 Nm (1.2 mSkg, 8.7 ftSlb)
CRANKCASE
ENG
CRANKCASE
