7-22
FUEL INJECTION SYSTEM
FI
Speed sensor output voltage
When sensor is on
DC 4.8 V or more
When sensor is off
DC 0.6 V or less
Tester positive probe ! pink
Tester negative probe ! black/white
1
2
Fault code No. 42 Symptom 1 No normal signals are received from the speed sensor.
2 Open or short circuit is detected in the neutral switch.
Used diagnostic code No. 07 (speed sensor)
No. 21 (neutral switch)
Inspection operation item and probable
cause
Operation item and countermeasure Reinstatement
method
Defective speed sensor Replace if defective.

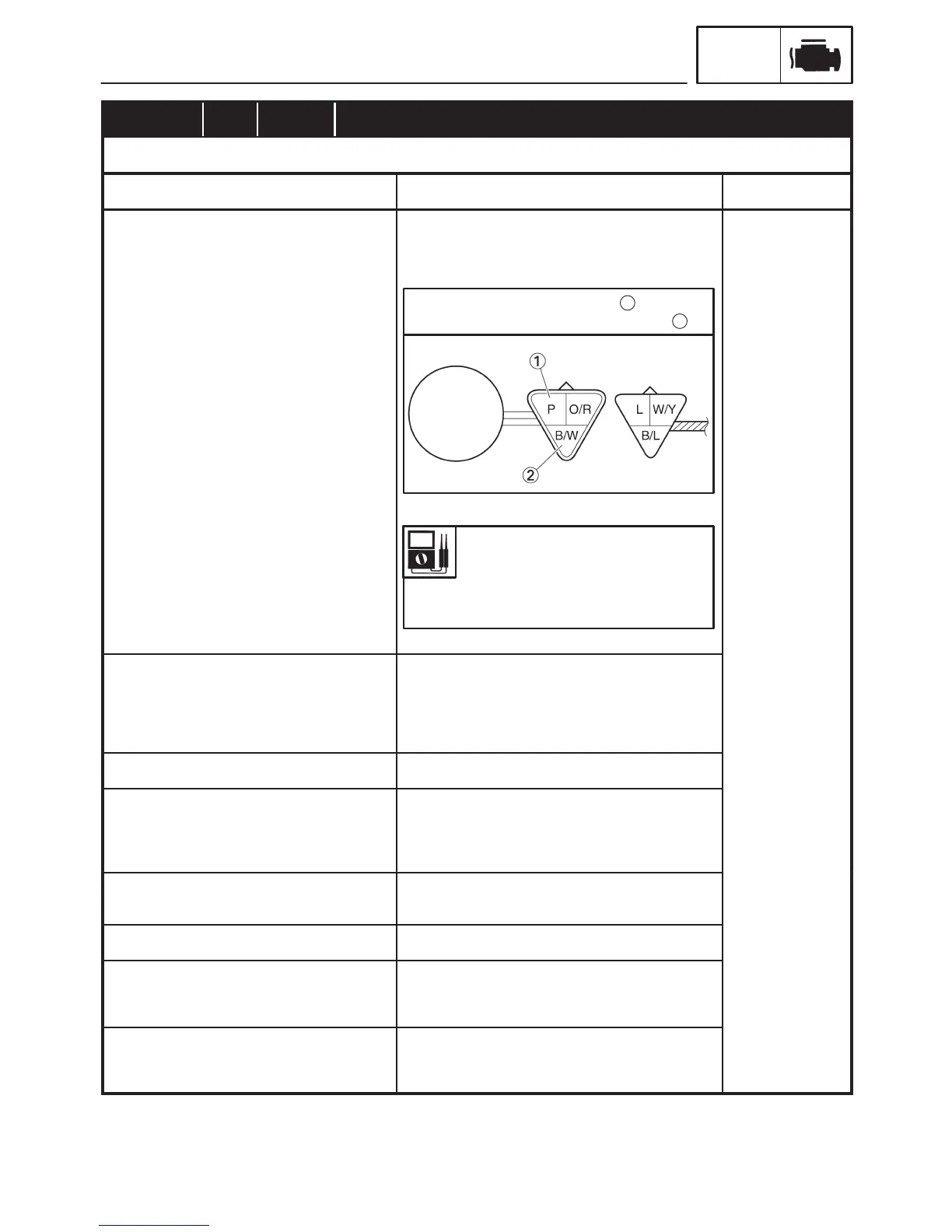

1. Measure the speed sensor output voltage.
2. Connect the pocket tester (DC 20 V) to the
speed sensor coupler terminal as shown.
3. Measure the speed sensor output voltage.
4. Is the speed sensor OK?
Reinstated by
starting the
engine, and
inputting the
vehicle speed
signals by
operating the
motorcycle at a
low speed of 20 to
30 km/h.
Open or short circuit in speed sensor lead. Repair or replace if there is an open or short
circuit.
Between sensor coupler and ECU coupler.
Blue - Blue
White/Yellow - White/Yellow
Black/Blue - Black/Blue
Gear for detecting vehicle speed has broken. Replace if defective.
Refer to “TRANSMISSION” in chapter 5.
Connected condition of speed sensor
connector
Inspect the coupler for any pins that may
have pulled out.
Check the locking condition of the coupler.
If there is a malfunction, repair it and connect it
securely.
Speed sensor coupler
Main wiring harness ECU coupler
Defective neutral switch Replace if defective.
Refer to “CHECKING THE SWITCHES” in
chapter 8.
Faulty shift drum
(neutral detection area)
Replace if defective.
Refer to “TRANSMISSION” in chapter 5.
Open or short circuit in neutral switch lead. Repair or replace if there is an open or short
circuit.
Between switch connector and ECU coupler
Sky blue - Black/Yellow
Connected condition of connector
Inspect the coupler for any pins that may
have pulled out.
Check the locking condition of the coupler.
If there is a malfunction, repair it and connect it
securely.
Neutral switch connector
Main wiring harness ECU coupler
To Next Page
