7-29

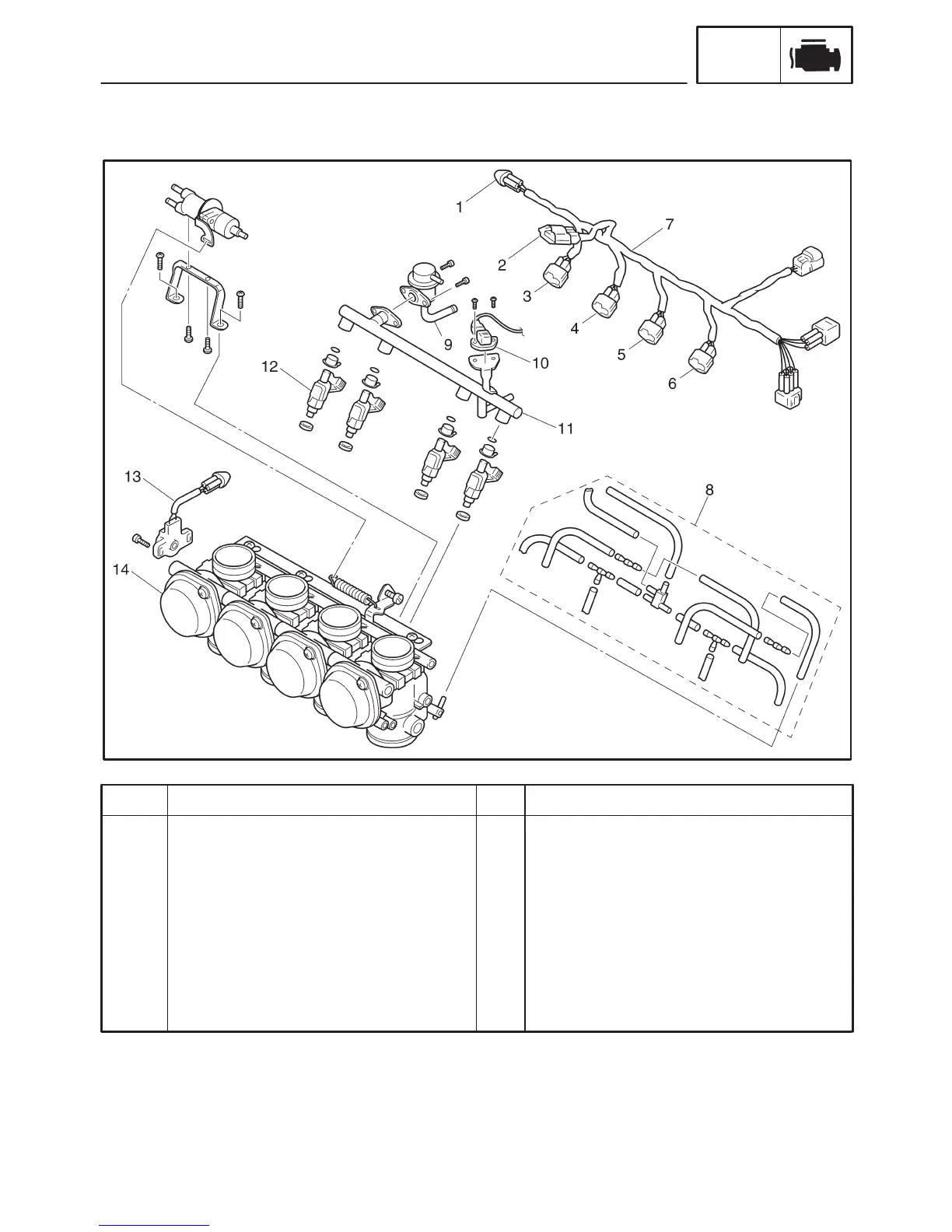

THROTTLE BODIES
FI
Order
Job
/
Part
Q’ty
Remarks
1
2
3
4
5
6
7
8
9
Removing the injector
Throttle position sensor coupler
Intake air pressure sensor
Cylinder #1-injector coupler
Cylinder #2-injector coupler
Cylinder #3-injector coupler
Cylinder #4-injector coupler
Sub wire harness 2
Negative pressure hose
Pressure regulator
1
1
1
1
1
1
1
1
1
Remove the parts in the order listed.
Disconnect.
Disconnect.
Disconnect.
Disconnect.
Disconnect.
Disconnect.
Disconnect.
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
