STARTER MOTOR
ELEC
NOTE:
NOTE:

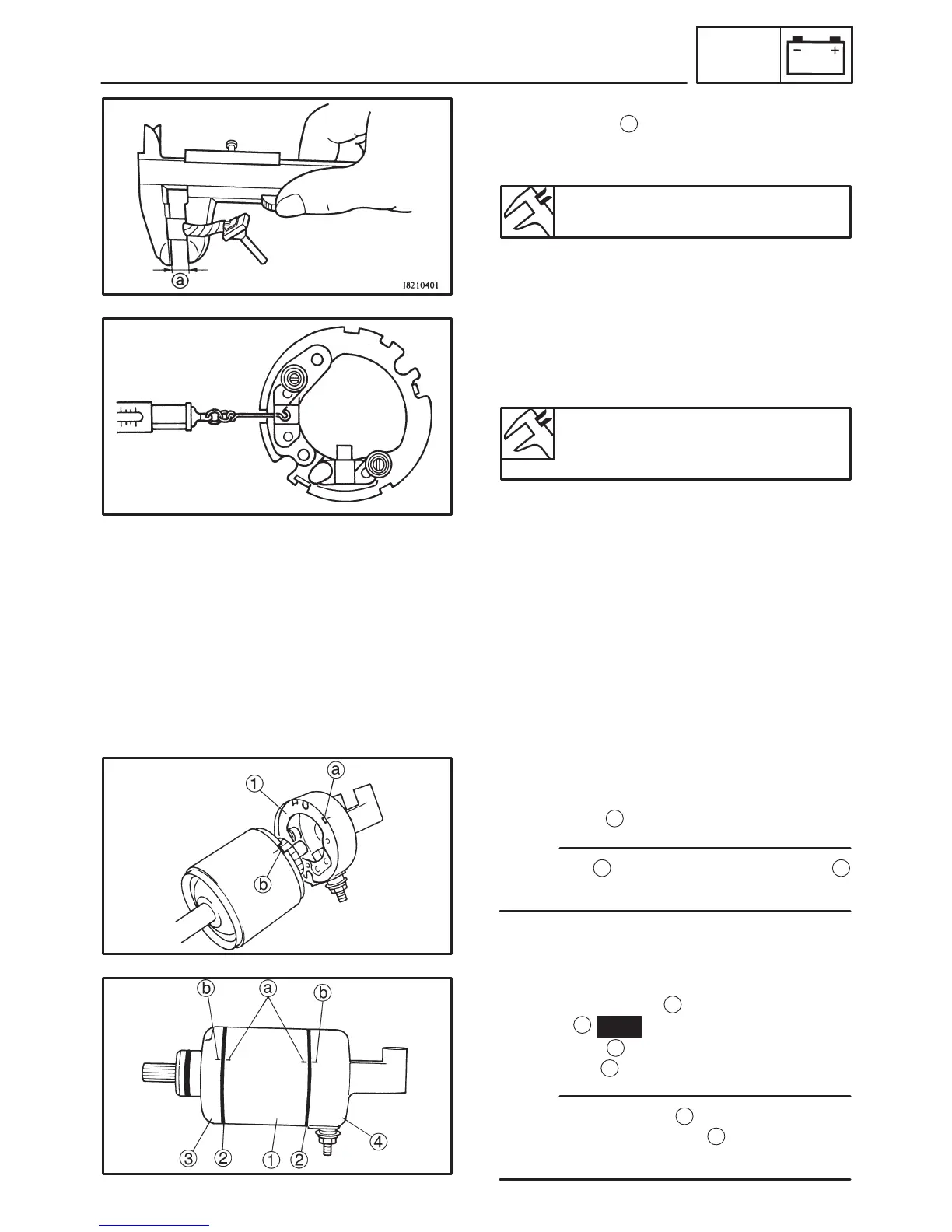

5. Measure:
S brush length
a
.
Out of specification ! Replace the brushes
as a set.
Brush length wear limit
3.5 mm (0.14 in)
6. Measure:
S brush spring force
Out of specification ! Replace the brush
springs as a set.
Brush spring force
7.16 X 9.52 N
(730 X 971 gf, 25.77 X 34.27 oz)
7. Check:
S gear teeth
Damage/wear ! Replace the gear.
8. Check:
S bearing
S oil seal
Damage/wear ! Replace the defective
part(s).
EAS00772
ASSEMBLING THE STARTER MOTOR
1. Install:
S brush seat
1
Align the tab
a
on the brush seat with the slot
b
in the starter motor rear cover.
2. Install:
S starter motor yoke
1
S O-ring
2
New
S front cover
3
Srear cover
4
Align the match marks
a
on the starter motor
yoke with the match marks
b
on the front and
starter motor rear covers.
