4.4 Wiring Servomotors
4.4.3 Wiring the SERVOPACK to the Encoder
4-28

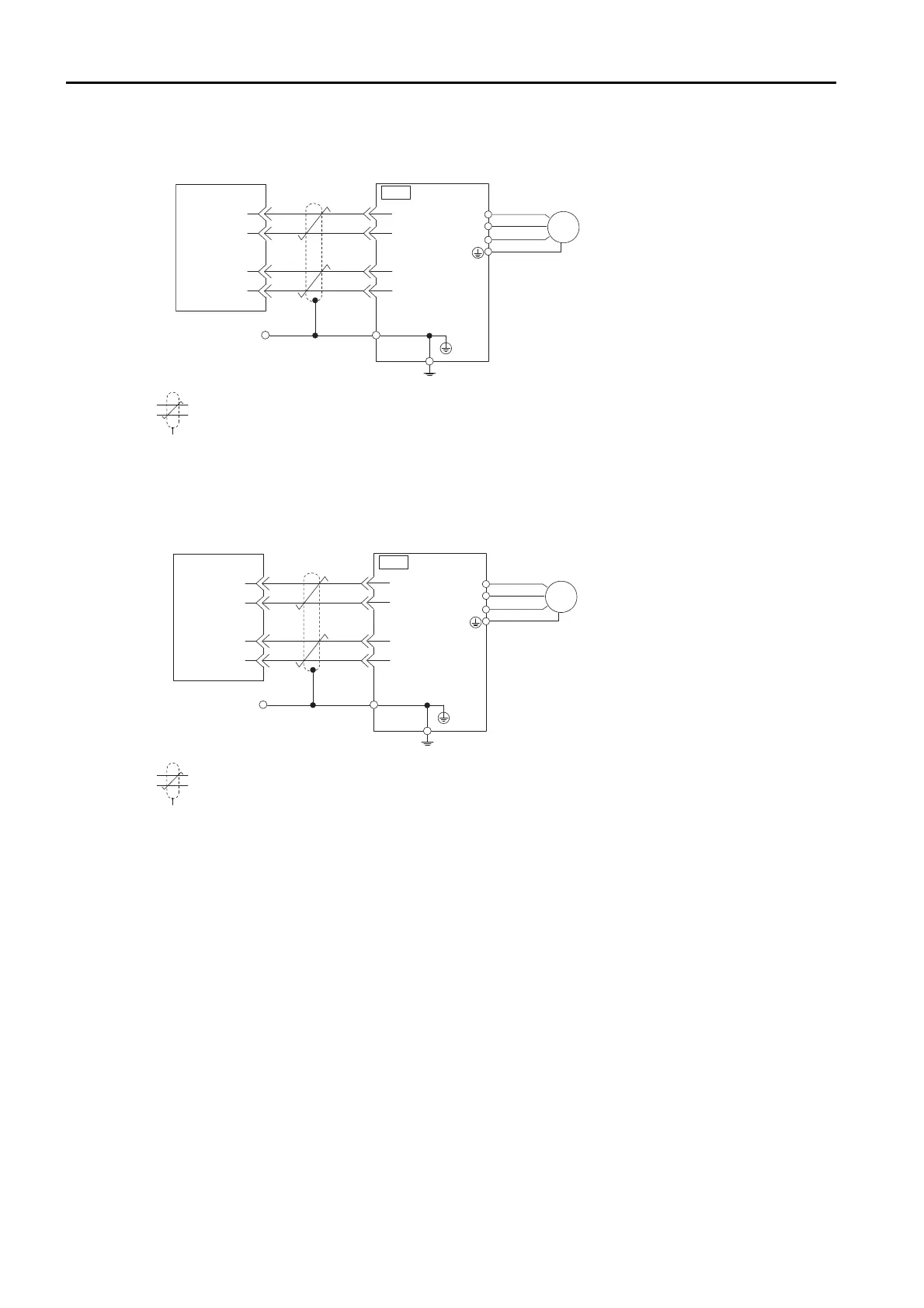

 Connections to Absolute Linear Encoder from Renishaw PLC
* represents a shielded twisted-pair cable.
 Connections to Absolute Linear Encoder from Magnescale Co., Ltd.
 SR77, SR87, SQ47, and SQ57
* represents a shielded twisted-pair cable.
Absolute linear
encoder from
Renishaw PLC
PS
*
/PS
PG5V
PG0V
Shield
Connector
shell
5
6
1
2
Connector
shell
SERVOPACK
CN2
U
V
W
M
PS
*
/PS
PG5V
PG0V
5
6
1
2
CN2
U
V
W
M
Absolute linear encoder
from Magnescale Co., Ltd.
Shield
Connector
shell
Connector
shell
SERVOPACK
