5.1 Manipulating Parameters (Pn)
5.1.3 Parameter Setting Methods
5
Basic Functions That Require Setting before Operation
5-7

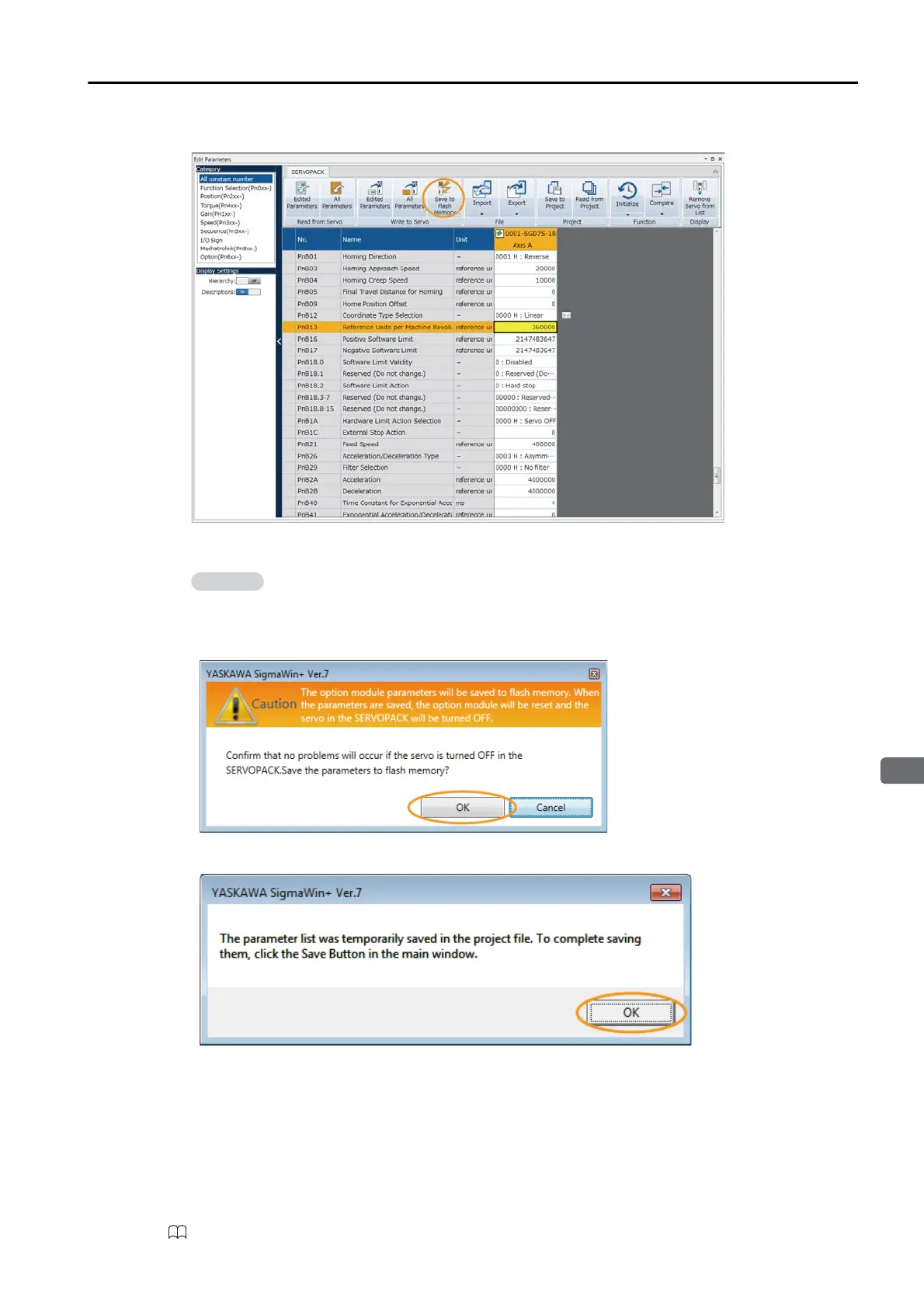

9.
Select
Edited Parameters
in the
Save to Flash
Group.
The parameters that were written to the SERVOPACK will be saved to flash memory and the cells will
change to white.
10.
Click the OK Button.
11.
Click the OK Button.
12.
To enable changes to the settings, turn the power supply to the SERVOPACK OFF and
ON again.
This concludes the procedure to set the parameters.
Setting Parameters with a Digital Operator
Refer to the following manual for information on setting the parameters with a Digital Operator.
Σ-7-Series Digital Operator Operating Manual (Manual No.: SIEP S800001 33)
The parameters that are written are the parameters for the currently selected parameter axis
(i.e., the one with the column title displayed in orange).
Information
