2.4 Examples of Standard Connections between SERVOPACKs and Peripheral Devices
2.3.3 DeviceNet Module External Dimensions and Connector Specifications
2-28
•
Linear Servomotors

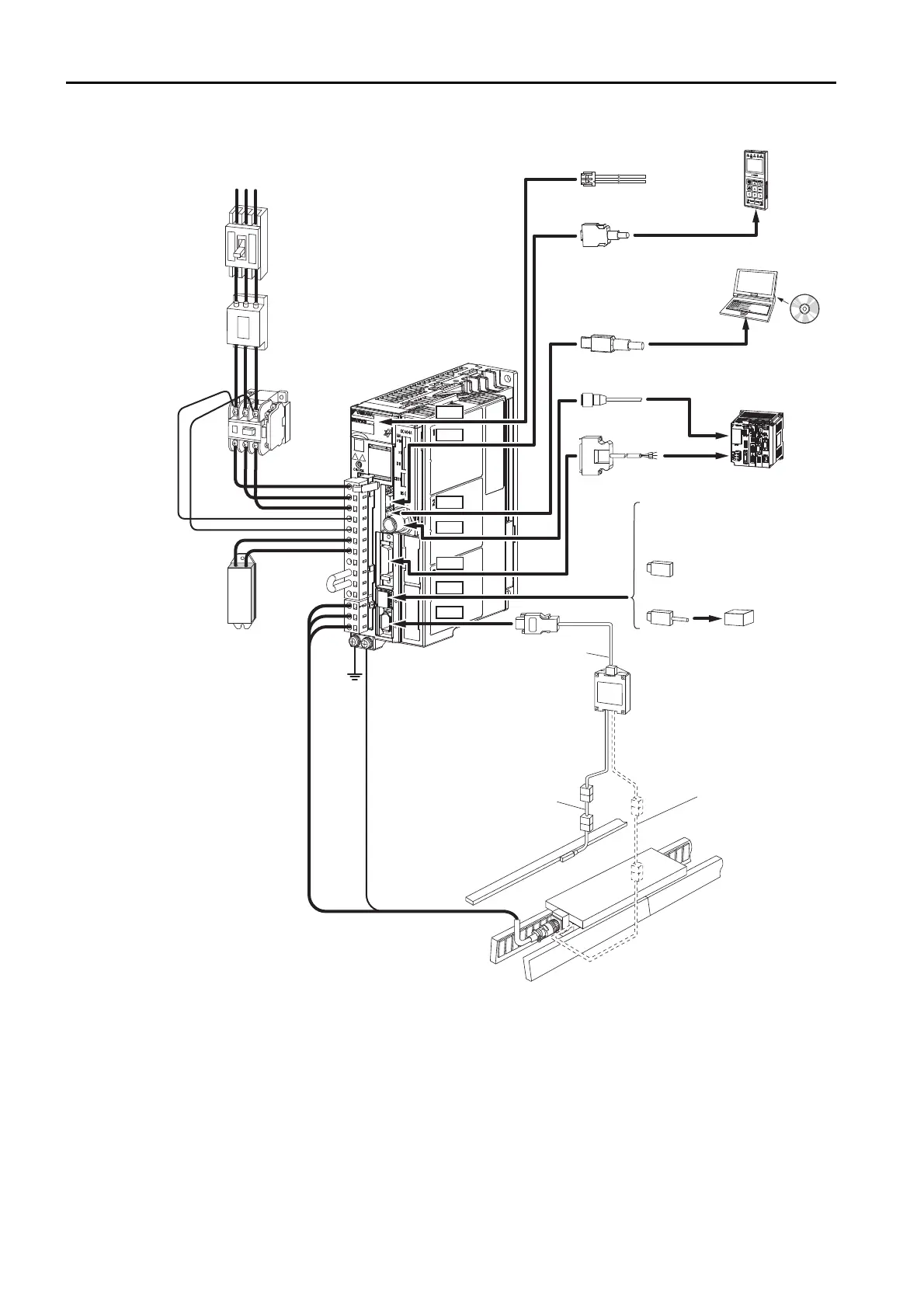

*1. This example is for a SERVOPACK with a three-phase, 200-VAC power supply input. The pin layout of the main
circuit connector depends on the voltage.
*2. External Regenerative Resistors are not provided by Yaskawa.
CN5
CN3
CN7
CN6
CN1
CN8
CN2
External
Regenerative
Resistor
*2
Noise Filter
Molded-case
circuit breaker
Magnetic Contactor
I/O Signal Cable
When a Safety Function Is Not Used:
When a Safety Function Is Used:
Safety function device
SERVOPACK
Power supply
Three-phase, 200 VAC
*1
Computer
Computer cable
External
Regenerative
Resistor Cable
Control
Power
Supply Cable
Digital
Operator
Host controller
Ground
cable
SERVOPACK
main circuit wires
Support
Software
R S T
Analog Monitor Cable
DeviceNet
communications cable
Digital Operator cable
Linear Encoder
Sensor Cable
Linear Encoder Cable
Serial Converter Unit
Serial Converter
Unit Cable
Linear Servomotor
Leave the enclosed JZSP-CVH05-E
Safety Jumper Connector attached.
Safety Function Device Cable
