Configuring Link Aggregation 133
■ Up — Indicates the LAG is active.
■ Down — Indicates the LAG is inactive.
■ Speed — Indicates the LAG speed. The possible fields values are:
■ 10M — Indicates the LAG is currently operating at 10 Mbps.
■ 100M — Indicates the LAG is currently operating at 100 Mbps.
■ 1000M — Indicates the LAG is currently operating at 1000 Mbps.
■ Auto Negotiation — Displays the auto negotiation status on the
LAG. Auto negotiation is a protocol between two link partners that
enables a LAG to advertise its transmission rate, duplex mode, and
flow control abilities to its partner.
■ Flow Control — Displays the flow control status on the LAG.
Operates when the LAG is in full duplex mode.
To configure Link Aggregation:
1 Click Wired Ports > Link Aggregation > Setup. The Link Aggregation
Setup Page opens:

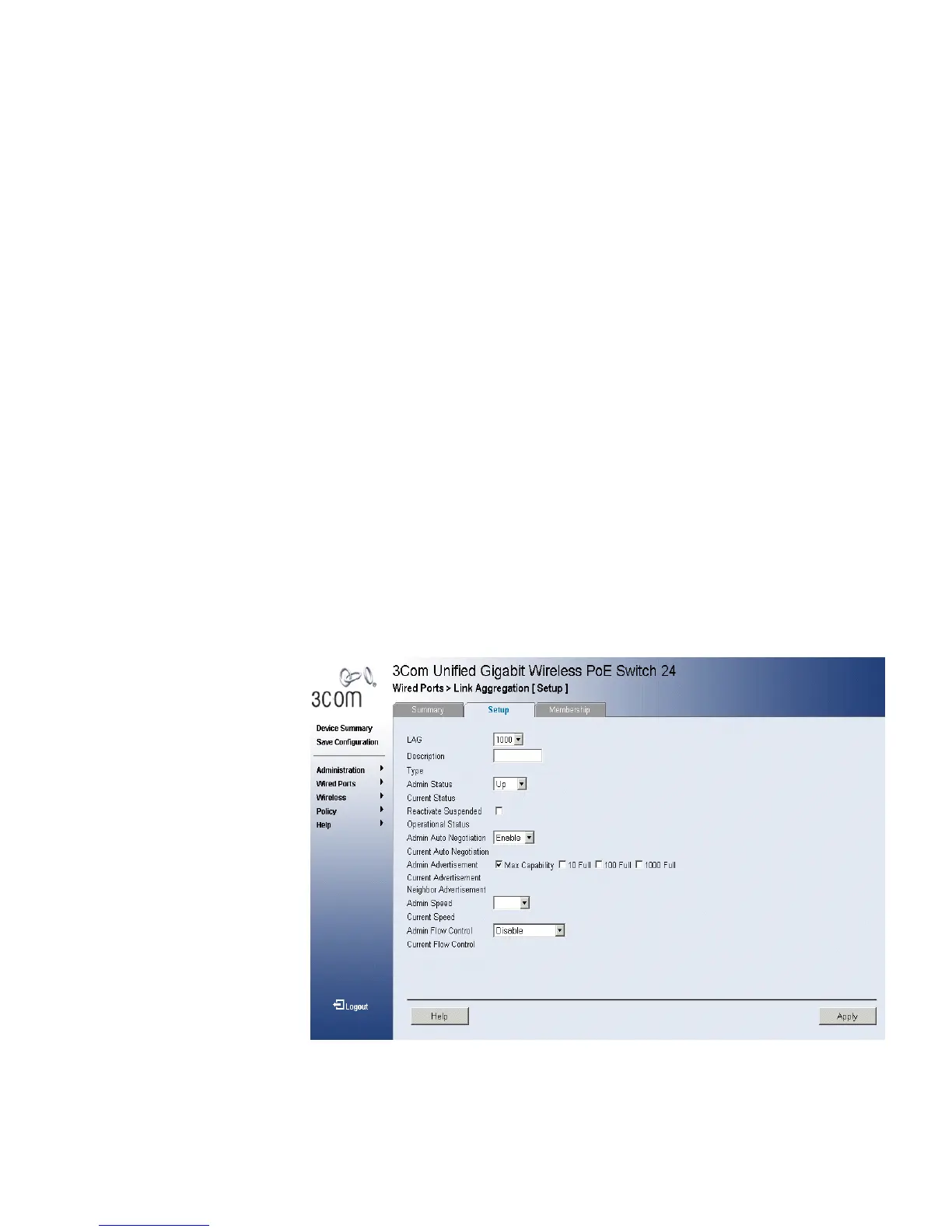

Figure 64 Link Aggregation Setup Page
The Link Aggregation Setup Page includes the following pages:
■ LAG — Displays the LAG number.
