202 CHAPTER 9: CONFIGURING IP INFORMATION
Viewing Dynamic
Addresses
The Dynamic MAC Address contains information for querying
information in the dynamic address table, including the interface type,
MAC addresses, VLAN, and table sorting. Packets forwarded to an
address stored in the address table are forwarded directly to those ports.
The Dynamic MAC Address page also contains information about the
aging time before a dynamic MAC address is erased, and includes
parameters for querying and viewing the Dynamic Address list. The
Current Address Table contains dynamic address parameters by which
packets are directly forwarded to the ports.
■ Click Wired Ports >Address Tables > Dynamic Addresses. The
Dynamic Addresses Summary Page opens:

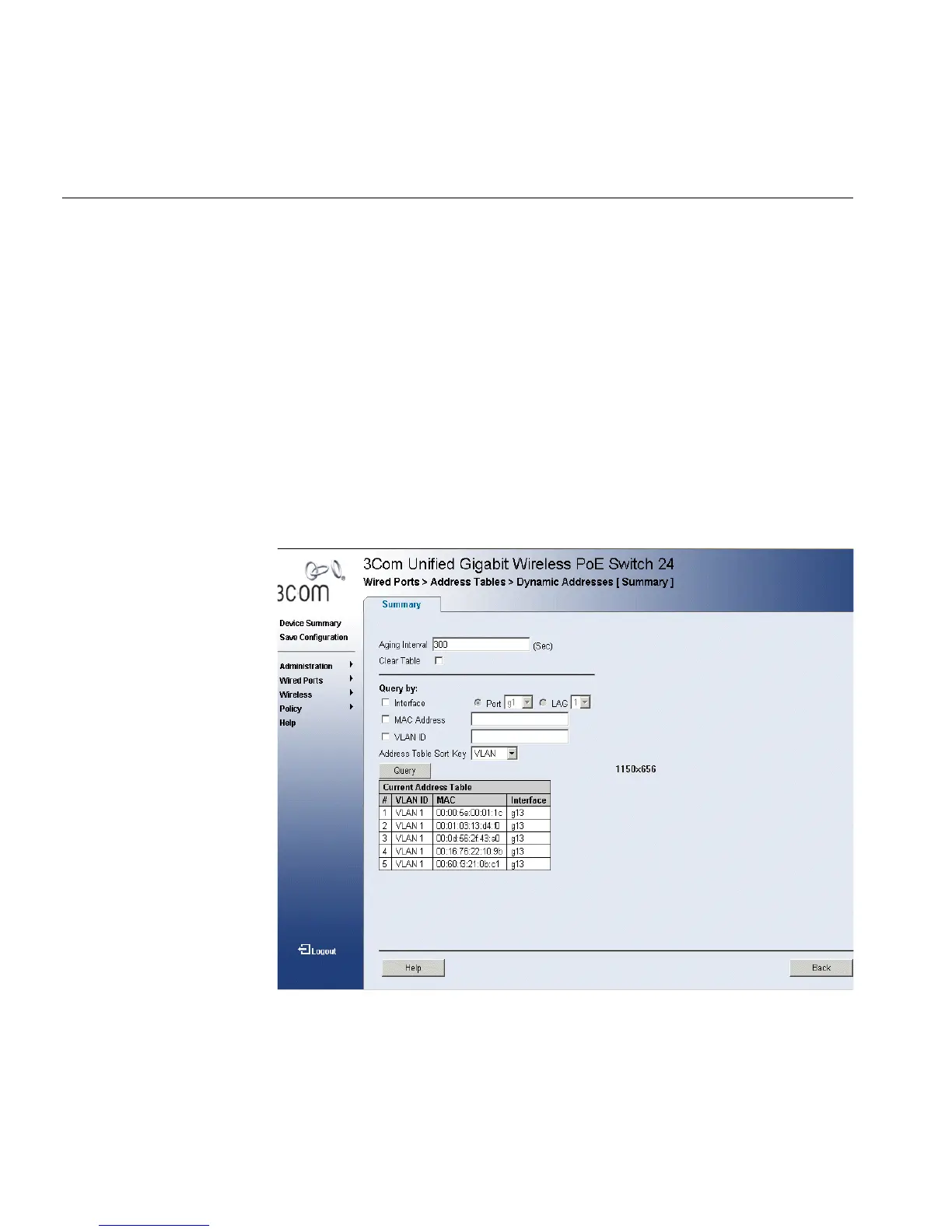

Figure 104 Dynamic Addresses Summary Page
The Dynamic Addresses Summary Page contains the following fields and
button:
■ Query — Updates the Dynamic Address table.
