Defining VLAN Interface Settings 147
Defining VLAN
Interface Settings
The VLAN contains fields for managing ports that are part of a VLAN. The
Port Default VLAN ID (PVID) is configured on the VLAN Interface Settings
Modify Page. All untagged packets arriving at the device are tagged with
the port PVID.
To view VLAN Settings:
1 Click Policy > VLAN > Interface Settings > Summary. The VLAN
Interface Settings Summary Page opens:

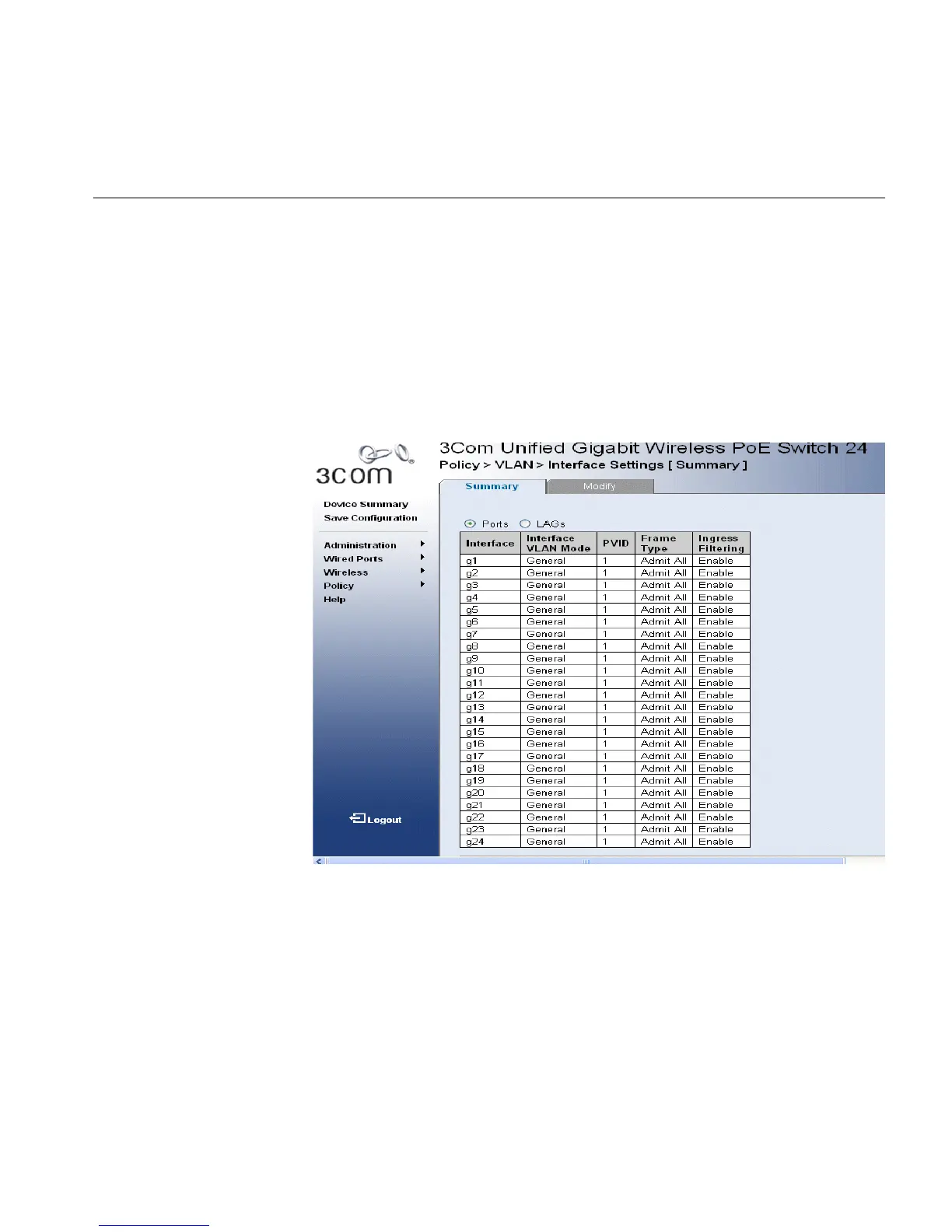

Figure 72 VLAN Interface Settings Summary Page
The VLAN Interface Settings Summary Page contains the following fields:
■ Port — Displays the port interface settings.
■ LAG — Displays the LAG interface settings.
■ Interface — Displays the port number or LAG number included in the
VLAN.
■ Interface VLAN Mode — Displays the interface mode. The possible
values are:
■ General — Indicates the port belongs to VLANs, and each VLAN is
user-defined as tagged or untagged (full IEEE802.1q mode).
