3BHS212794 E01 REV M ACS6000 USER MANUAL 101/278
05 MECHANICAL INSTALLATION
5.6 Joining water pipes
The pipe joints of two adjoining transport units have been slid onto the
water pipes in the factory. The locking bolts show into the direction where
they can be reached best with a wrench.
1. Mark the length of a pipe joint on one end of a water pipe as a
fitting guide.
2. Slide the pipe joint over the two adjoining pipe ends.
3. Center the pipe joint.
4. Orientate the locking bolts of the pipe joint for the return water
pipes (Fig. 5-2).

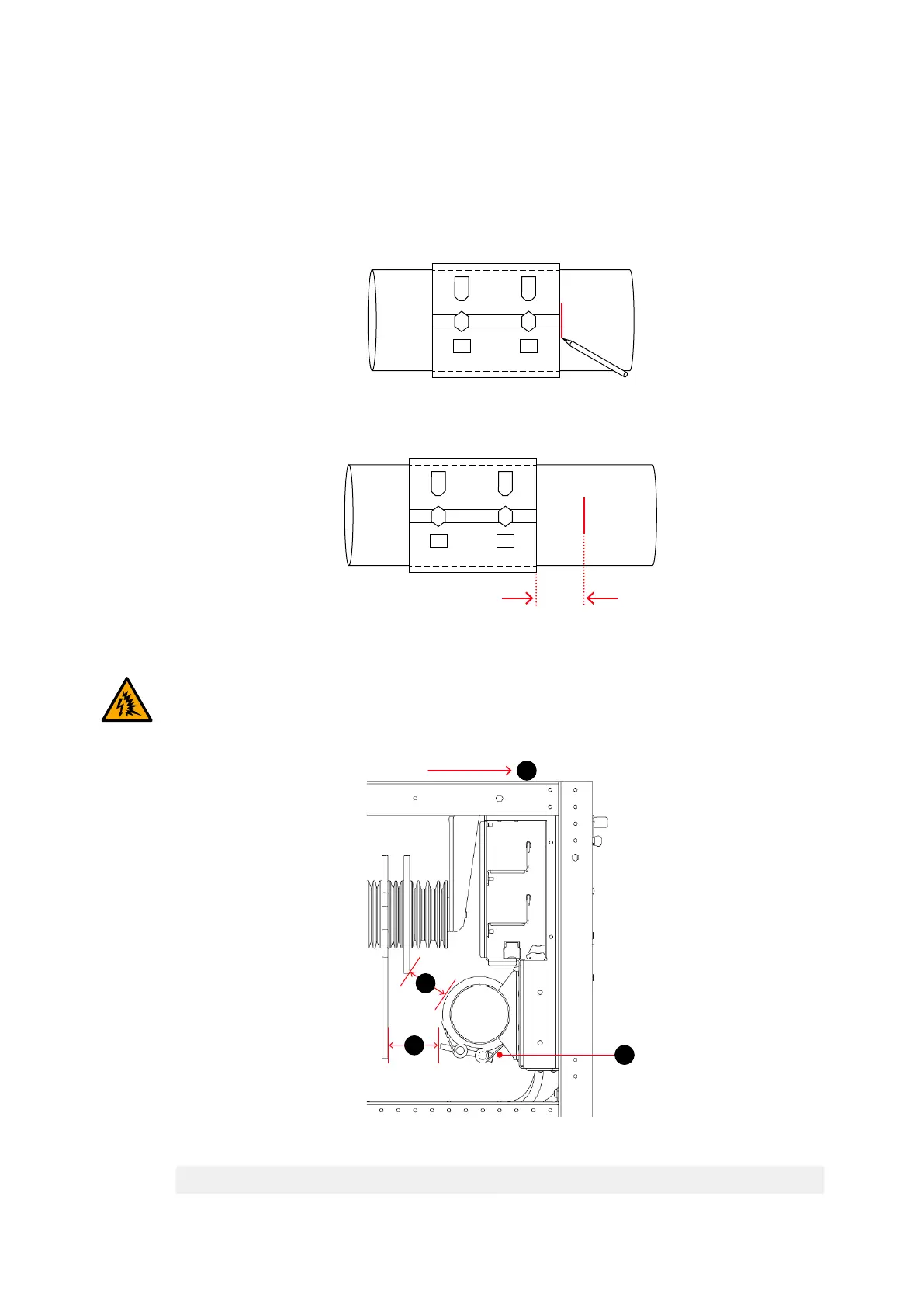

Figure 5-2 Minimum distances and locking bolt orientation (A = front)
WARNING! Flashover hazard! The locking bolts maintain the required
minimum distances between pipe joint and busbars to prevent
flashover when the drive is energized.
(1) 40 mm minimum (2) Locking bolt orientation
1
2
2
3
