3BHS212794 E01 REV M ACS6000 USER MANUAL 109/278
05 MECHANICAL INSTALLATION
5.7.5 AC busbars between COU/TEU and ARU/INU

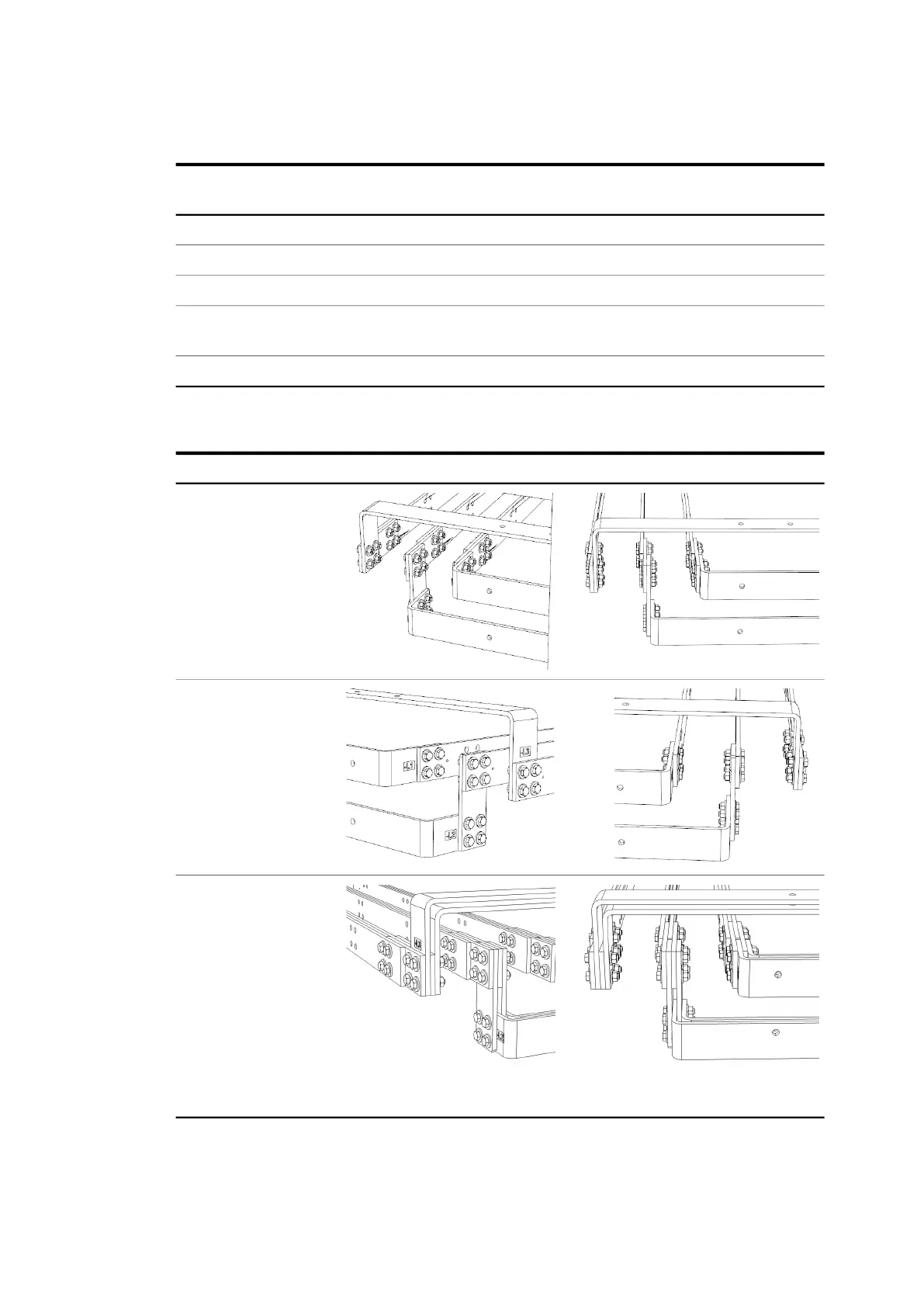

5.7.6 AC busbar joints - without disconnector
Table 5-1 Installation material for AC busbars (COU/TEU – ARU/INU)
Item Technical
parameter
Identification Usage
Hex-head bolt M12 x 40-A2-70 NB 312350P8119 Single busbar
Hex-head bolt M12 x 60-A2-70 NB 312450P8123 Double busbars
Hex-head bolt M12 x 80-A2-70 NB 312450P8127 Triple busbars
Conical spring
washer
13 x 29 x 3 HAQN400344P0111
Hex-head nut M12-A2-70, coated HZN 452198P1022
Modules Busbar joints
• ARU/INU -
COU/TEU
• ARU/INU: 5 MVA
(without MOI)
• COU/TEU:
- 600 mm
- 1000 mm
• COU/TEU -
ARU/INU
• ARU/INU: 5 MVA
(without MOI)
• COU/TEU:
- 600 mm
- 1000 mm
• ARU/INU -
COU/TEU
• ARU/INU:
- 7, 9, 13
peak MVA
- 5 MVA
(with MOI)
• COU/TEU:
- 600 mm
- 1000 mm
