9.2.4 Functions mode
The functions mode is used for adjusting the display contrast.

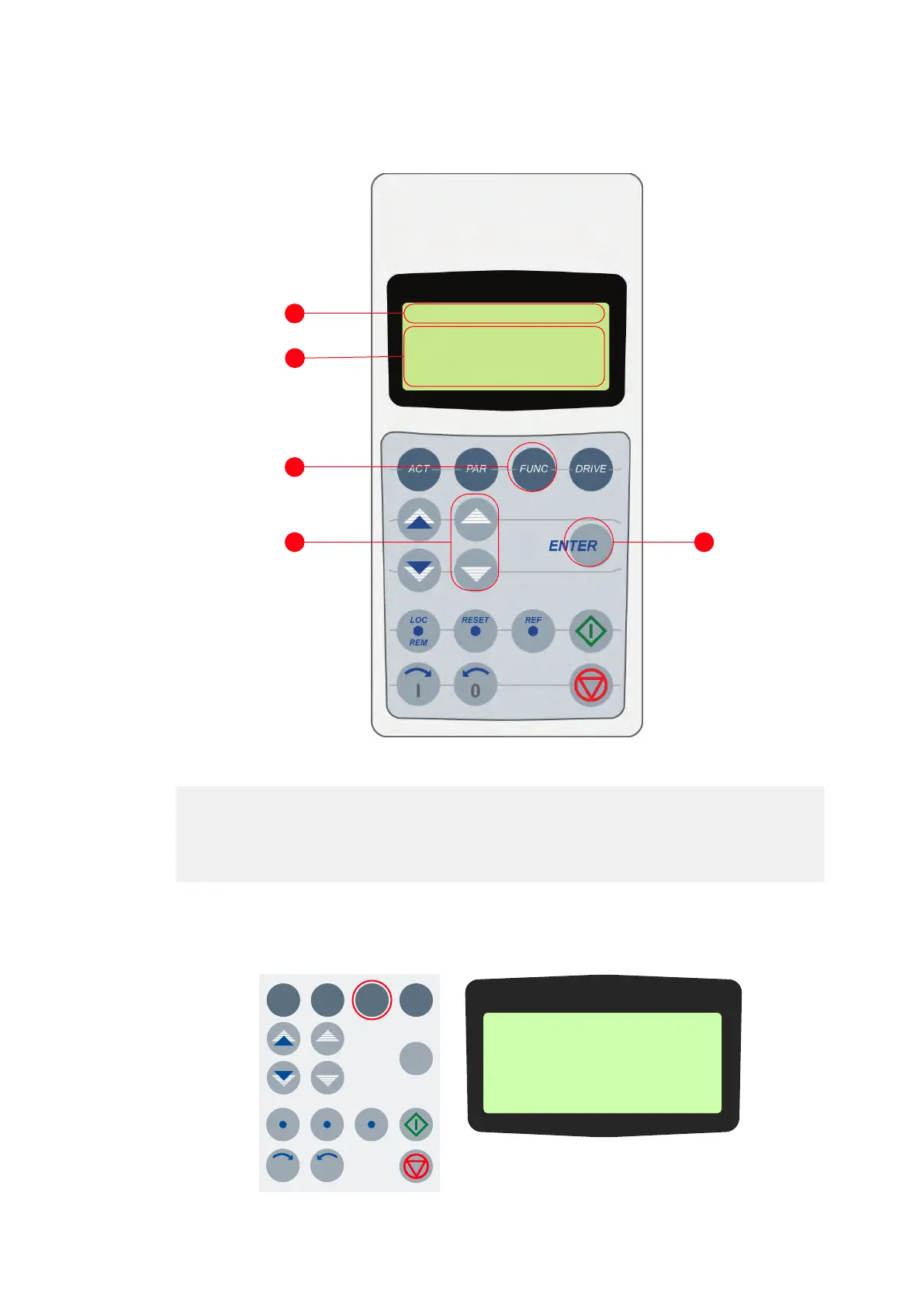

Figure 9-4 Control panel functions for Functions mode
9.2.4.1 Adjusting the display contrast
1. To enter the functions mode, press the FUNC key.
(1) Status line
(2) Selectable functions
(3) Selection key for functions mode
(4) Slow navigation key for selecting a
line (and adjusting the contrast)
(5) Enter key for confirming
the selection
1
2
3
4
5
1 L -> 0.0 rpm
UPLOAD <= <=
DOWNLOAD => =>
CONTRAST 4
1 L -> 0.0 rpm
UPLOAD <= <=
DOWNLOAD => =>
CONTRAST 4
ACT PAR FUNC DRIVE
LOC
I0
RESET REF
ENTER
REM
