09 CDP CONTROL PANEL

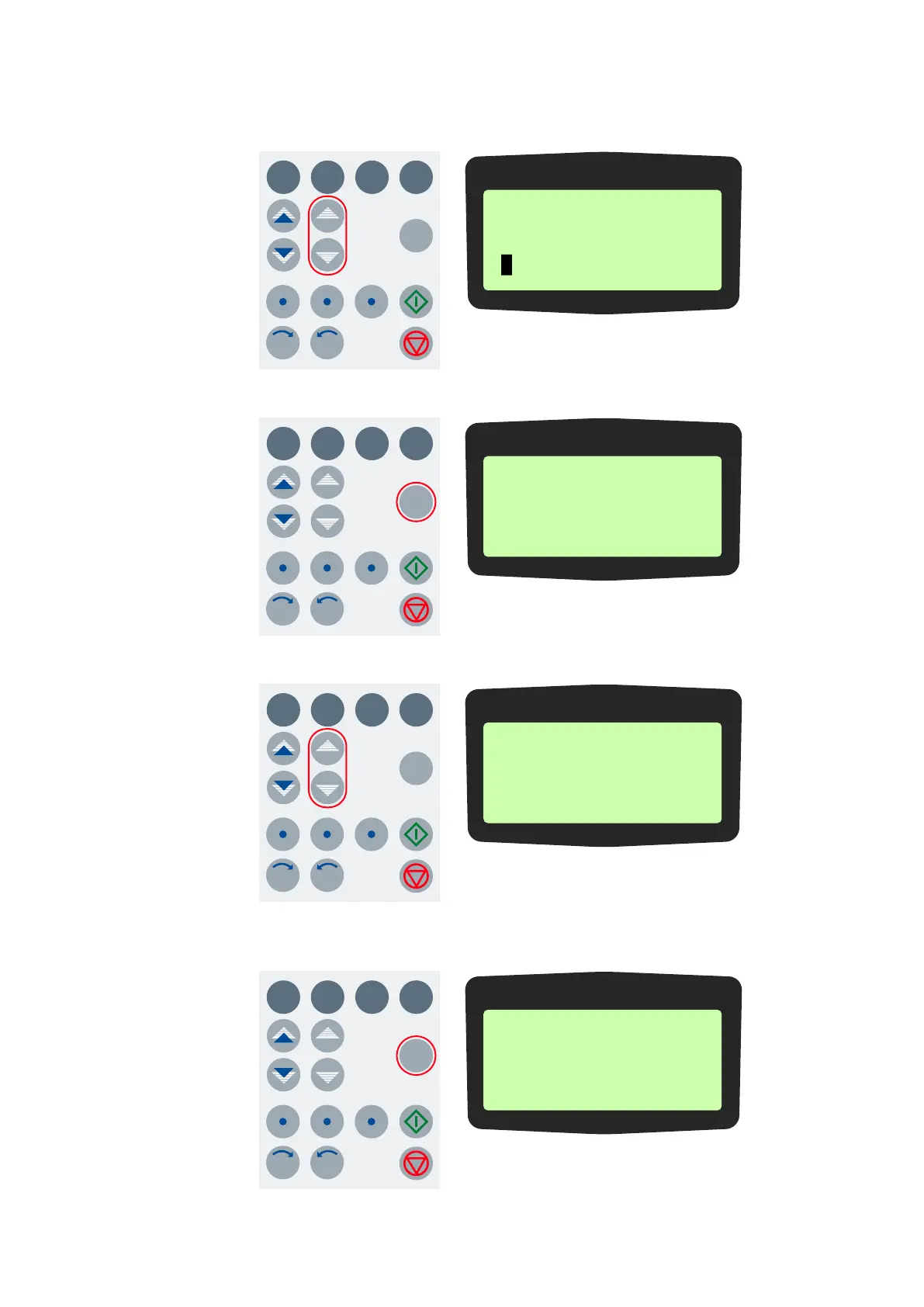

2. To select the contrast adjustment function, press the slow navigation
keys until the blinking cursor reaches the CONTRAST line.
3. Press the ENTER key.
4. To change the contrast, press the slow navigation keys.
5. To confirm the setting and to return to the actual signals display,
press the ENTER key.
