ABB ACS6000 - AC Busbar Joints - with Motorized Disconnector

05 MECHANICAL INSTALLATION
3BHS212794 E01 REV M ACS6000 USER MANUAL 110/278

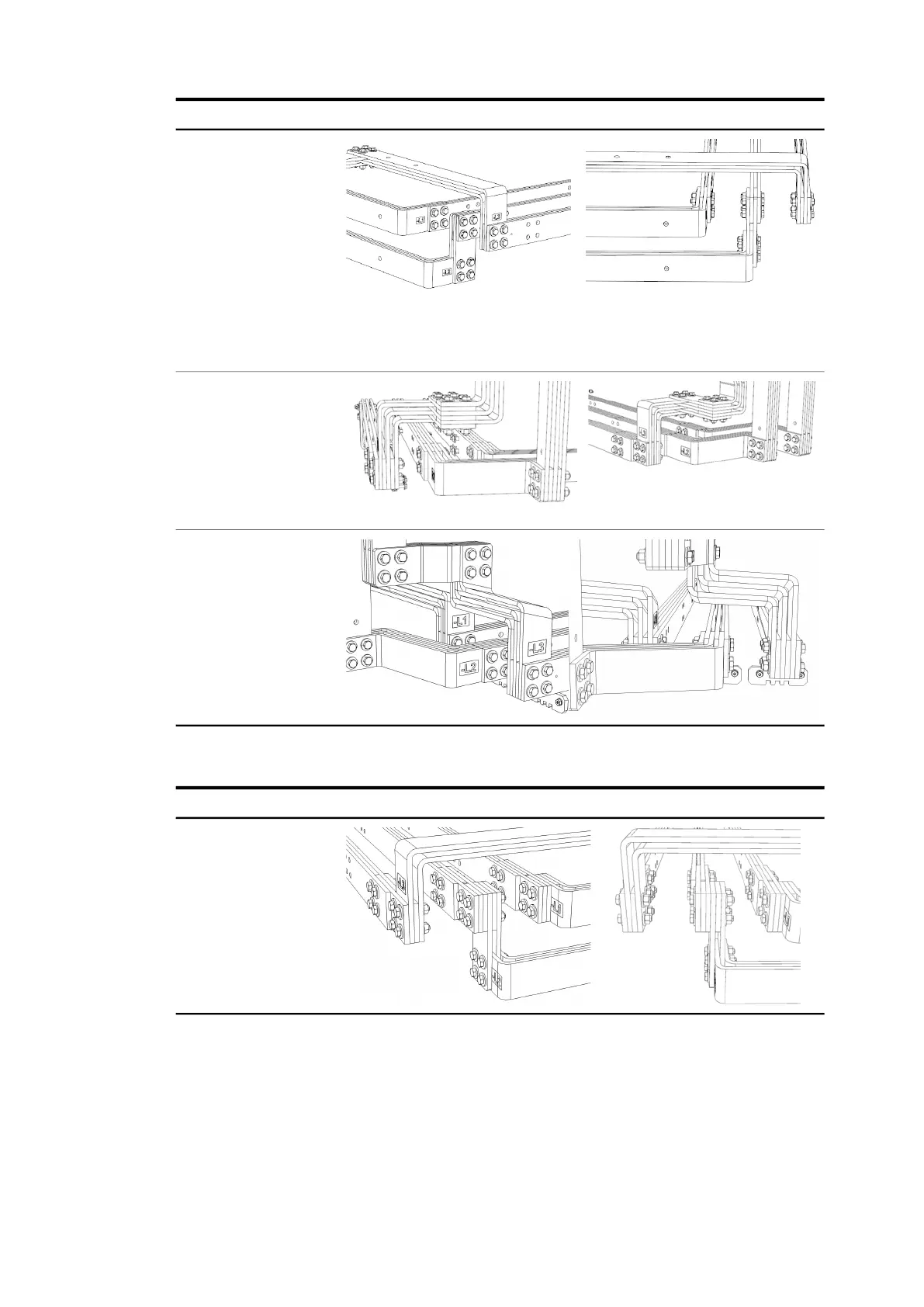

5.7.7 AC busbar joints - with motorized disconnector
• COU/TEU -
ARU/INU
• ARU/INU:
- 7, 9, 13
peak MVA
- 5 MVA
(with MOI)
• COU/TEU:
- 600 mm
- 1000 mm
• ARU/INU -
COU/TEU
• ARU/INU:
- 12 MVA
• COU/TEU:
- 1000 mm
• COU/TEU -
ARU/INU
• ARU/INU:
- 12 MVA
• COU/TEU:
- 1000 mm
Module Busbar joints
• ARU/INU -
COU/TEU
• ARU/INU:
- 5, 7, 9, 13
peak MVA
• COU/TEU:
- 1000 mm
Modules Busbar joints
