05 MECHANICAL INSTALLATION
3BHS212794 E01 REV M ACS6000 USER MANUAL 102/278
5. After adjusting a pipe joint, alternately tighten the bolts lightly.

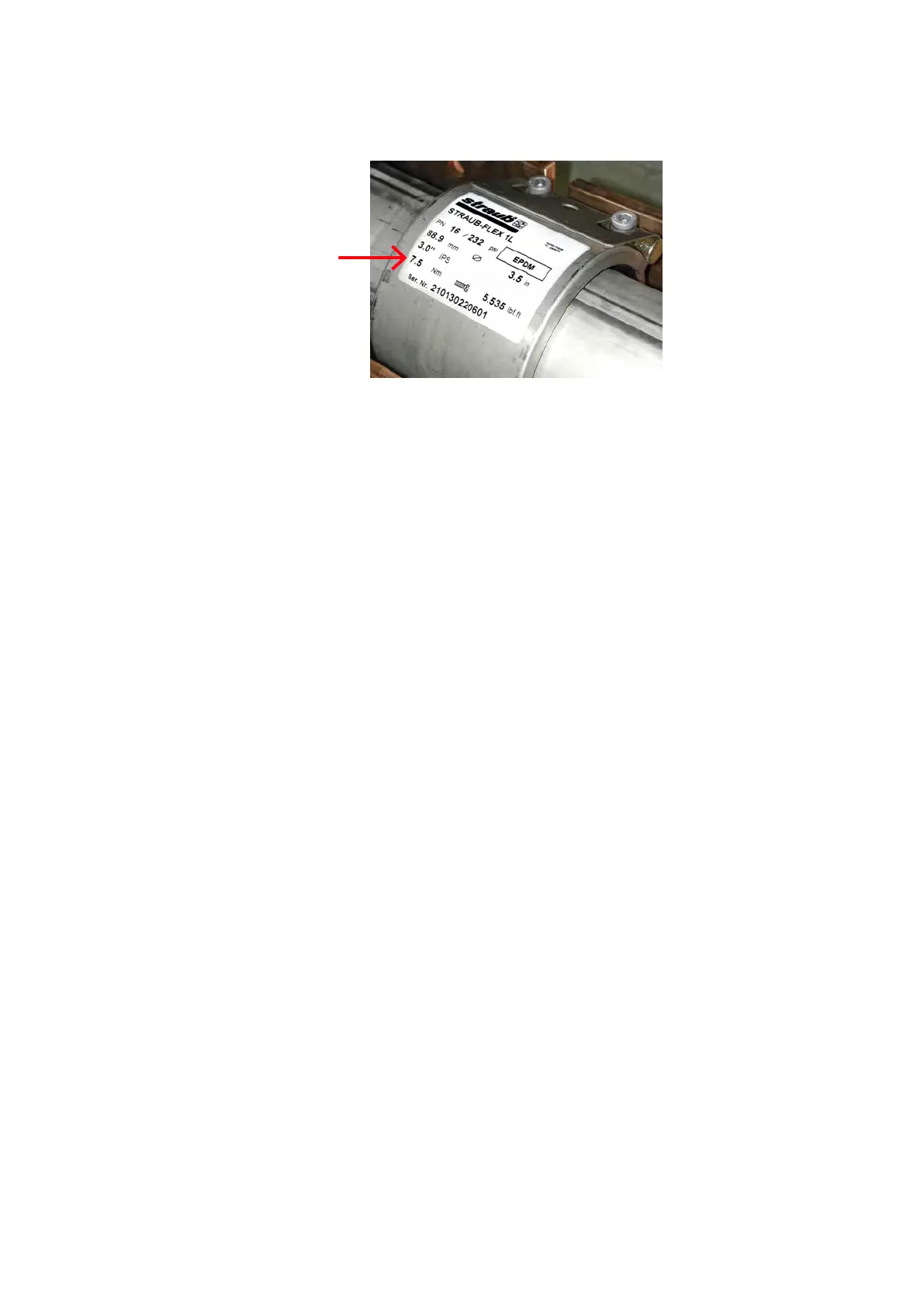

6. Tighten the bolts to the torque indicated on the pipe joint.
5.6.1 Removing a pipe joint
1. Loosen the bolts alternately but do not remove them completely.
2. Slide the pipe joint to the side.
Note: The sealing lip can touch the pipe end.
3. Turn and move the pipe joint smoothly.
4. Clean the pipe joint and treat the bolts with an appropriate lubricant
before refitting.
