05 MECHANICAL INSTALLATION
3BHS212794 E01 REV M ACS6000 USER MANUAL 120/278
5.8.3 Installing the transformers of air-to-air heat exchangers
This section applies to drives with separately delivered air-to-air
heat exchangers.
Note: For information on the number of transformers to be installed and
their fitting position, see “Appendix C – Mechanical drawings”.
1. Install the transformer and hood as illustrated.

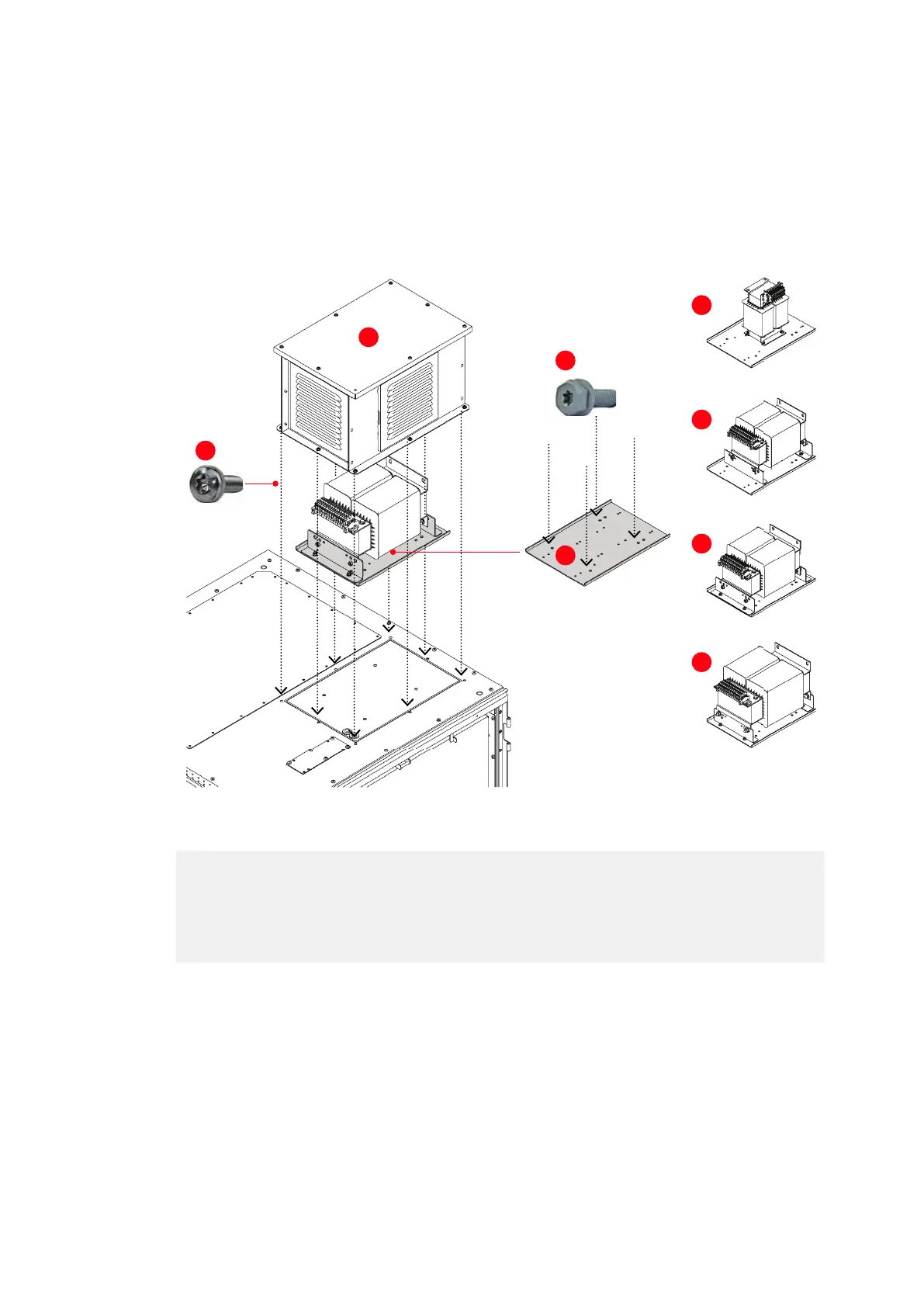

Figure 5-16 Installation example of transformers in an air-to-air heat exchanger
(1) 8 x M6x12 (HAQN401205P0257)
(2) Transformer hood
(3) 4 x M8x20 (9ABA450093R0310)
(4) Transformer connection plate
(5) 1.5 kVA transformer: ~17 kg
(6) 2.8 kVA transformer: ~49 kg
(7) 3.5 kVA transformer: ~49 kg
(8) 6 kVA transformer: ~66 kg
1
2
3
4
5
6
7
8
