05 MECHANICAL INSTALLATION
3BHS212794 E01 REV M ACS6000 USER MANUAL 112/278
5.8 Installing and removing air-to-air heat exchangers
This section describes how to install and remove the optional air-to-air
heat exchangers.
5.8.1 Installing air-to-air heat exchangers
For information on the number of air-to-air heat exchangers to be
installed and their fitting position, see “Appendix C –
Mechanical drawings”.

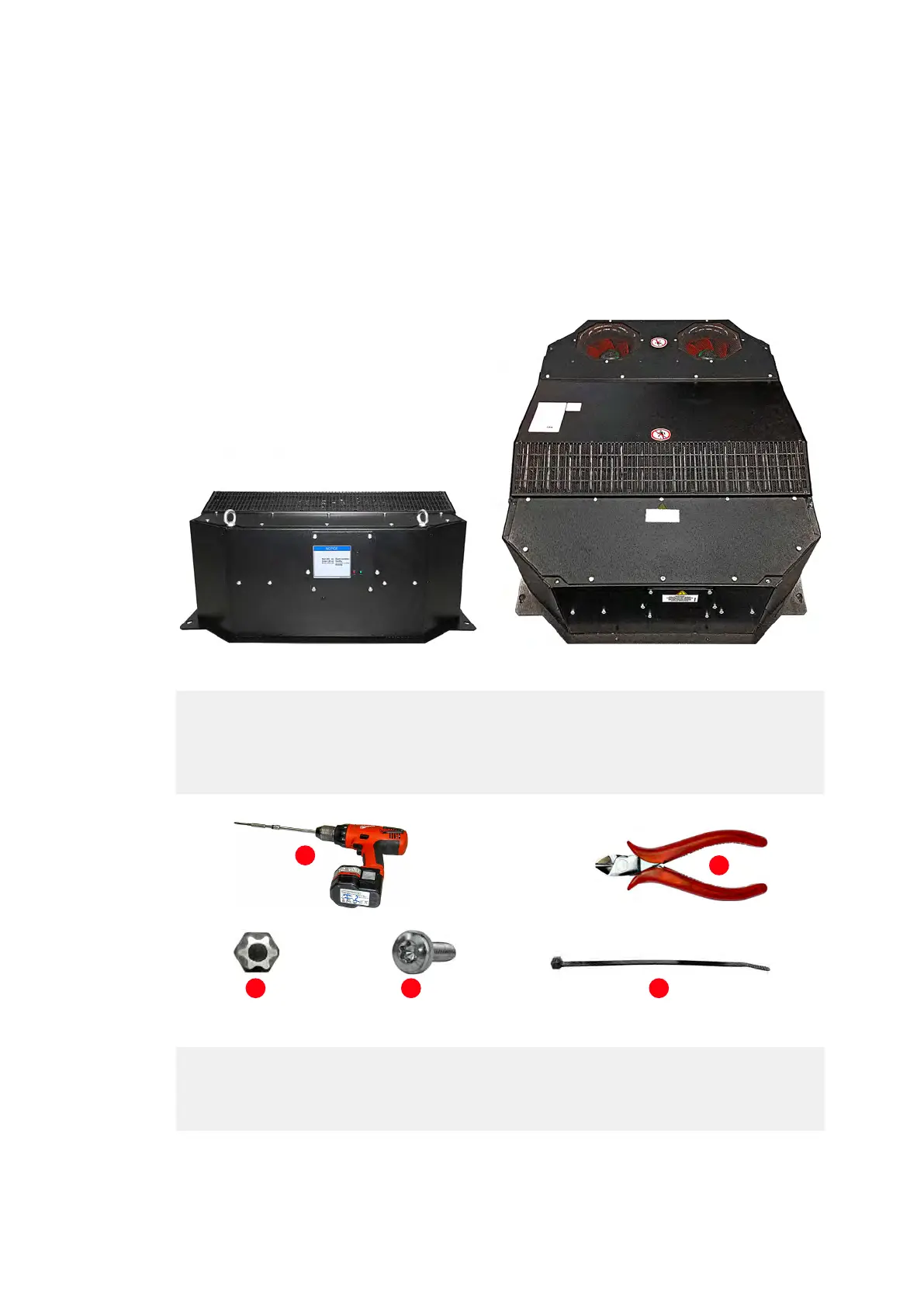

Figure 5-9 Air-to-air heat exchanger (type LT-5-5165-UL)
Figure 5-10 Tools for installing an air-to-air heat exchanger
• Weight: ~65 kg
• Length: 1025 mm
• Width: 750 mm
• Height: 316 mm
(1) Cordless drill
(2) Wire cutter
(3) Torx drill bit
(4) M6 x 12 Torx screw
(5) Cable tie
1
2
3 4 5
