3BHS212794 E01 REV M ACS6000 USER MANUAL 113/278
05 MECHANICAL INSTALLATION
5.8.1.1 Installation
Procedure:

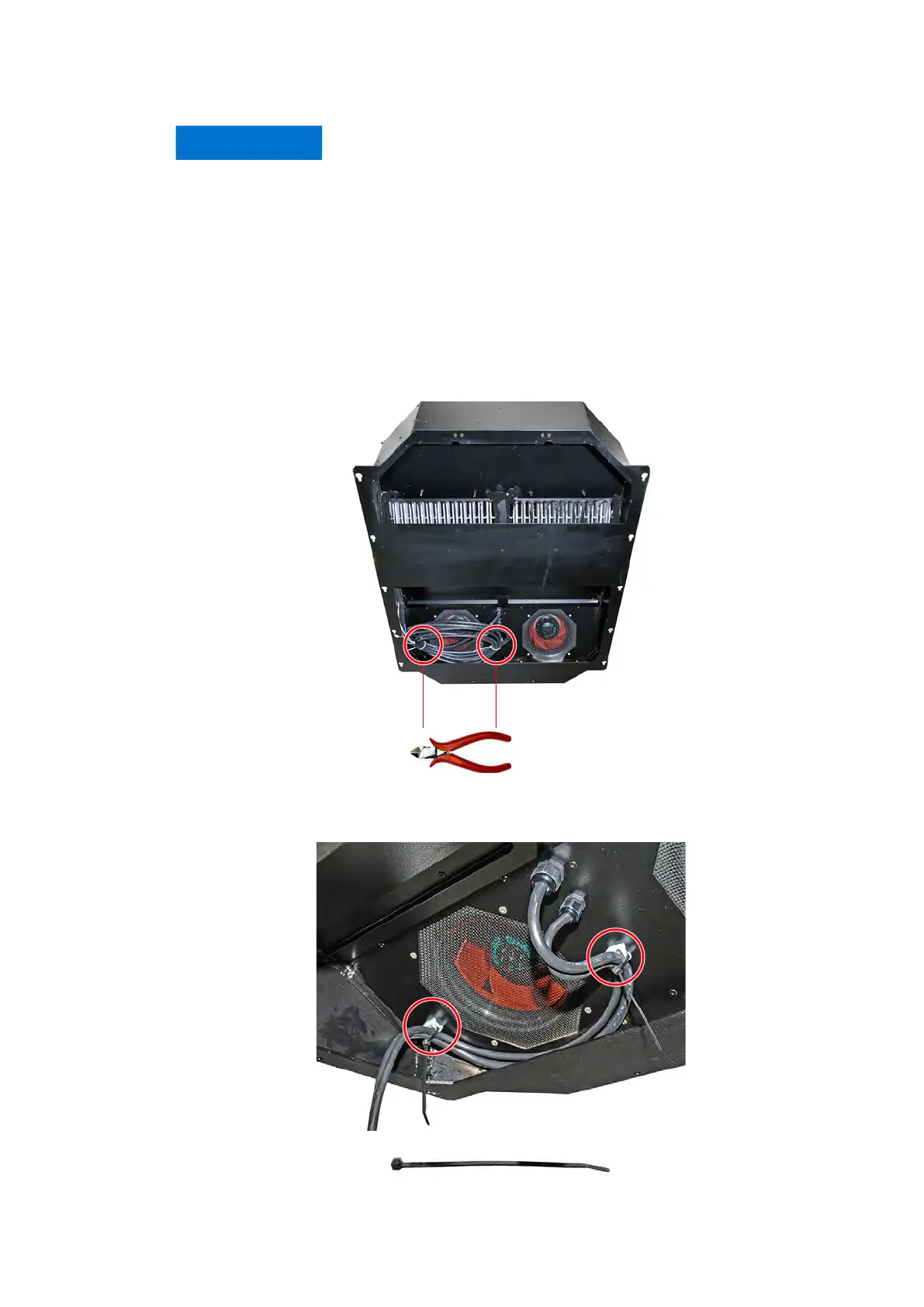

1. Before lifting the heat exchanger onto the roof, cut off the cable ties.
2. Loop the cables as illustrated and fasten them to the cable tie
mounts (circles).
▲NOTICE
Risk of damage!
Incorrect installation of the heat exchanger cables can cause:
• Ground fault
• Unexpected shutdown of the drive
• Damage to the heat exchanger
