3BHS212794 E01 REV M ACS6000 USER MANUAL 153/278
06 ELECTRICAL INSTALLATION

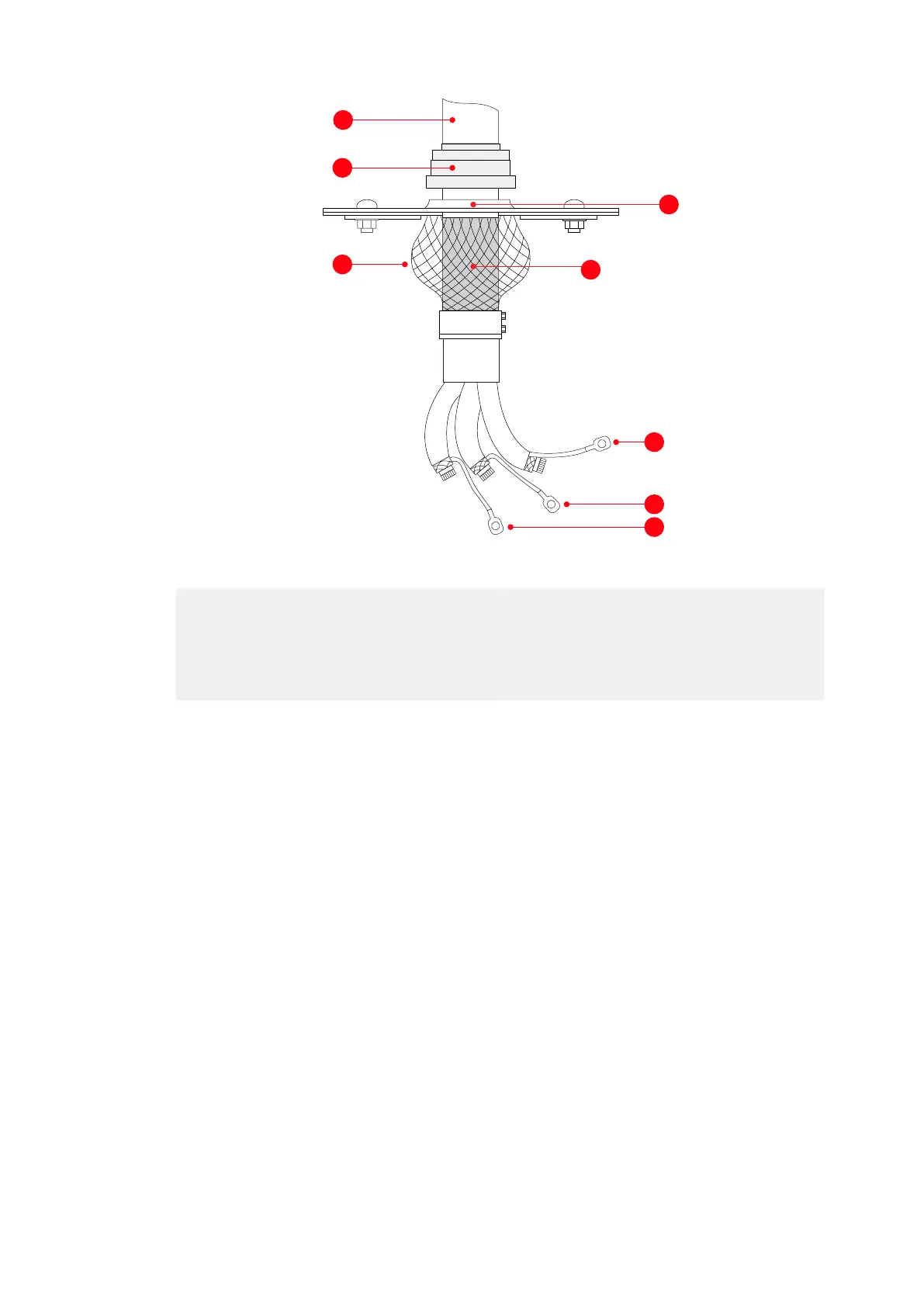

Figure 6-29 Preparing control cables for EMC plates
6.8.5 Routing cables in a WCU
For the available cable routing options in WCU800 and WCU1400, such as
top entry and bottom entry, see “Appendix C – Mechanical drawings”.
6.8.6 Routing cables in a COU cabinet
The serial communications and encoder cables are connected inside
a COU.
Top and bottom cable entries are covered with blanking plates.
Materials for cable fitting, EMC requirements and sealing are
not supplied.
(1) Outer cable sheath
(2) Grommet
(3) EMC sleeve
(4) Plate
(5) Cable sheath removed to expose
cable shield
(6) Conductor screen extension to
connect to PE terminal
1
2
3
4
5
6
6
6
