8.4.3.1 Operating modes
Several power operating modes (POMs) are possible in full-power drive
mode and in half-power drive mode. The selection of the POM and the
control of the inverter output disconnectors is done either by software or
a hardware interface on the drive (project specific).
For project specific instructions please consult the corresponding
application note.
Fig. 8-4 shows typical full- and half-power modes. For further variants,
refer to the Signal and Parameter Table document.

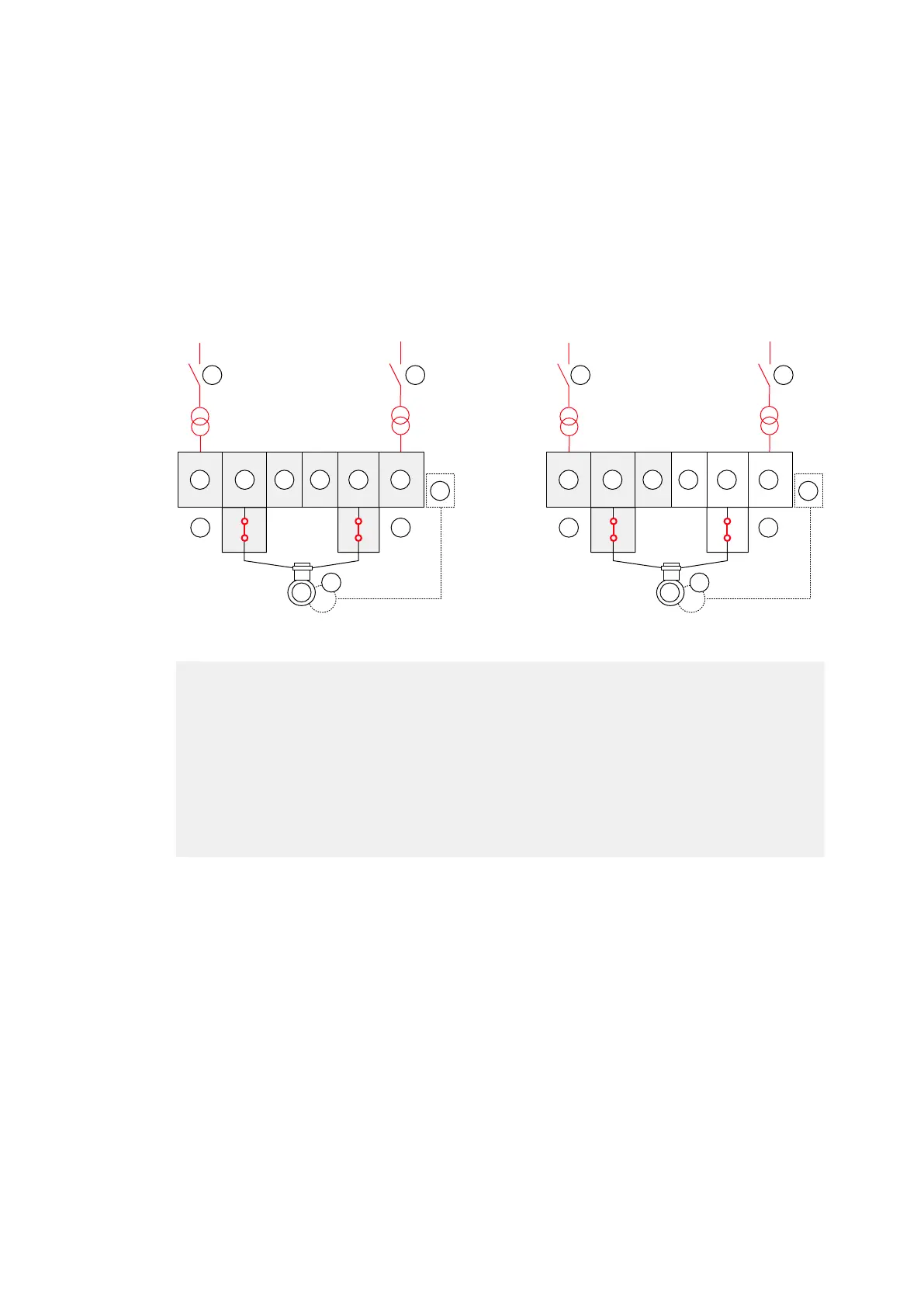

Figure 8-4 Typical full-power (A) and half-power (B) drive modes
8.4.3.2 Semi-redundant drive control panel
The semi-redundant drive control panel can be operated in both local and
remote mode. For more information, see the appropriate
application note.
(1) MCB 1
(2) MCB 2
(3) ARU1
(4) INU1
(5) CBU1 or BCU1
(6) CBU2
(7) INU2
(8) ARU2
(9) EXU
(10) Output isolator 1
(11) Output isolator 2
(12) Motor
(13) Synchronous motor
AB
1 12 2
3 34 45 56 67 78 8
9 9
10 1011 11
12 12
13 13
