10 PREVENTIVE AND CORRECTIVE MAINTENANCE
3BHS212794 E01 REV M ACS6000 USER MANUAL 268/278

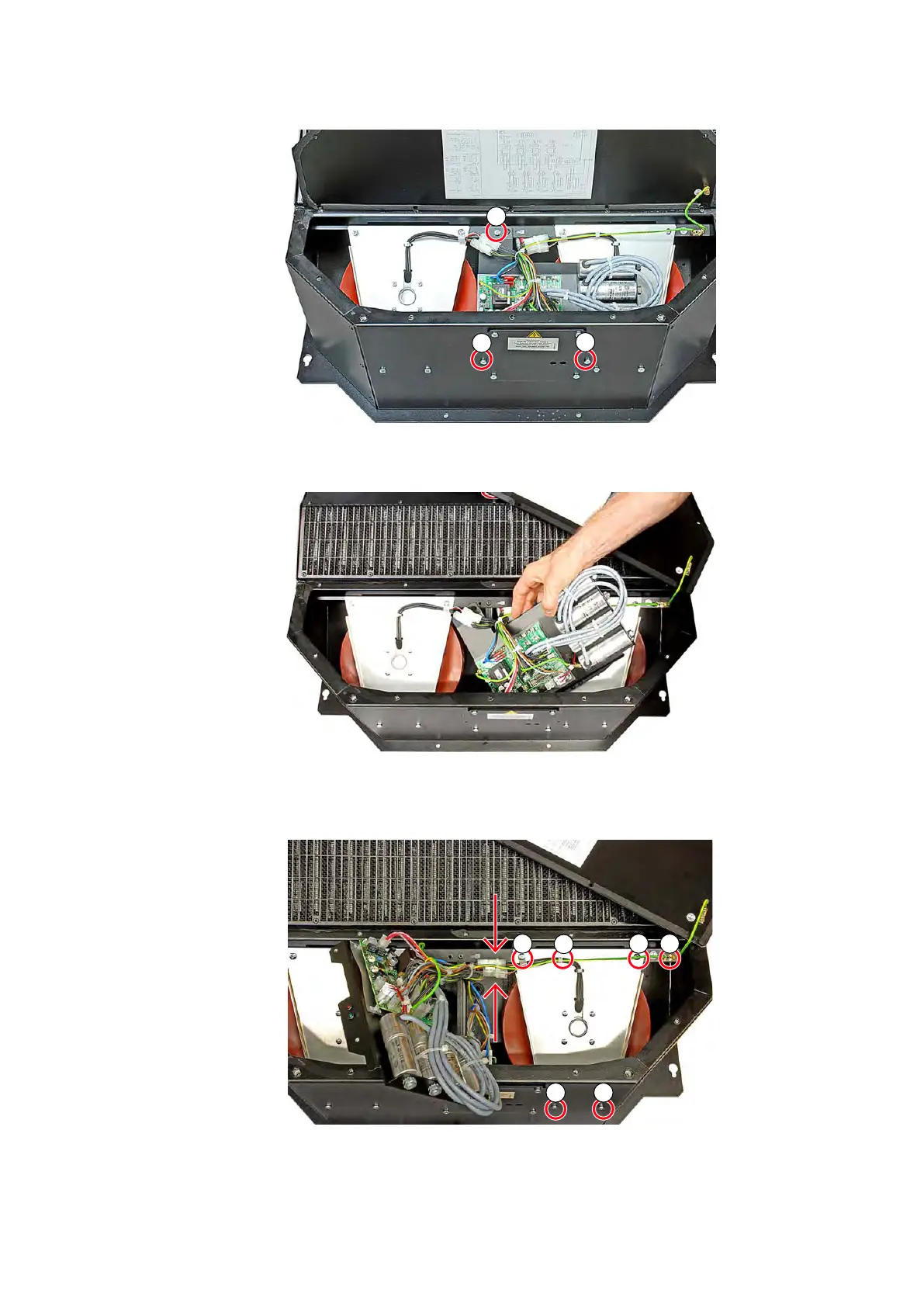

3. Unscrew the circuit board mounting bracket (1, 2 and 3).
4. Take out the circuit board mounting bracket and place it on the heat
exchanger housing.
5. Disconnect the ground wire (1), cut off the cable tie (2), unplug the
plug-in connectors (arrows), and unscrew the screws (3, 4, 5 and 6)
fixing the fan mounting bracket to the housing.
1
2
3
1
3
4
56
