R3132 Series Spectrum Analyzer Operation Manual
4.2.2 GPIB Setup
4-9
4.2.2 GPIB Setup
(1) Connecting the GPIB

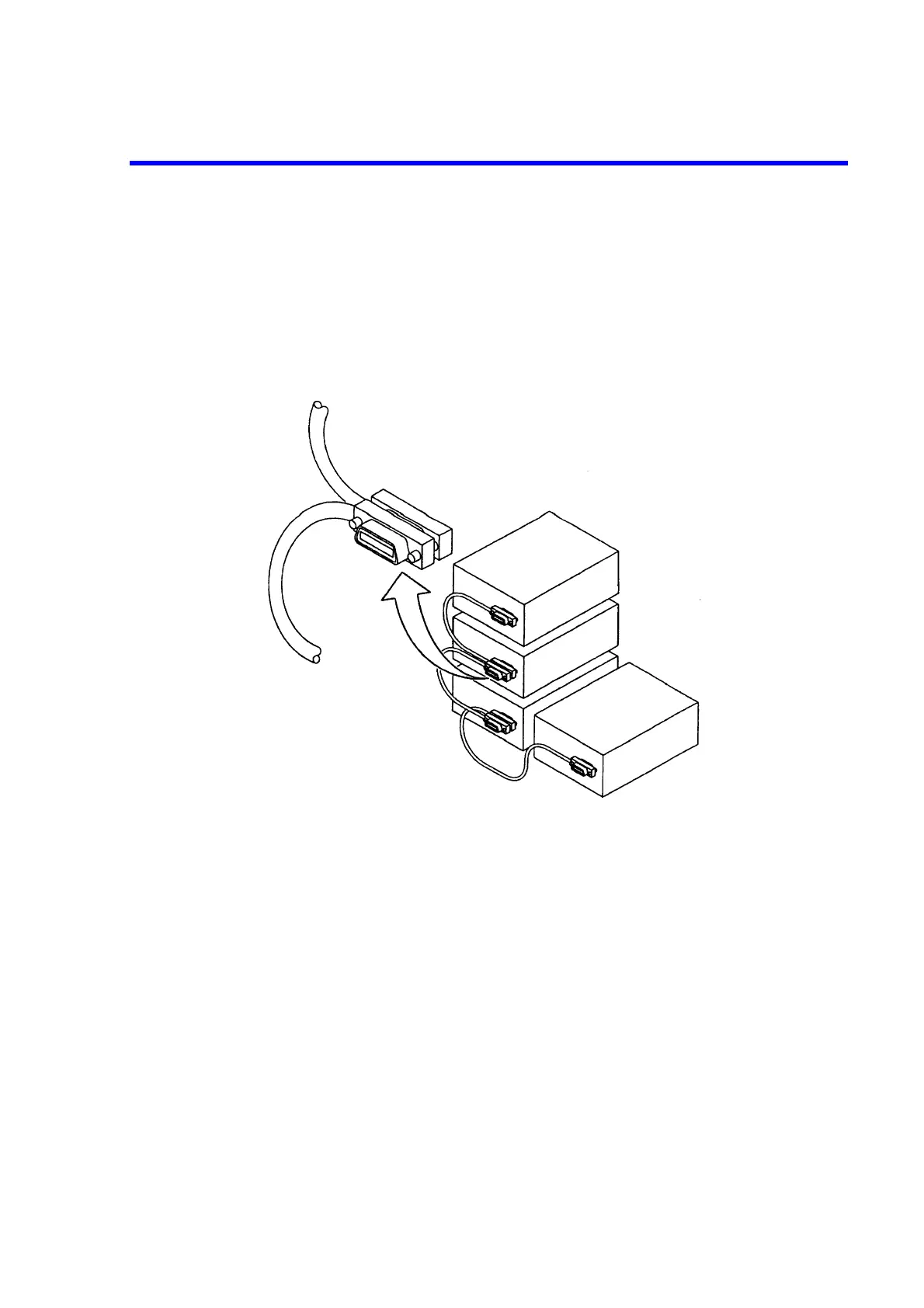

The following figure shows the standard GPIB connector and how it can be connected in parallel,
or “stacked” with other connectors. Attach the GPIB connectors and secure them by tightening the
screws to prevent them from coming apart during use.
The following conditions should be observed when using a GPIB interface:
• The total GPIB cable length in a single bus system must not be more than 20 m (you can calculate the
current cable length using the formula total length = n x 2 m, where, n is the number of devices to be
connected, including the GPIB controller).
• No more than 15 devices can be connected to a single bus system.
• There are no restrictions concerning the method of connection between cables. However, no more
than three GPIB connectors should be connected to a single device, since more than this may damage
the connector mounting due to excessive strain.
(Example) The total cable length in a system with five devices should be 10m or less (2 m x 5 de-
vices = 10 m). There is no restriction on the length of the cables between the individual
devices as long as the total length does not exceed 10 m. However, if you connect 10
devices or more, make sure that at least some of the cables attaching the devices are less
than 2 m so that the total is less than 20 m.
