R3132 Series Spectrum Analyzer Operation Manual
2.1.1 Front Panel
2-8

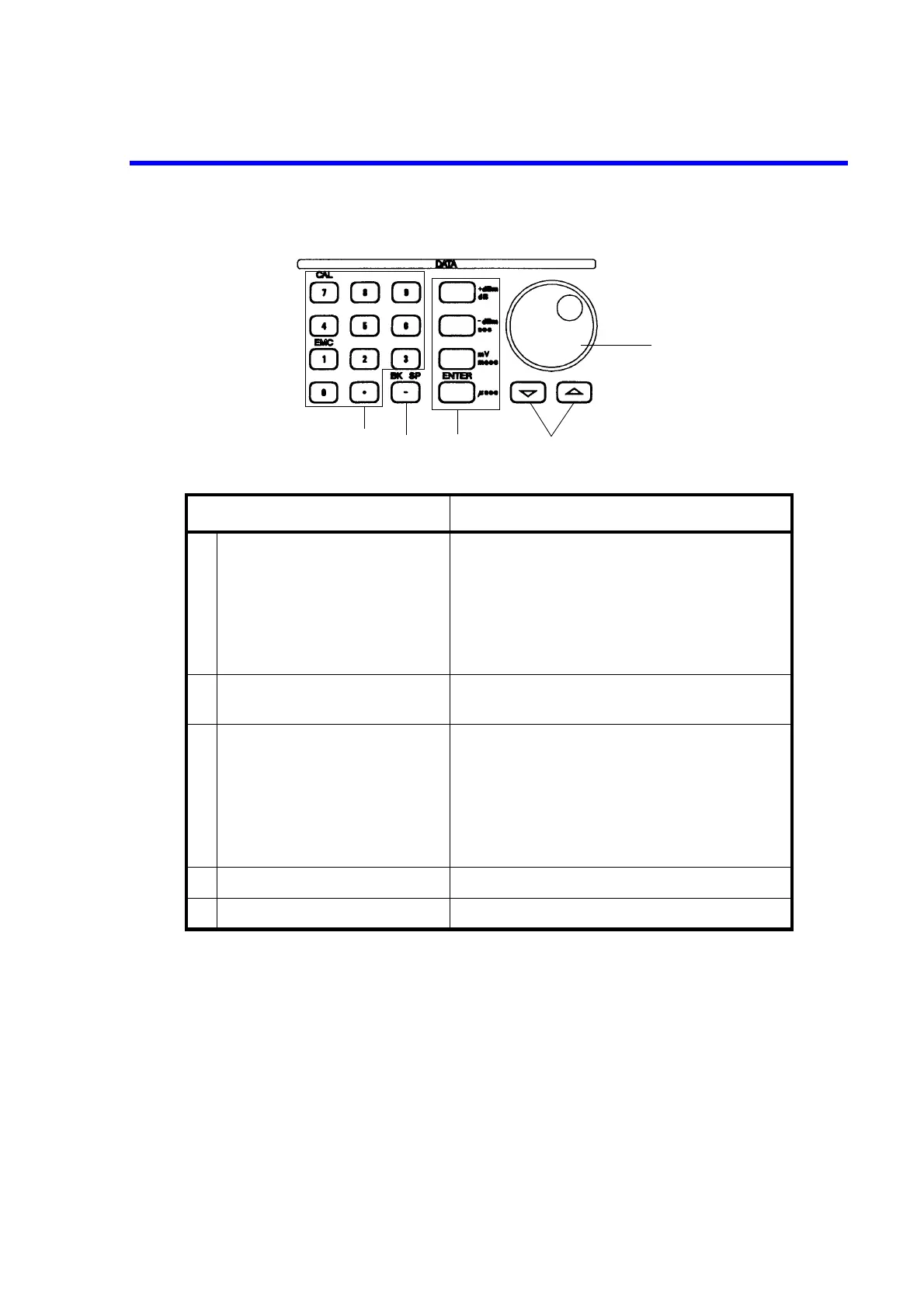

(5) DATA Section
Control Description
1 Numeric keys
(additional function keys)
EMC
CAL
There are ten number keys (0 through 9) and a deci-
mal point key. You can access additional functions
by pressing the
SHIFT
key
Used to set up the conditions for an EMC measure-
ment
Displays the Cal menu
2
-(BK SP)
key Used to remove data you have entered or to enter a
minus(-) sign
3 Units keys
GHz
key
MHz
key
kHz
key
Hz (ENTER)
key
These are used to select a unit and enter a value
Sets GHz, + dBm or dB
Sets MHz, - dBm, sec, V or W
Sets kHz, mV, msec or mW
Sets Hz,
µ
sec, CH,
µ
V or
µ
W
This key is also used to specify the channel and as a
general
ENTER
key
4 Step keys Used to enter data in steps
5 Data knob Used to make fine adjustments when inputting data
123 4
5
GHz
MHz
kHz
Hz
CH
