COMMUNICATION AND VISUALIZATION TECHNOLOGIES
via Pastrengo, 7/C – 24068 Seriate (Bergamo)

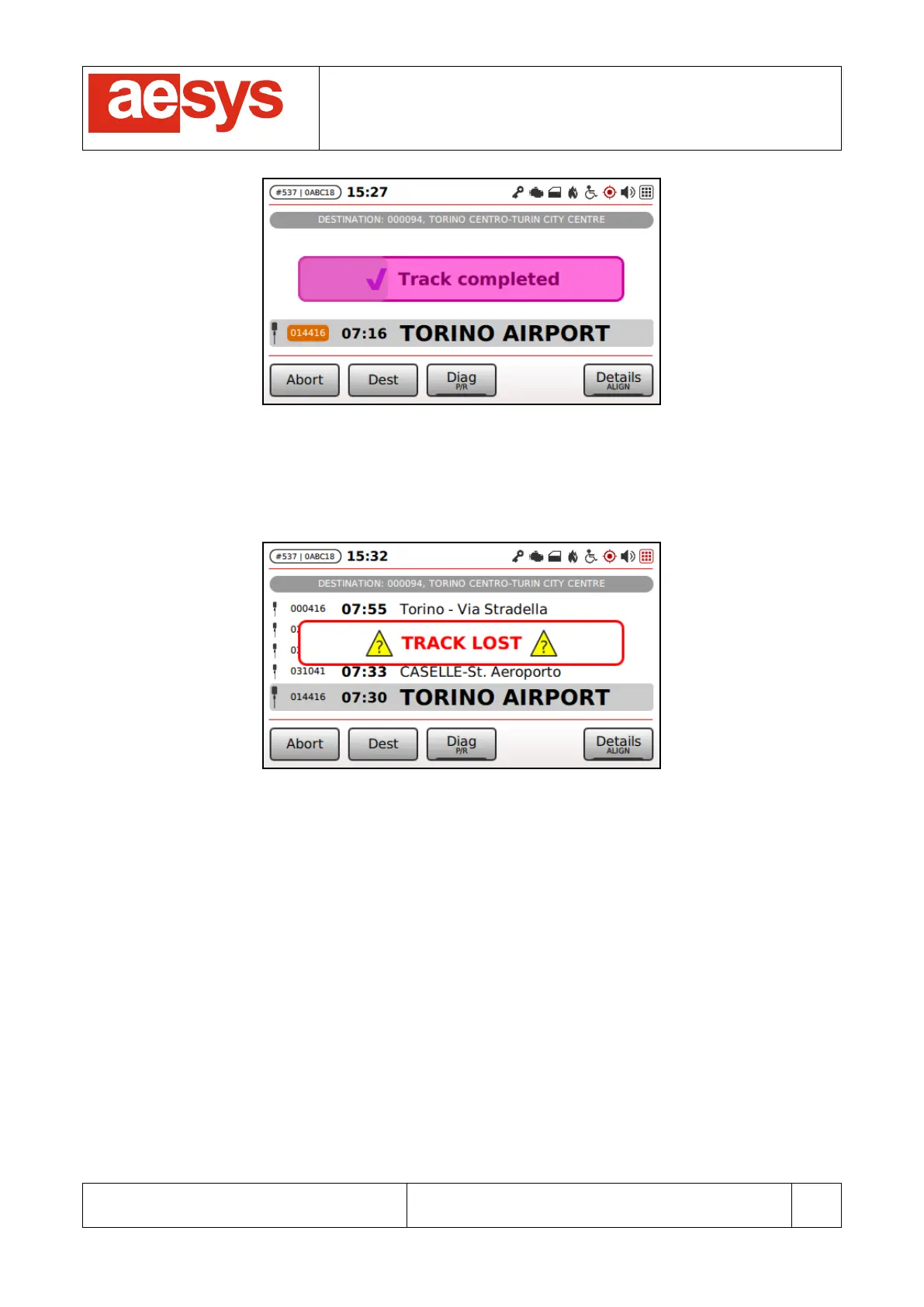

Figure 44: Trip completed screen
If, during the navigation, the path-recognition system is able to recognize the expected track no more, then a
proper message is presented on screen (Figure 45).
Figure 45: Navigation lost.
The navigation resumes automatically as the system detects the expected track again. The system can be
forced to “align” the path-recognition algorithm to a different stop/next-stop simply selecting the stop and
issuing the “Align” function.
If allowed by configuration, the driver can be substituted without leaving the current service, pressing the
button “Driver”.
The currently selected service can be abandoned at any time, pressing the button “Abort” (thus cancelling
the execution of the selected service). A proper confirmation message is shown on screen before aborting
the service (Figure 46).
