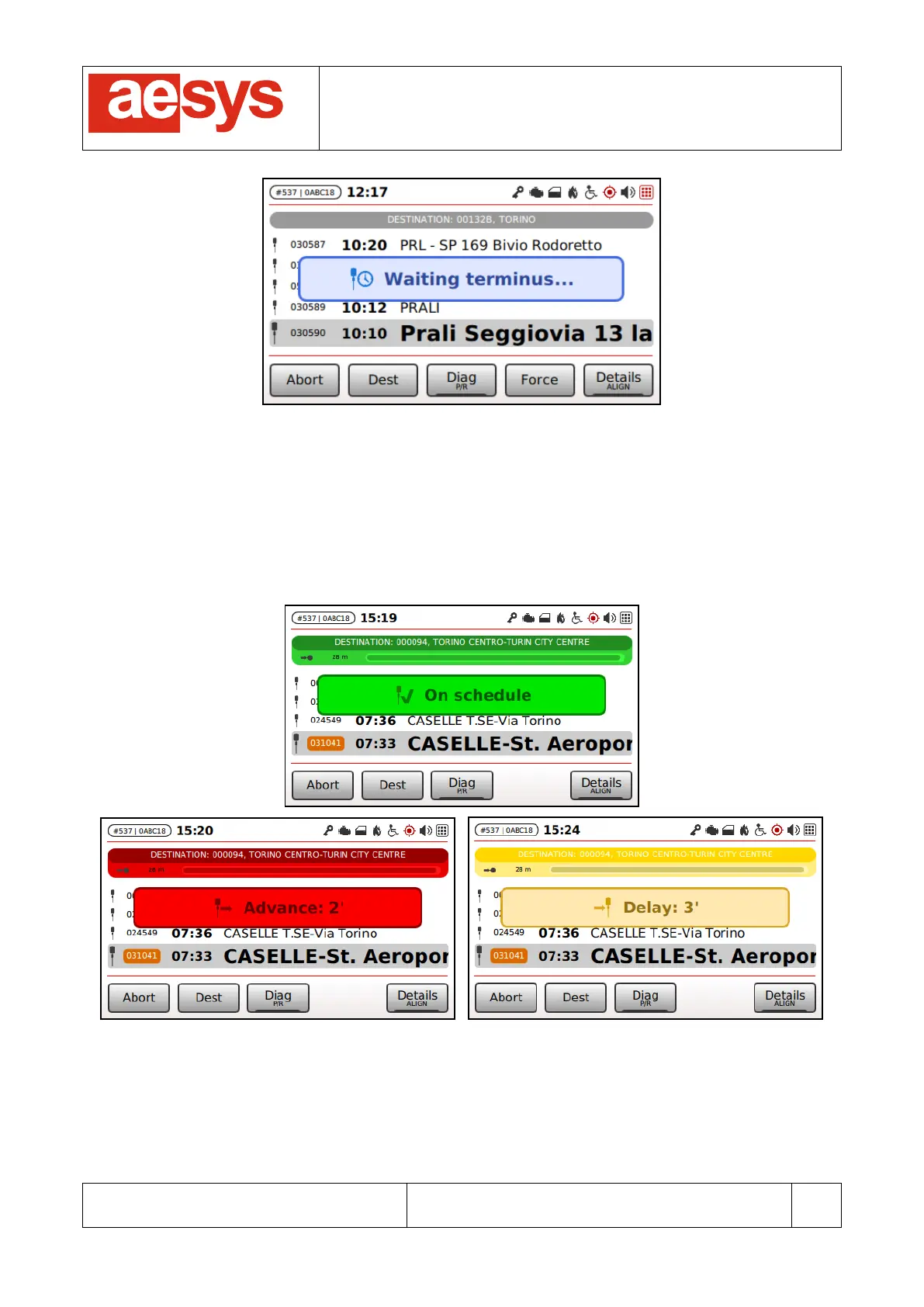

Figure 42: Waiting initial navigation terminus
In such a case, the service is commenced as soon as the bus reaches the location of the starting terminus.
Anyway the service start can be forced by pressing “Force” or “Align” (eventually on a different stop).
When a stop is detected (that is the bus is within the area programmed for a stop) the visualization is turned
into one of those depicted in Figure 43, depending on the service time profile (on schedule, on advance, on
delay).
Figure 43: Stop detection
When the current trip is completed, the screen in Figure 44 is shown for some seconds: after that the
subsequent trip in the current service (if any) is automatically commenced, otherwise the service is closed
and the system returns to the main screen.
