Cable Description
4' cable for mover light
9-1/2' cable for hopper light
33' cable for the spout light
2. Route the cables along the conveyor tube towards individual lights. For mover light, tuck the 4’ cable
underneath the conveyor tube and attach to the weather guard mount bar.
3. Attach the orange connectors to the lights.

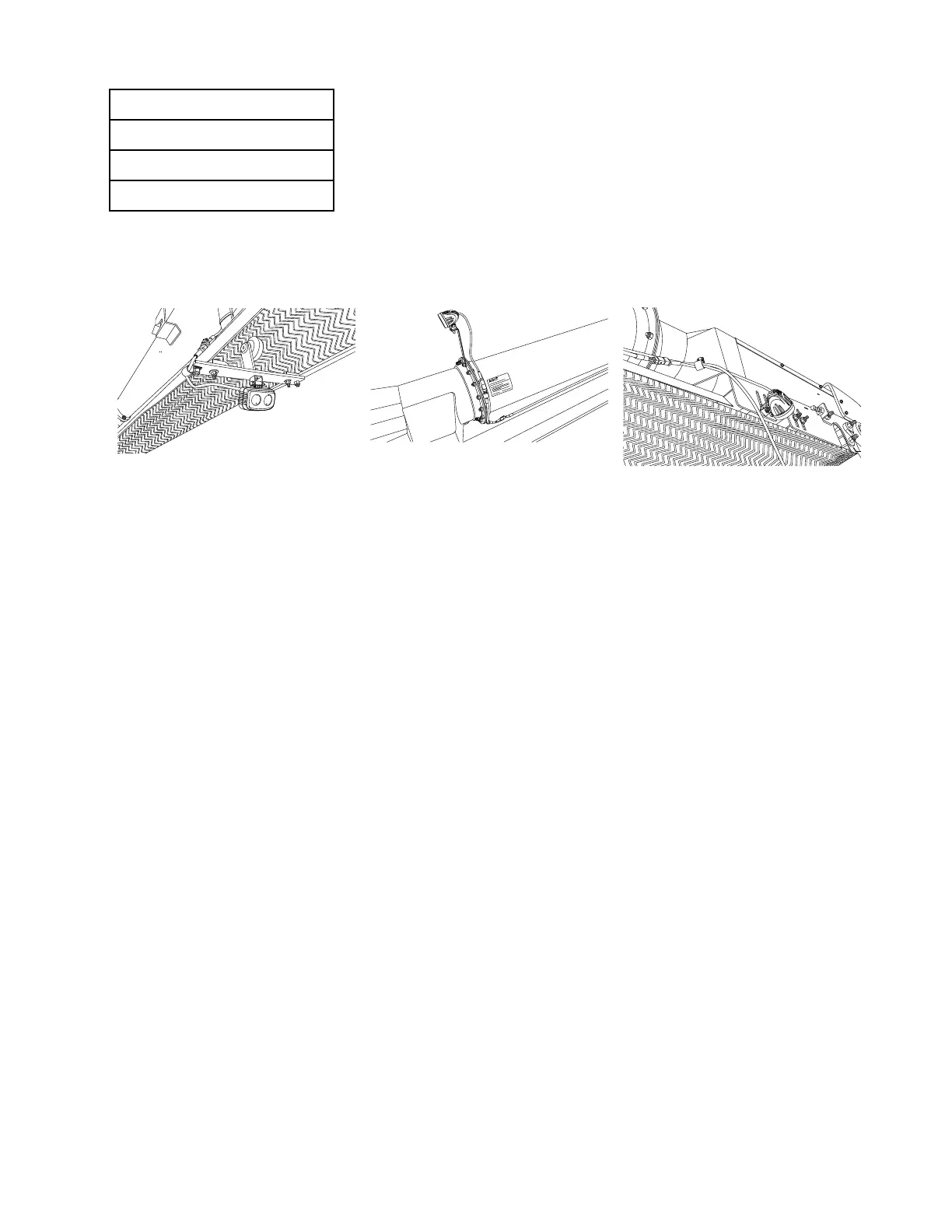

Mover Light
Hopper Light
Spout Light
Secure Cables and Wiring
After the conveyor is completely assembled, place finishing zip-ties on all cables and wiring to ensure all lines
are snug in place.
