4. Secure the relay to a nearby support bar using Tek screw.
5. Connect engine harness red wire (6) to the clutch pigtail red wire using butt connector. Crimp the butt
connector and gently tug on both sides of the connector to test the integrity of the joint.
6. Use heat shrink tubing to completely isolate the joint from the environment.

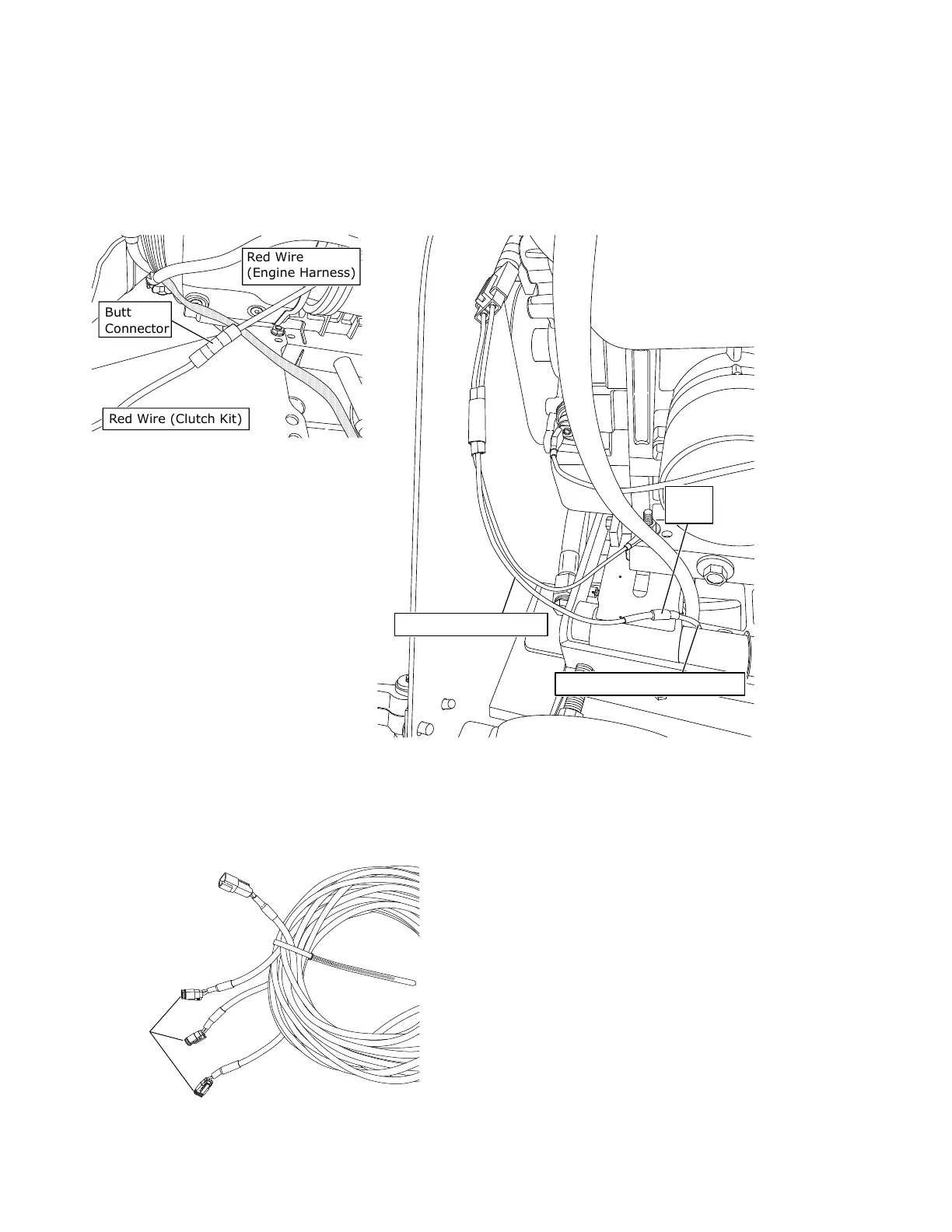

Figure 86. Clutch Wiring
Butt
Connector
Red Wire (Clutch Kit)
Red Wire
(Engine Harness)
Red Wire (Clutch Kit)
Red Wire (Engine Harness)
Butt
Splice
Lighting Harness
1. Attach the female connector (Figure 87) to the lighting harness cable (3), see Figure 81.
Figure 87. Lighting Harness
To the Control Box
To the Lights
