8210-00020 R1 147
Engine Harness
Note
• The engine wiring harness has 3 plugs and a bare wire.
• A pre-wired relay connector is part of the engine wiring harness.

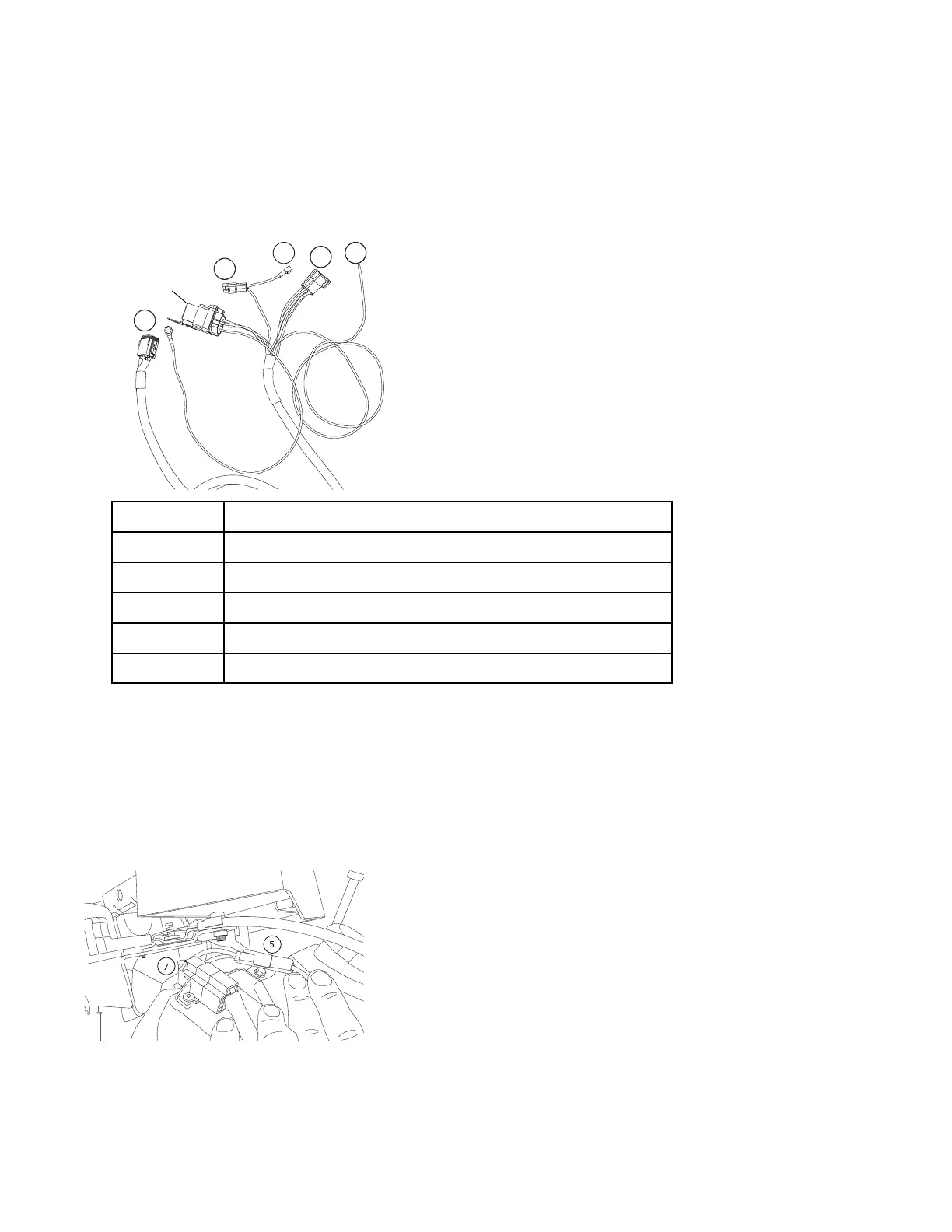

Figure 84. Engine Harness
8
7
6
5
4
Relay
Item
Description
4
8 Pin Female Deutsch (Control Box Connector)
5
1 Pin Delphi Male (Auxiliary Power to Motor)
6
Female Connector (to Fuel Pump, if required)
7
5 Pin Delphi (Engine Connector)
8
Bare Red Wire (Clutch Control)
1. Connect 8 pin connector (4) to the engine harness cable (2), see Figure 81.
2. Route the engine harness along the conveyor tube towards the gas drive.
3. Connect plugs 5 and 7 to the corresponding engine plugs.
Note
If motor comes with a key plugged in, remove key and ignition before connecting plugs 5 and 7.
Figure 85. Example of Engine Wiring Connections
7
5
Note
Locations of the plugs 5 and 7 vary depending on the engine model.
FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR 3. ASSEMBLY
