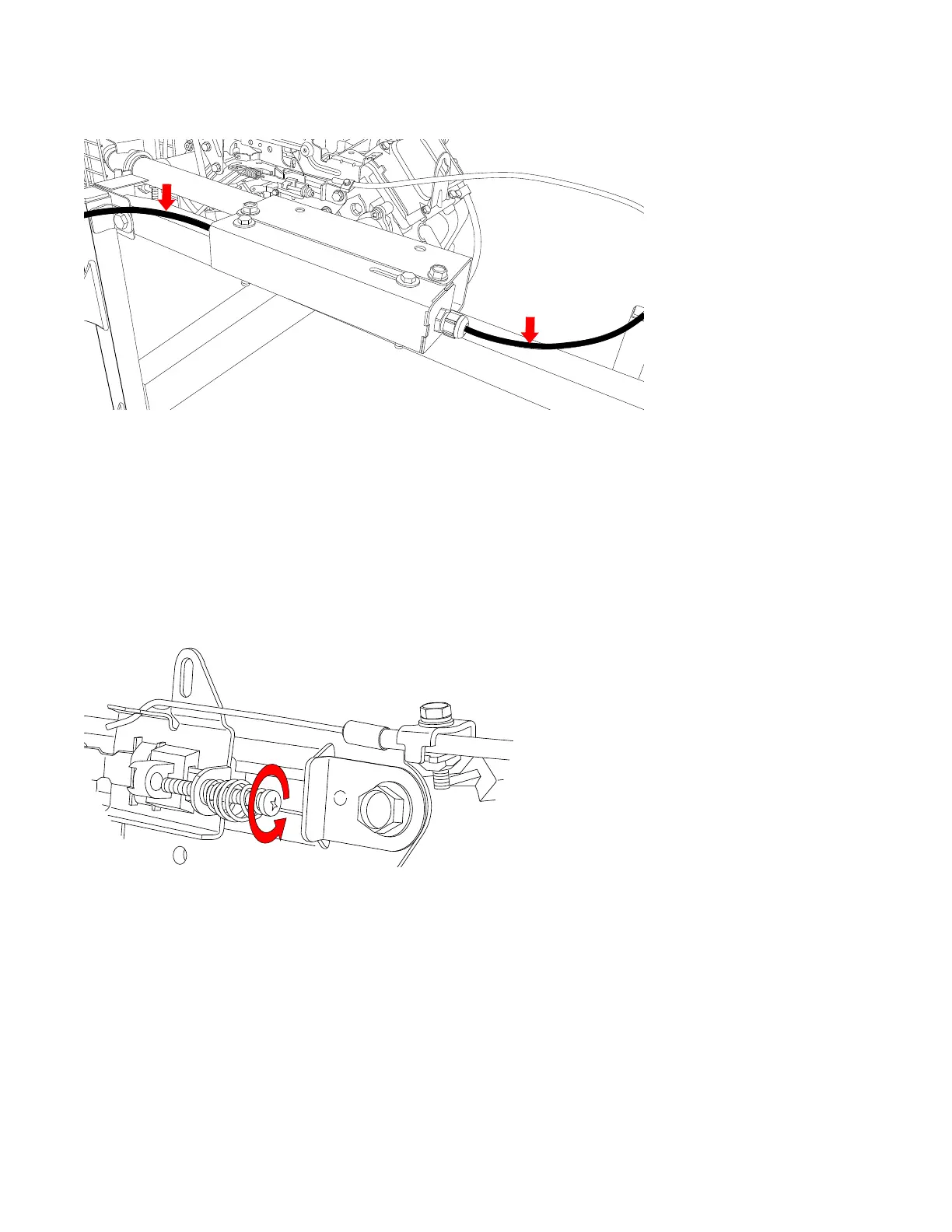

14. Using the supplied P-clips and tek screws, attach the wires to the cross brace in the positions shown so they
are out of the way and do not become entangled with the motor.
15. Adjust the maximum rpm.
Note
This can only be done if the mover and the conveyor belt has already been installed.
a. Start the engine and increase to maximum throttle.
b. Check the tachometer on the motor. The maximum rpm should be 3600 rpm.
c. If necessary, adjust screw to achieve the target rpm. Turn the screw counter clockwise to lower the
engine rpm.
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
