8210-00020 R1 145

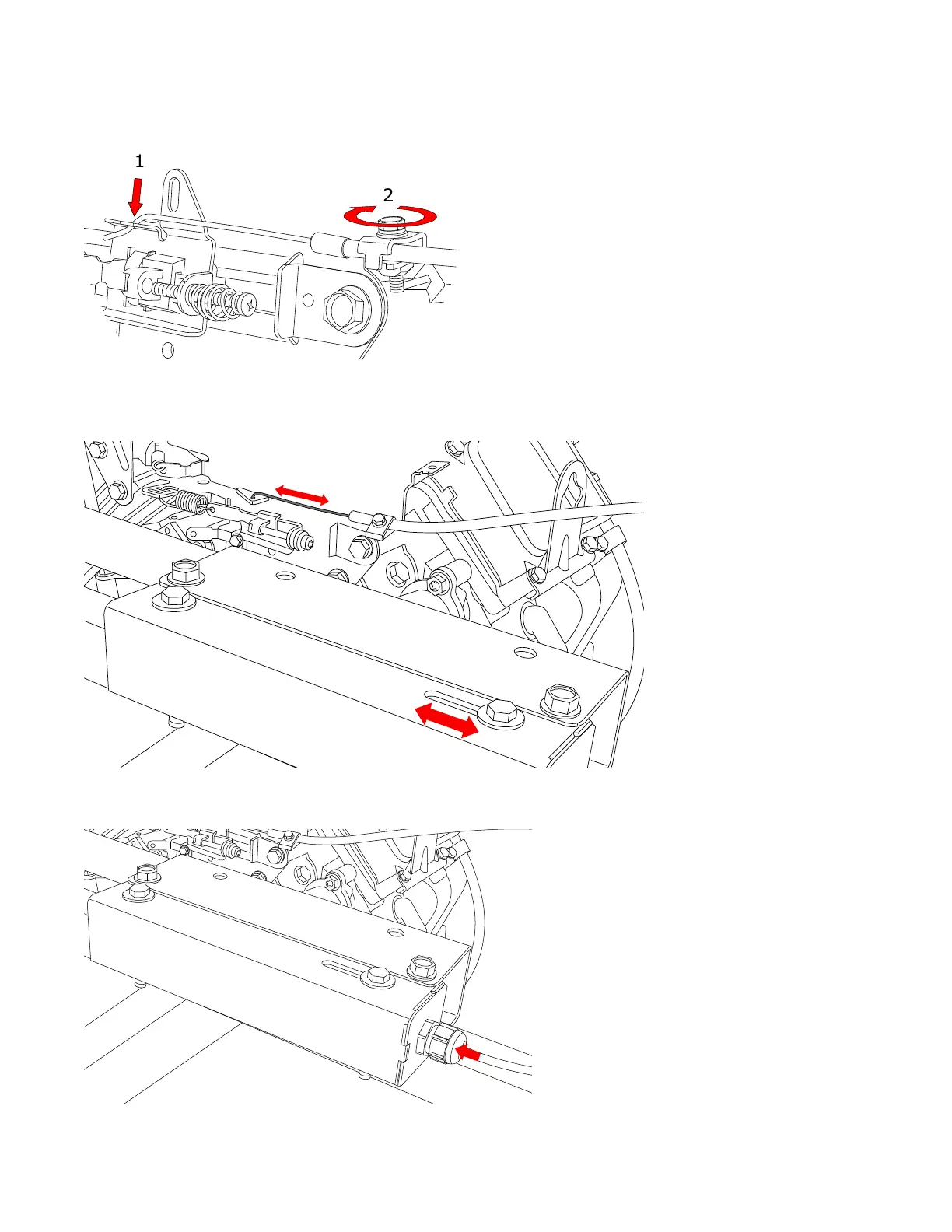

secure the throttle cable in the clamp by tightening the bolt. Tighten only enough to hold the casing but do
not restrict the movement of the wire.
12. Using the control box up and down buttons, cycle the throttle actuator back and forth ensuring that the
throttle is moving through its full range of motion and that the bolt holding the actuator is moving back and
forth within the slot in the mounting bracket without binding.
13. Check that the grey plastic nut on the end of the throttle is tight. It must be tight enough to hold the cable
sleeve from moving but still allow the throttle cable to cycle back and forth.
FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR 3. ASSEMBLY
