144 8210-00020 R1

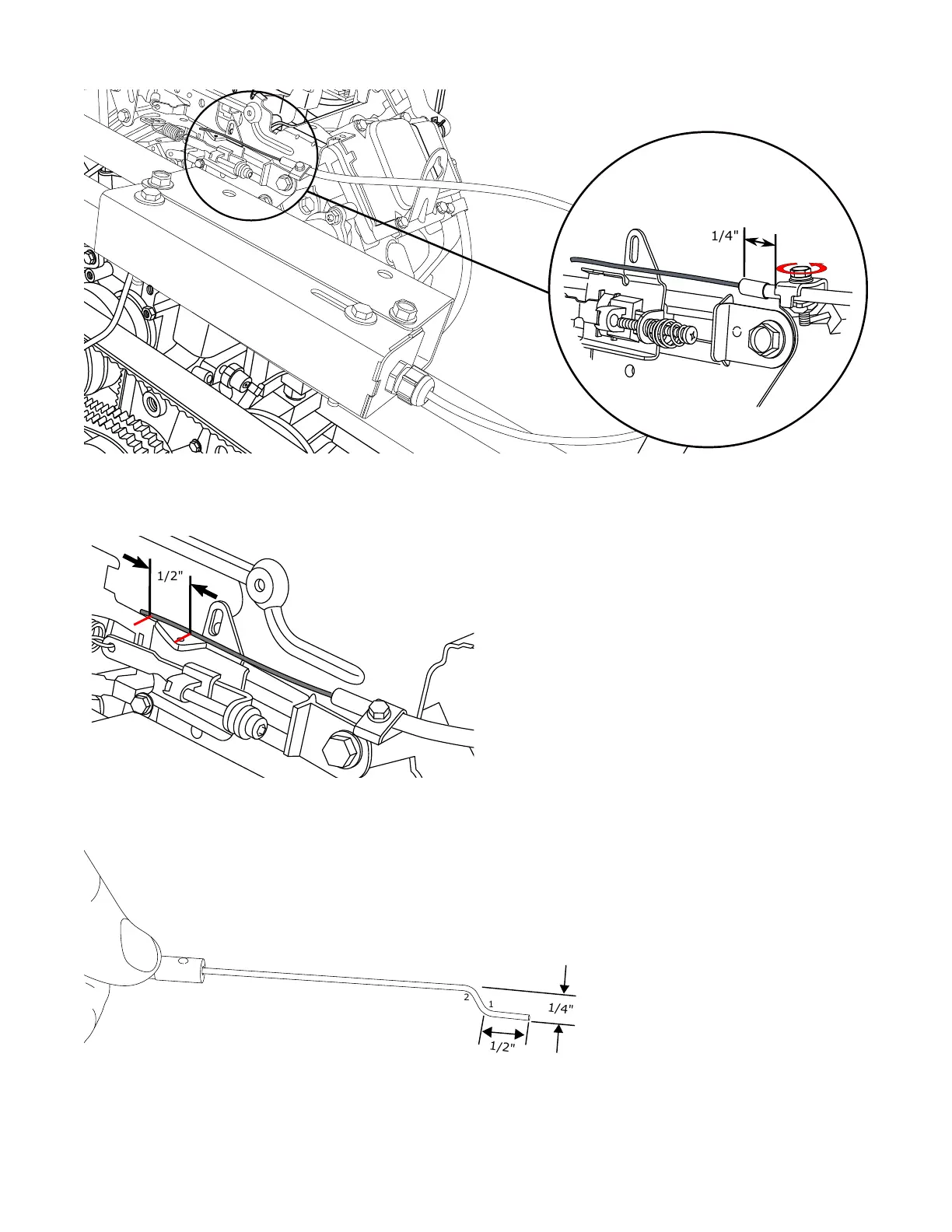

9. Position the end of the wire over the hole in the throttle bracket. Mark the wire approximately 1/2" past the
hole in the throttle bracket. Trim the excess throttle wire past your mark.
10. Make a Z bend in the end of the throttle wire. The leg of the first bend should be approximately 1/2" long
and the offset between bend 1 and 2 should be approximately 1/4".
11. Attach the wire in the throttle bracket and then position the throttle cable in the cable clamp. Ensure that
the throttle arm is still pushed all the way left (at the furthest position away from the cable clamp), then
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
