8210-00020 R1 17

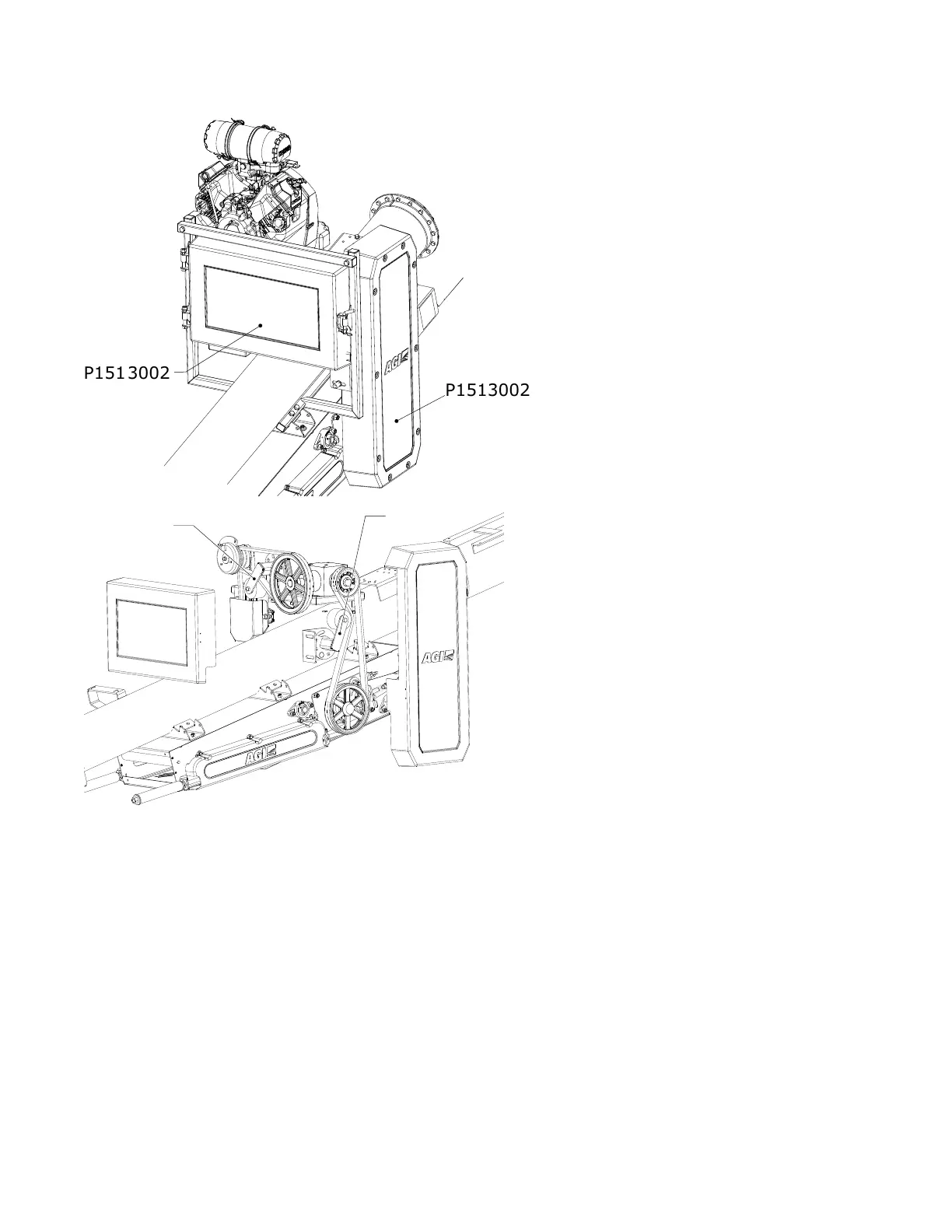

Figure 6. Gas Drive Safety Decal Locations (Top Mount)

P1513002

P151

3002

P1513008

FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR 1. SAFETY
