46 8210-00020 R1

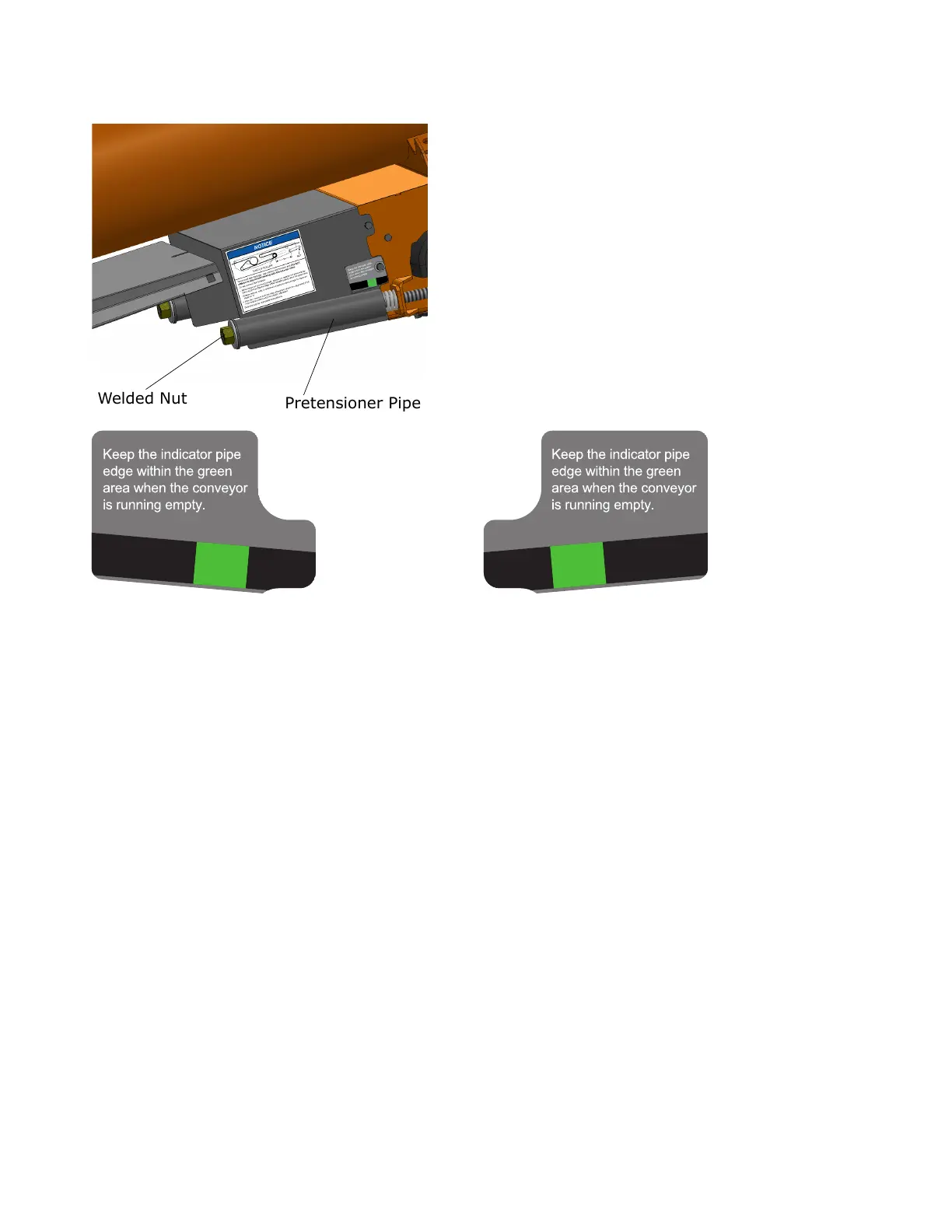

Figure 34. Setting the Belt Tension

Welded Nut

Pretensioner Pipe

The belt will require final tension and alignment after the conveyor is fully assembled. Refer to the conveyor

operation manual for complete instructions.

3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
