72 8210-00020 R1

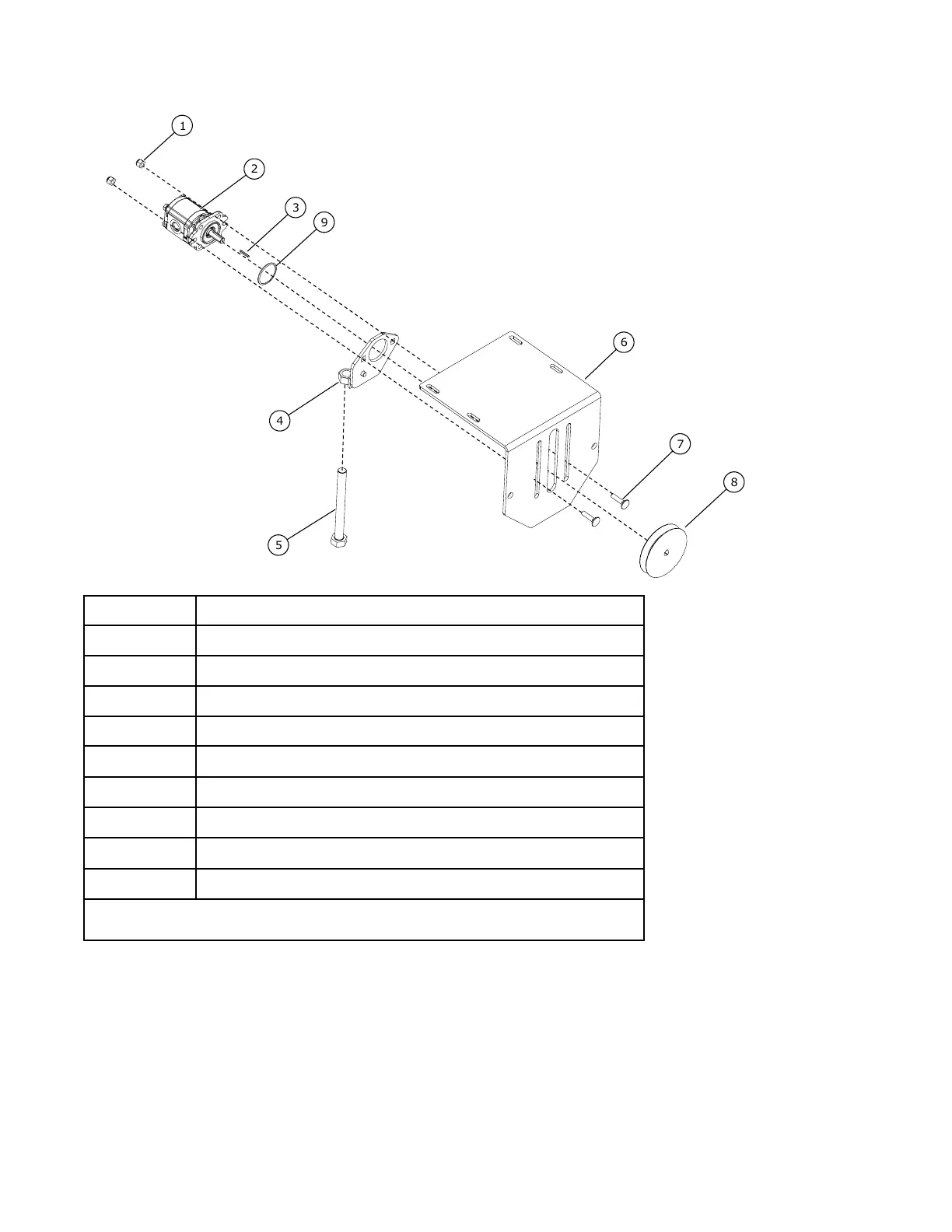

Installing the Hydraulic Pump
Item
Description
1
3/8" Locknut
2
Hydraulic Pump
3
Hydraulic Pump Key (comes with pump)
4
Hydraulic Pump Mount Plate
5
3/4" X 7" Tap Bolt (GR 5)
6
Hydraulic Pump Base Plate
7
3/8" X 1–1/2" Carriage Bolt (GR 5)
8
4–1/2" X 1/2" Pulley
9
Hydraulic Pump Steel Plate (comes with pump)*
*attach to the plastic shaft holder
Hardware Kit: HRDW-15–101
Note
• The tap bolt (5) is used to tension the hydraulic pump belt after the clutch assembly is installed.
• The hydraulic pump steel plate (9) keeps the hydraulic pump centered in the mount.
3. ASSEMBLY FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR
