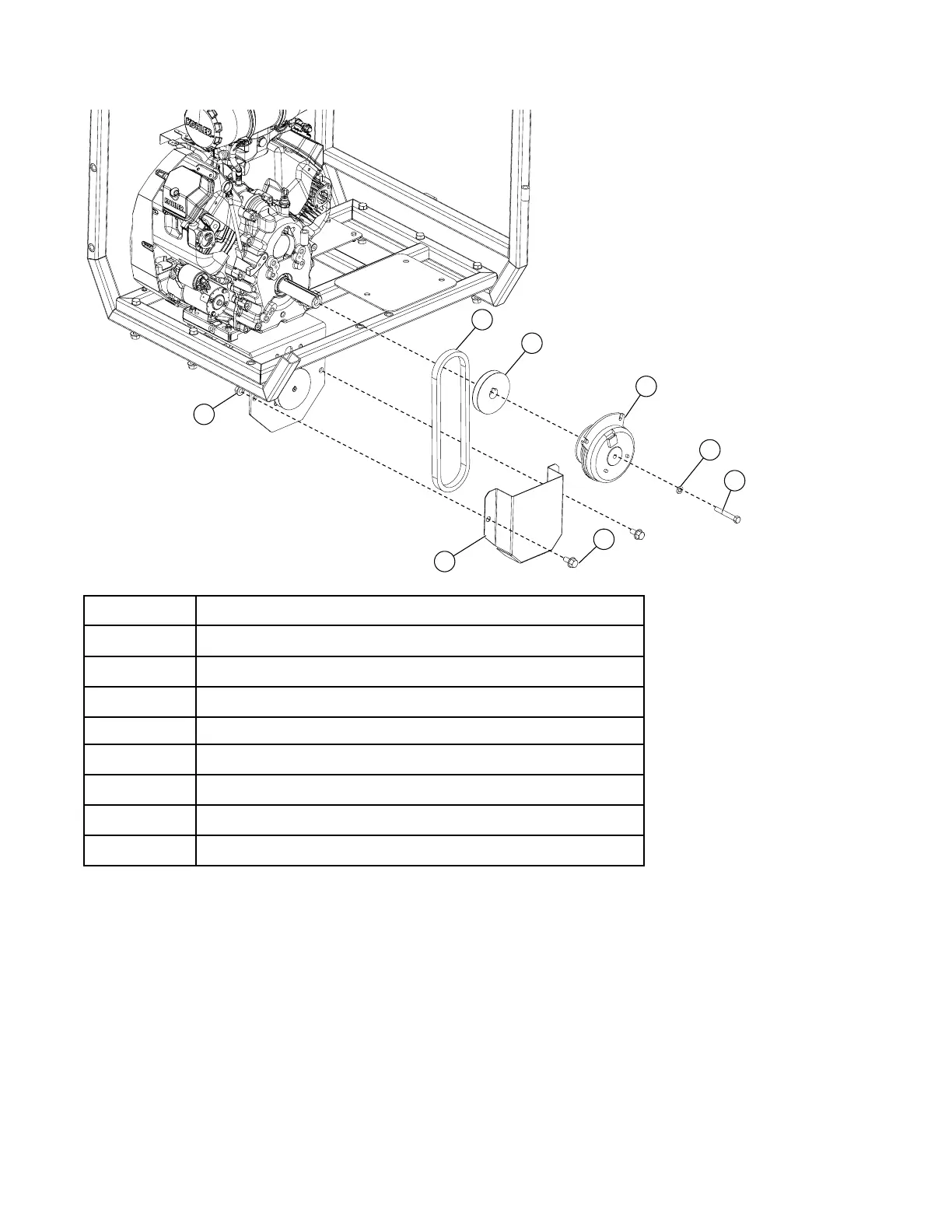

Installing the Clutch and Hydraulic Pump Guard
Item
Description
1
1/2" Flange Nut
2
Hydraulic Pump Belt (BX31)
3
4-1/2" x 1-1/8" PulleyPulley
4
Clutch
5
7/16" Lock Washer
6
7/16" X 3" Hex Bolt
7
1/2" X 1" Hex Flange Bolt
8
Hydraulic Pump Guard
Hardware Kit: PARTK-15-44
Note
Align the pulleys using a straight edge before installing the belt. Tighten the set screws after the pulleys
are aligned.
1
2
8
3
4
7
5
6
FIELD LOADER S-DRIVE – PORTABLE GRAIN BELT CONVEYOR 3. ASSEMBLY
