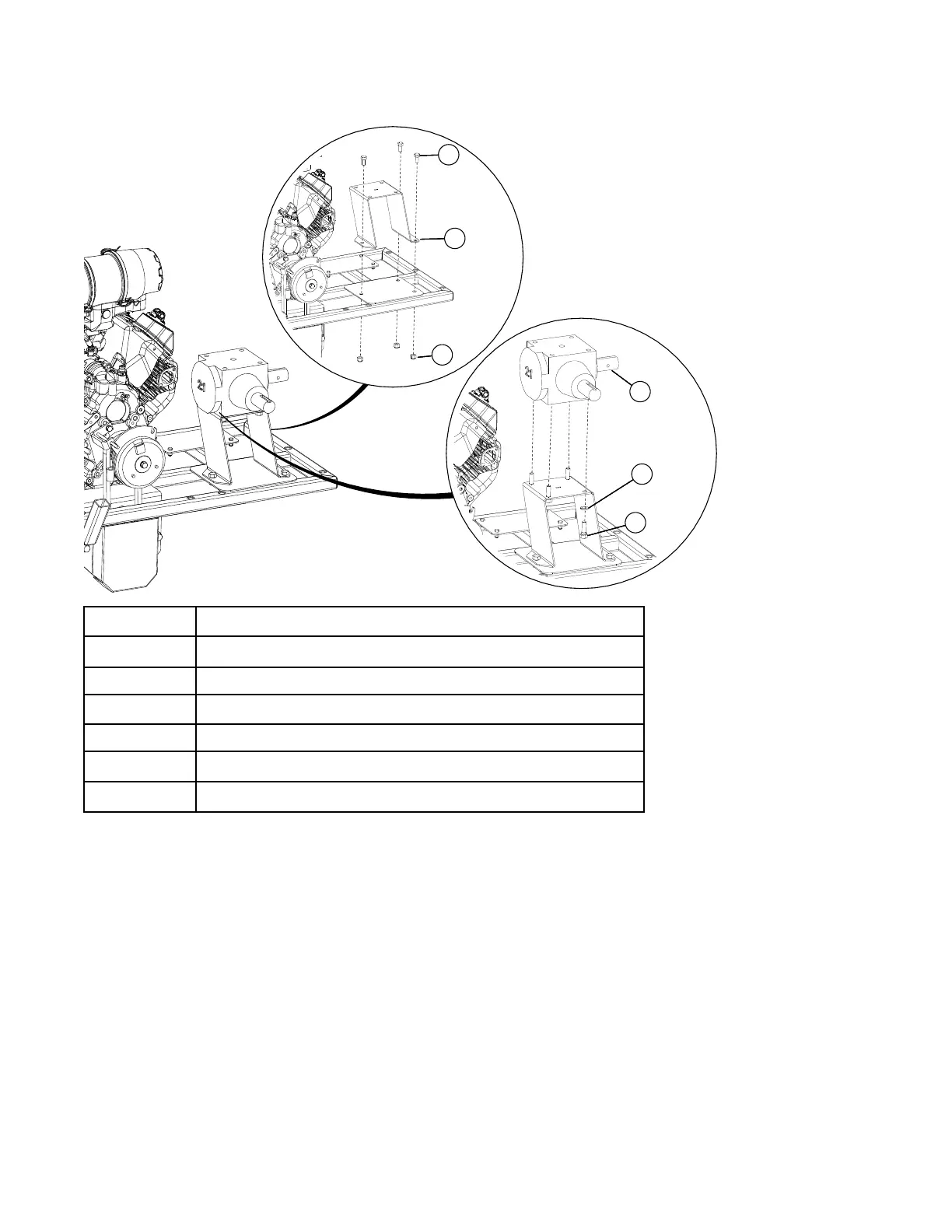

Installing the Gearbox
Item
Description
1
1/2" X 1" Hex Bolt (GR 8)
2
Gearbox Mount Plate
3
1/2" Lock Nut
4
Gearbox
5
1/2" Lock Washer
6
1/2" X 1–1/2" Hex Bolt (GR 8)
Hardware Kit: HRDW-15-112
Note
Leftover hardware from this kit is used to install the torsion idler on top of the torsion idler mount.
1
2
3
6
5
4
